Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount Locking Female Connector, 240/415 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount Locking Female Connector, 240/415 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount Locking Female Connector, 240/415 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount Locking Female Connector, 240/415 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Share Share Print Print
Hubbell

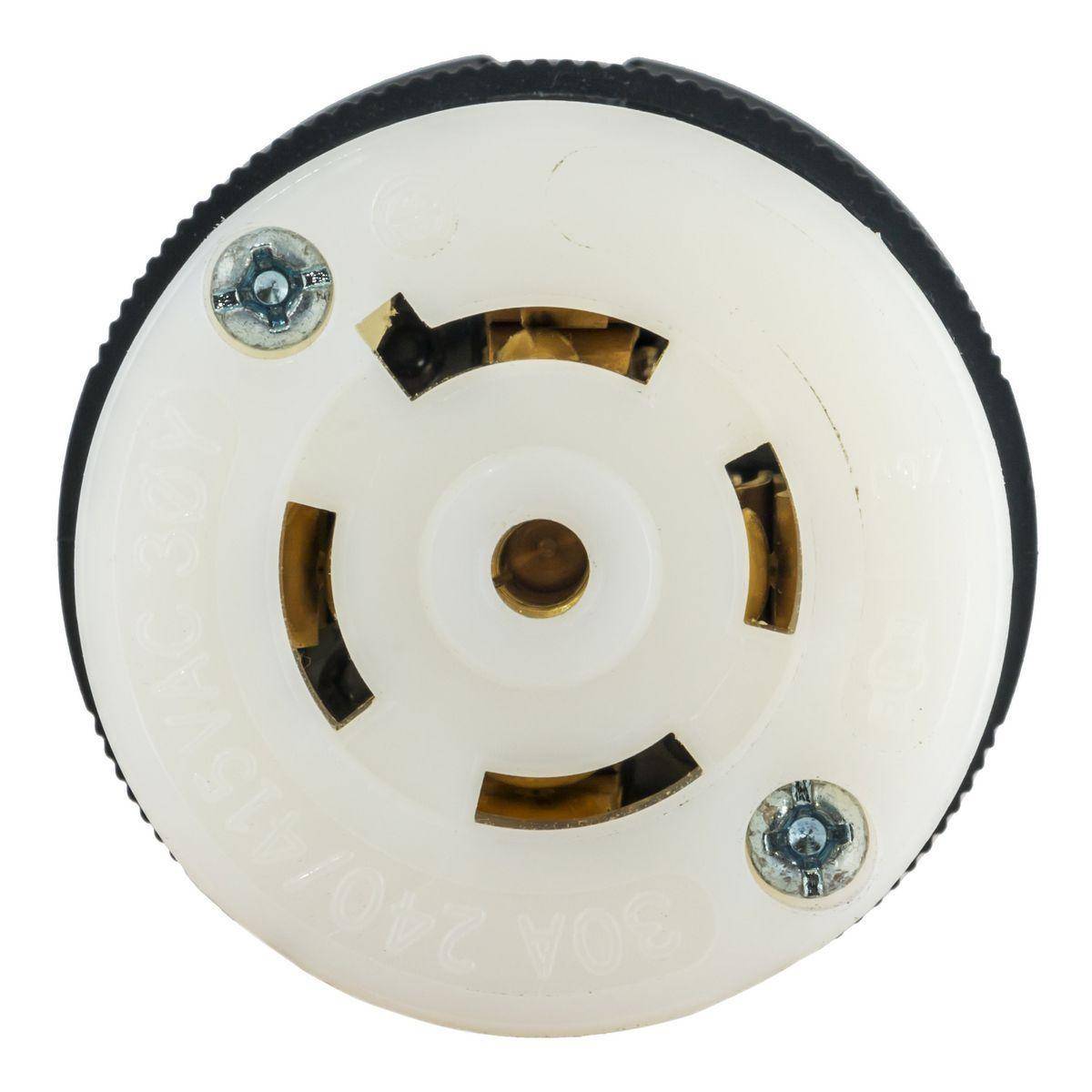

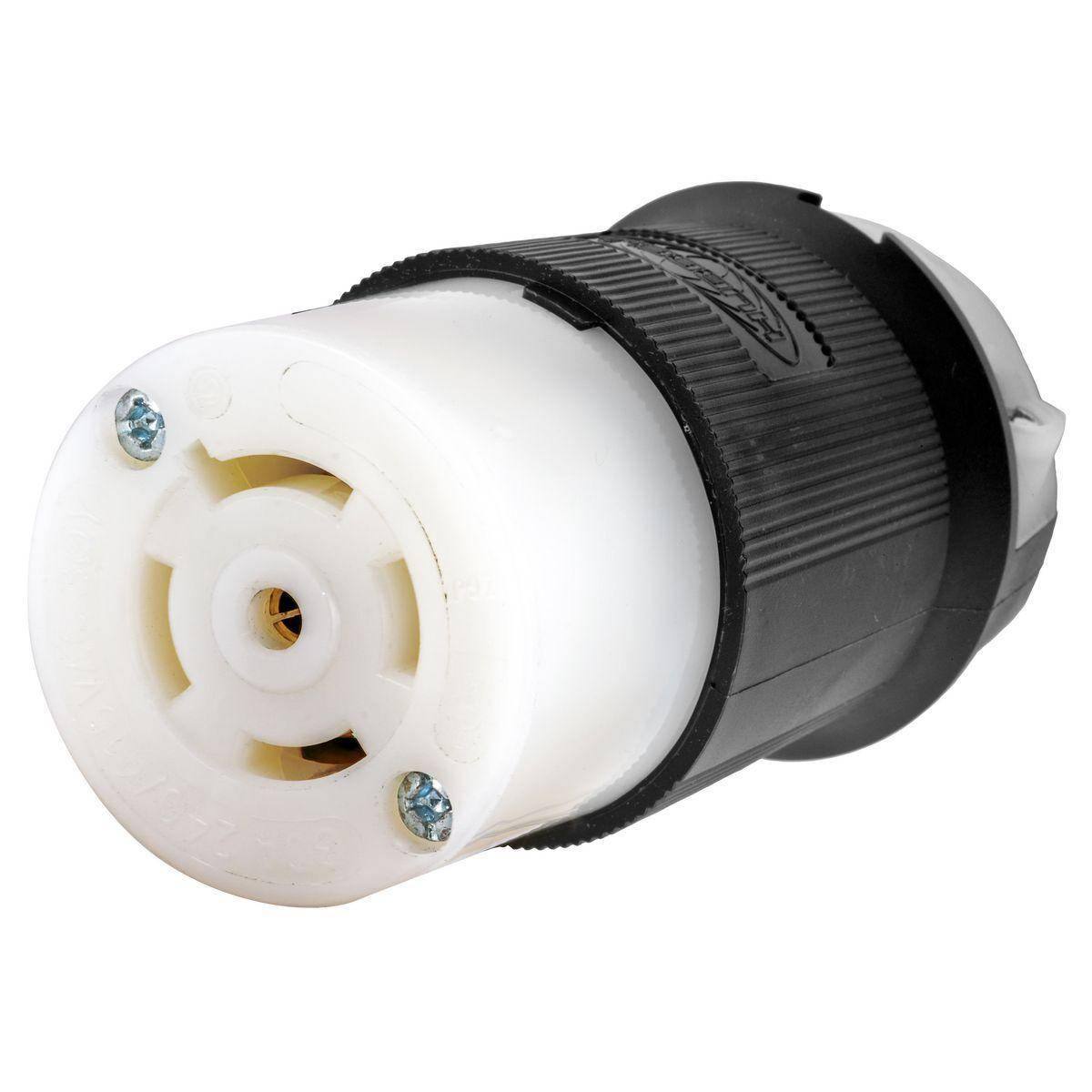

Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount Locking Female Connector, 240/415 VAC, 30 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® HBL2803. This heavy-duty, insulated watertight connector is designed for 3-phase, 5-wire grounding applications, providing durability and performance you can trust in industrial settings.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Safety-Shroud® Locking Female Connector, 3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount, 240/415 VAC, 30 A, 4 Pole, 5 Wires, L26-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.21 x 2.21 x 3.86 in

MFG #: HBL2803

EECO #: HUHBL2803

Brand: Wiring Device-Kellems
UPC #: 783585580333
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121421
Material
Nylon
Application
Dry Location and Indoor Applications
Terminal Type
Screw
Voltage Rating
240/415
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase 5-Wire Grounding Heavy Duty Insulated Watertight Standard Cord Mount
Grade
Industrial
Dimensions
2.21 x 2.21 x 3.86
Amperage Rating
30
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral, dust shield protects wiring chamber from dust or contaminants
