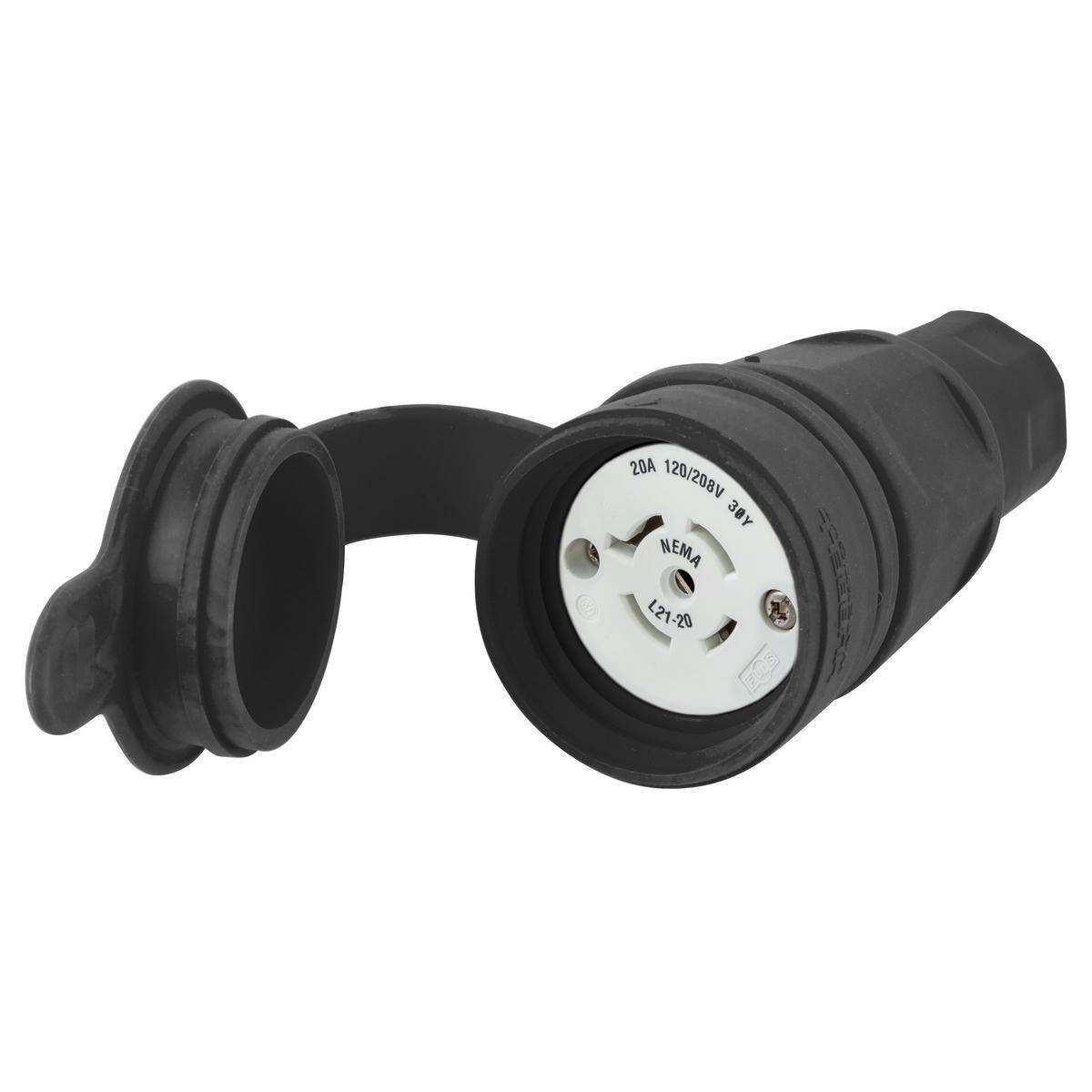

Wiring Device-Kellems HBL27W81BK 3-Phase Dusttight Insulated Isolated Ground Standard Watertight Cord Mount Locking Female Connector, 120Y/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL27W81BK 3-Phase Dusttight Insulated Isolated Ground Standard Watertight Cord Mount Locking Female Connector, 120Y/208 VAC, 20 A, 4 Poles, 5 Wires, Black

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems HBL27W81BK 3-Phase Dusttight Insulated Isolated Ground Locking Female Connector. Designed for commercial and industrial applications, this watertight connector offers superior protection and performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL27W81BK, Locking Female Connector, 3-Phase Dusttight Insulated Isolated Ground Standard Watertight Cord Mount, 120Y/208 VAC, 20 A, 4 Pole, 5 Wires, L21-20R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Black, 2.51 x 2.51 x 5.69 in Dimensions

MFG #: HBL27W81BK

EECO #: HUHBL27W81BK

Brand: Wiring Device-Kellems
UPC #: 783585131849
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Elastomer/Composite
Terminal Type
Screw
Voltage Rating
120Y/208
Number of Wires
5
Enclosure
NEMA 4/4X/6/6P/12/IP65/IP66/IP67
Temperature Rating
-40 to 75
Type
3-Phase Dusttight Insulated Isolated Ground Standard Watertight Cord Mount
Grade
Commercial/Industrial
Dimensions
2.51 x 2.51 x 5.69
Amperage Rating
20
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points
IDW_DOCUMENT_019c629ce81e0fd4fe8f9a7692fb51ec4e6a192d18d1da48b739a131b5a74d0a
IDW_DOCUMENT_1d744cc6808fa2a48c3ced9b50f594a02a45e851e631b3821b1fe09f111accad
IDW_DOCUMENT_4b55cd4e3ee701ab5ddc7101033eb13fd7881218c5f0c4d4142a554baebb0fe9
Wiring_Device_Kellems_HBL27W08_Catalog
