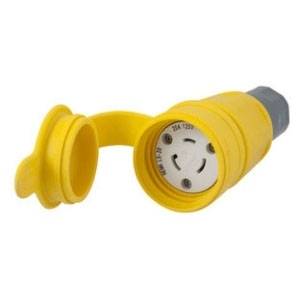

Print125 V 20 A L5-20R, Hubbell Wiring Device-Kellems HBL27W47 Twist-Lock® Locking Device Connector
125 V, 20 A, 2-Pole, 3-Wire, NEMA L5-20R, 0.375 to 0.875" Cord, Yellow, Thermoplastic Elastomer, Grounding, Polarized, Locking Device Connector
Locking Device Connector; Type Polarized; Constructional Feature Corrosion Resistant, Water Tight; Configuration L5-20R; Voltage Rating 125 Volt; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Thermoplastic Elastomer; Color Yellow; Cord Size 0.375 to 0.875 Inch; Approval UL 498, CSA C22.2; Enclosure Type IP65/66/67; Power Rating 1 HP; Temperature Rating -40 to 60 Deg C; Overall Dimension 2.51 Inch Length x 2.51 Inch Width x 5.69 Inch Height; Material Nickel Plated Brass (Contact), White Nylon (Core/Contact Carrier), Black Elastomer (Bushing and Cone Seal), Nylon (Gotcha Ring), PBT (Strain Relief Nut), Nickel Plated Brass (Terminal Screw), Clear Polycarbonate (Terminal Retainer), Stainless Steel (Hardware); Applicable Standard ANSI
EECO #: HUHBL27W47
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $62.30 |
|
Slqt |
|
| 1 | $62.30 |
|
Stpk |
|
| 1 | $62.30 |
|
Unit |
|
| 1 | $62.30 |
