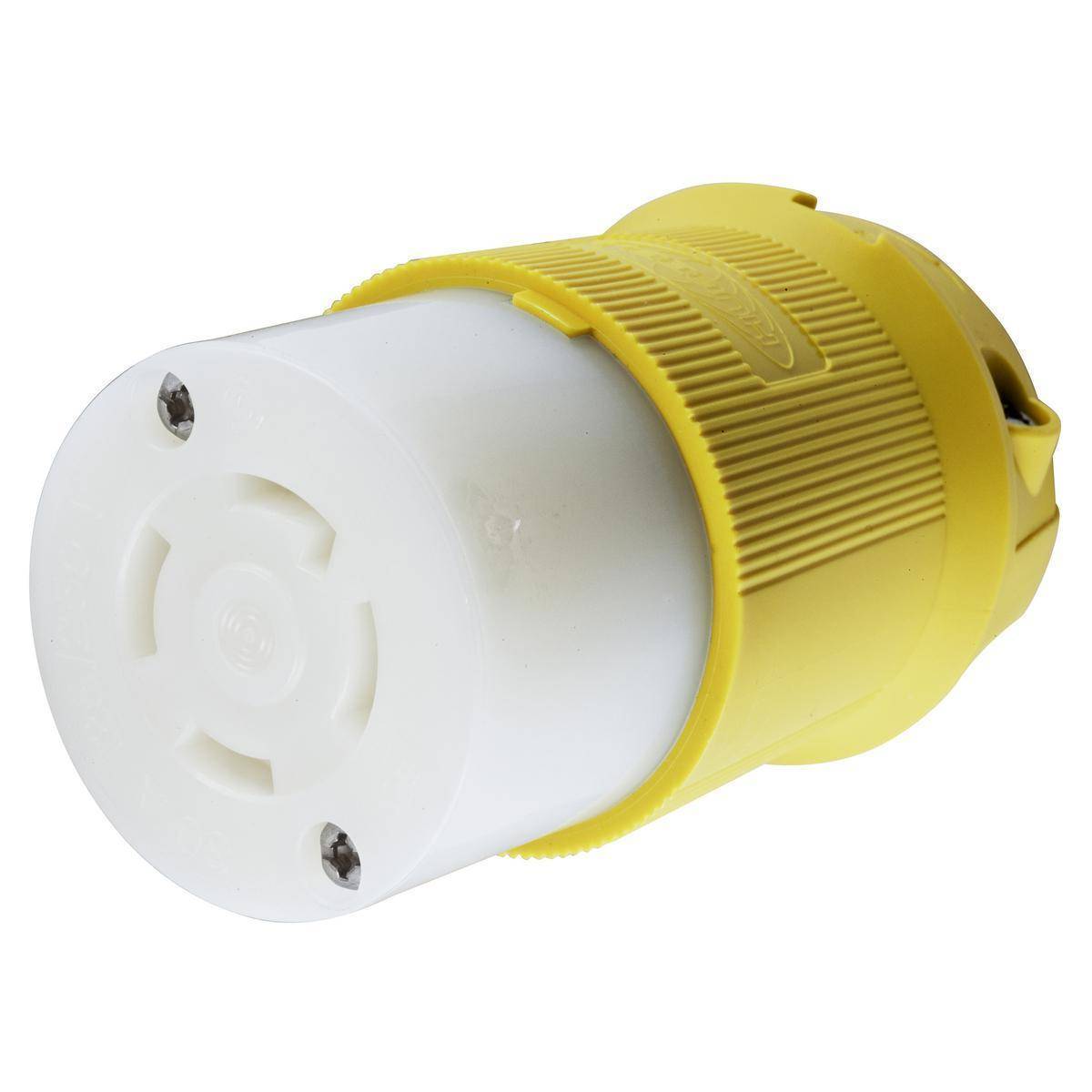

Wiring Device-Kellems HBL27CM13 Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant Female Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL27CM13 Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant Female Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Short Description

Ensure reliable connections with the Wiring Device-Kellems HBL27CM13 Heavy Duty Isolated Grounding Female Connector. Designed for durability and corrosion resistance, this standard-sized cord mount is perfect for industrial and marine applications. Rated for 125/250 VAC and 30 A, it guarantees performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL27CM13, Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R/WD1/WD5 NEMA Rating, Industrial/Marine Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 2.33 x 2.33 x 3.86 in Dimensions

MFG #: HBL27CM13

EECO #: HUHBL27CM13

Brand: Wiring Device-Kellems
UPC #: 783585039565
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant
Grade
Industrial/Marine
Dimensions
2.33 x 2.33 x 3.86
Horsepower
2
Amperage Rating
30
Features
  • Nickel plated contacts and stainless steel screws provide maximum corrosion resistance
  • Corrosion resistant
  • Cord mounted
  • Insulated body
  • Indoor dry unless protected by additional means
  • 12 to 8 AWG conductor size
  • Standard size product
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
