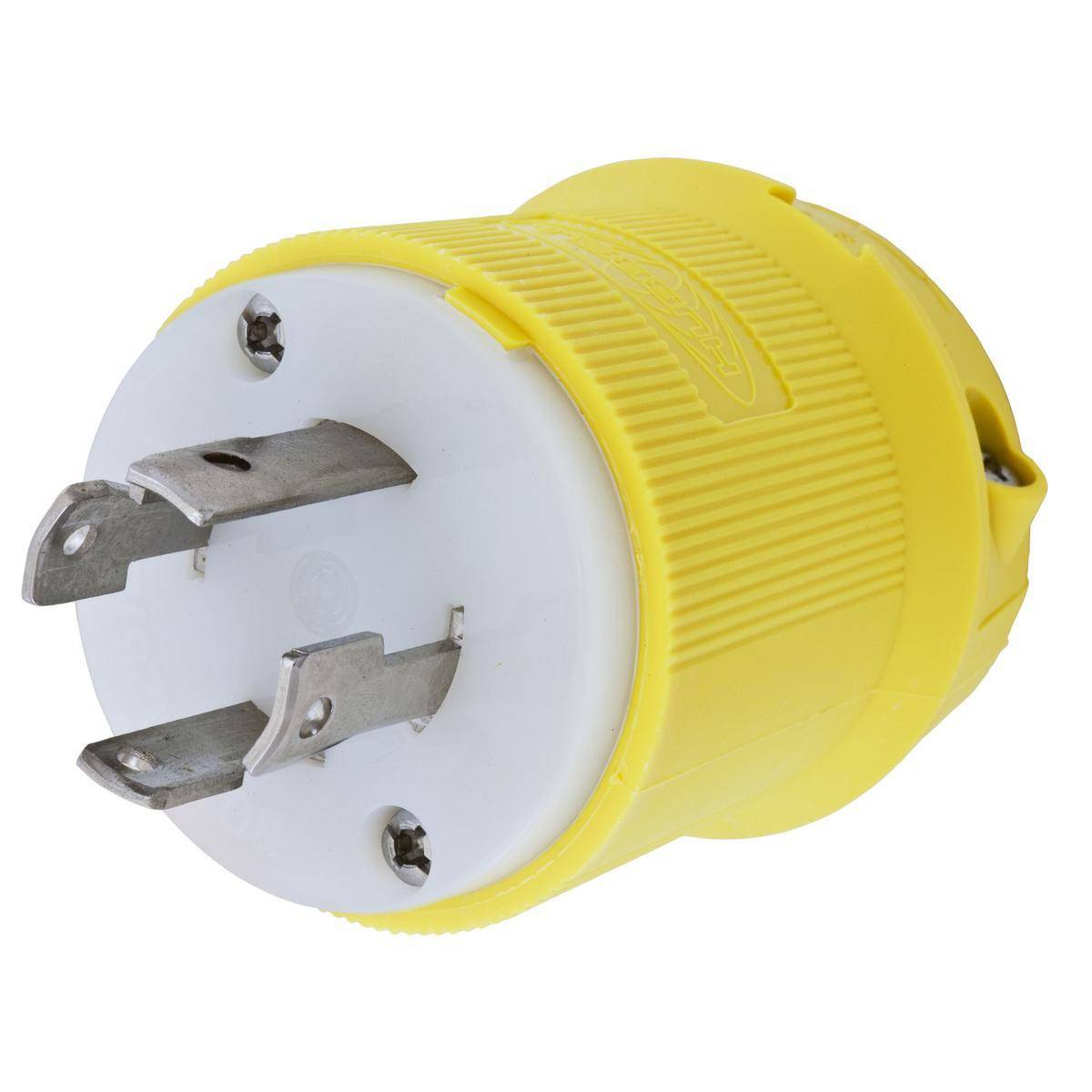

Wiring Device-Kellems HBL27CM11 1-Phase Corrosion Resistant Grounding Cord Mount Locking Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL27CM11 1-Phase Corrosion Resistant Grounding Cord Mount Locking Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL27CM11 Locking Plug. Designed for durability, this corrosion-resistant grounding cord mount plug is perfect for marine applications, handling up to 30 A at 125/250 VAC. With its robust construction and secure locking mechanism, you can trust this plug to perform in any environment.Enhanced by AI

Wiring Device-Kellems, HBL27CM11, Locking Plug, 1-Phase Corrosion Resistant Grounding Cord Mount, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30P NEMA Rating, Marine Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.33 x 2.33 x 2.75 in Dimensions

MFG #: HBL27CM11

EECO #: HUHBL27CM11

Brand: Wiring Device-Kellems
UPC #: 783585039558
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Corrosion Resistant Grounding Cord Mount
Grade
Marine
Dimensions
2.33 x 2.33 x 2.75
Horsepower
2
Amperage Rating
30
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Stainless steel cord clamp/body holding screws
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • 2 hp line to line, 1 hp line to neutral
  • Natural white nylon blade holder, nylon cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
