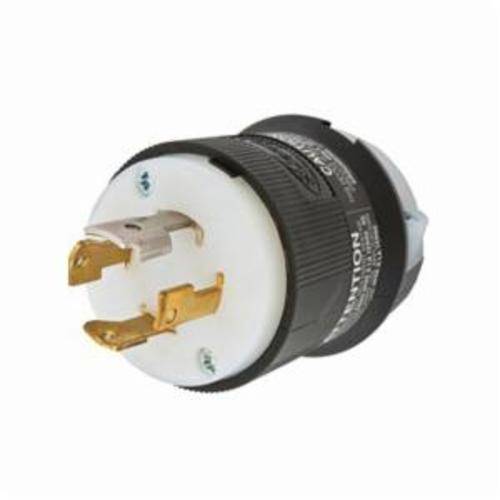

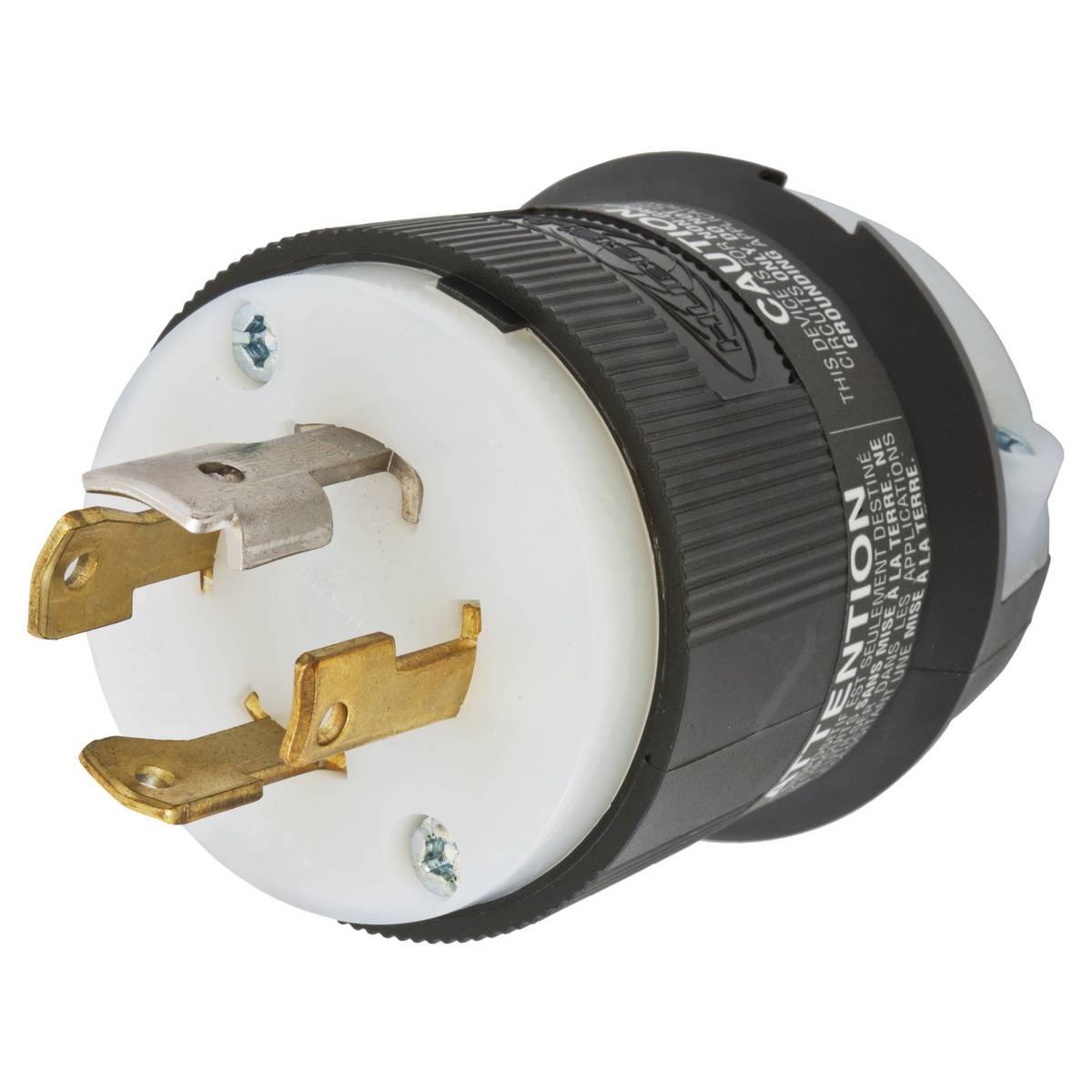

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2771 3-Phase Extra Heavy Duty Non-Grounding Cord Mount Locking Plug, 347/600 VAC, 30 A, 4 Poles, 4 Wires, Black/White

Short Description

Experience unparalleled durability and safety with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2771 Locking Plug. Designed for heavy-duty applications, this 3-phase plug ensures reliable performance in demanding environments.

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3-Phase Extra Heavy Duty Non-Grounding Cord Mount, 347/600 VAC, 30 A, 4 Pole, 4 Wires, L20- 30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 2.75 in

MFG #: HBL2771

EECO #: HUHBL2771

Brand: Wiring Device-Kellems
UPC #: 783585039510
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Power Connection Applications
Terminal Type
Screw
Voltage Rating
347/600
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Extra Heavy Duty Non-Grounding Cord Mount
Grade
Industrial
Dimensions
2.33 x 2.33 x 2.75
Amperage Rating
30
Features
  • Withstands 2000 VAC dielectric voltage
  • 10 to 8 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498
  • Certified for current interrupting at full rated current interrupting
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal screw and ground screw
  • #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • Steel nickel plated terminal clamp
  • Superior cord grip design protects terminations from excess strain
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Clear, funnel shaped wire entry for ease of termination
  • Indoor dry unless protected by additional means
