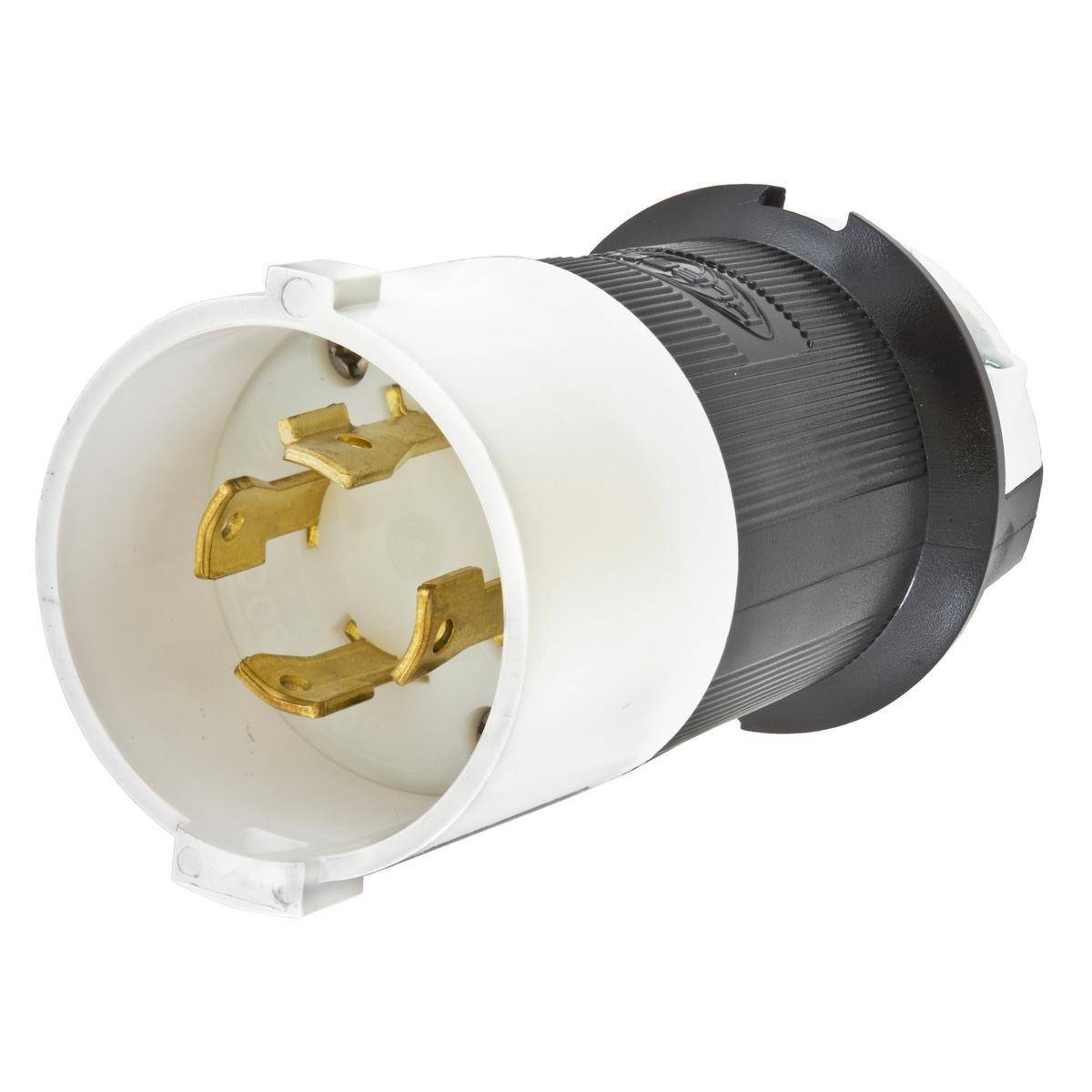

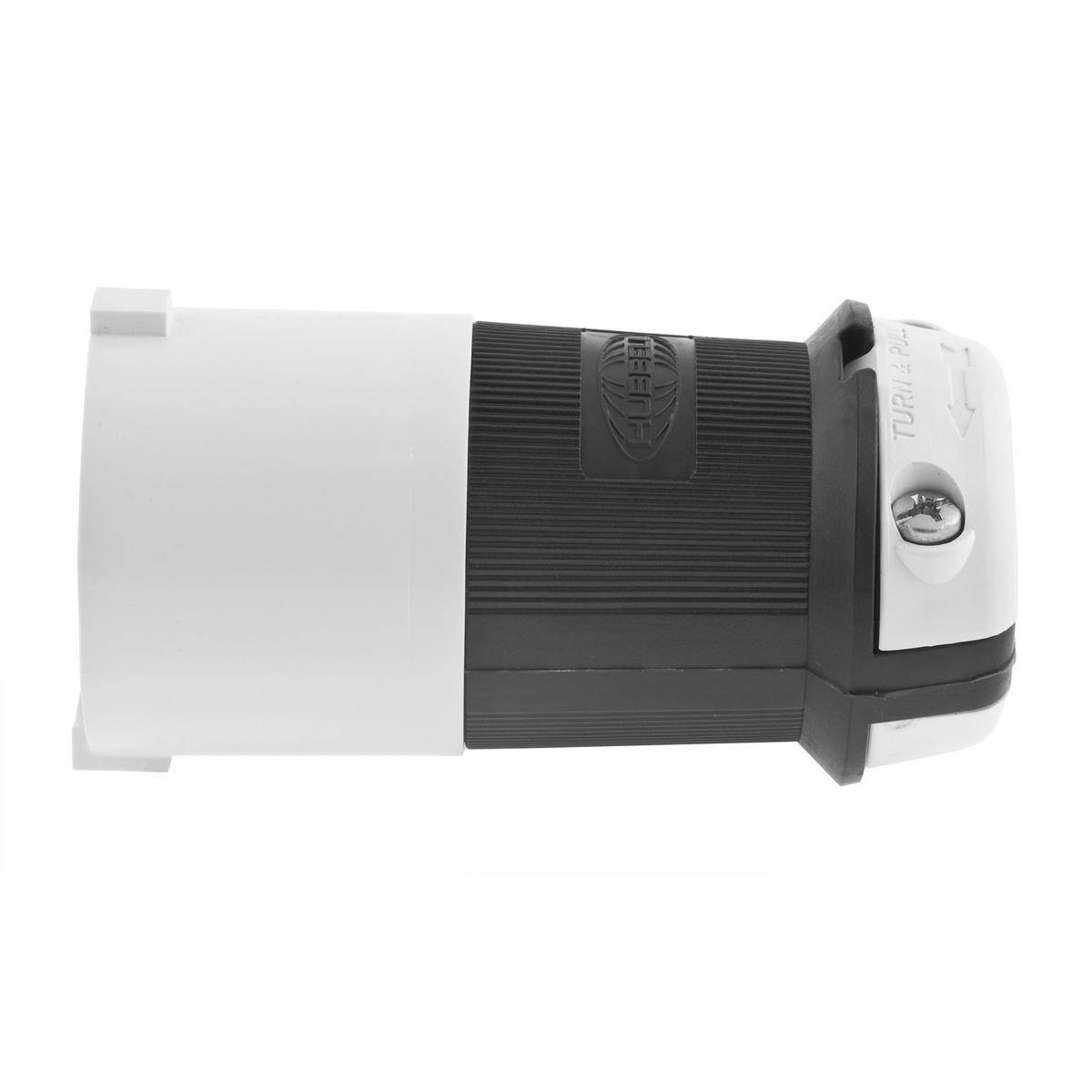

Wiring Device-Kellems HBL2741S 3-Phase Grounding Standard Cord Mount Locking Plug, 600 VAC, 30 A, 3 Poles, 4 Wires, Black/White

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2741S 3-Phase Grounding Locking Plug. Designed for industrial use, this robust plug supports up to 600 VAC and 30 A, making it ideal for demanding environments. Its durable construction and secure locking mechanism provide peace of mind in any application.Enhanced by AI

Wiring Device-Kellems, HBL2741S, Locking Plug, 3-Phase Grounding Standard Cord Mount, 600 VAC, 30 A, 3 Pole, 4 Wires, L17-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 4.21 in Dimensions

MFG #: HBL2741S

EECO #: HUHBL2741S

Brand: Wiring Device-Kellems
UPC #: 783585234946
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
600
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Grounding Standard Cord Mount
Grade
Industrial
Dimensions
2.33 x 2.33 x 4.21
Amperage Rating
30
Features
  • Impact resistant shroud protects blades against bending and breaking
  • Stainless steel cord clamp/body holding screws
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Natural white nylon blade holder and cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
