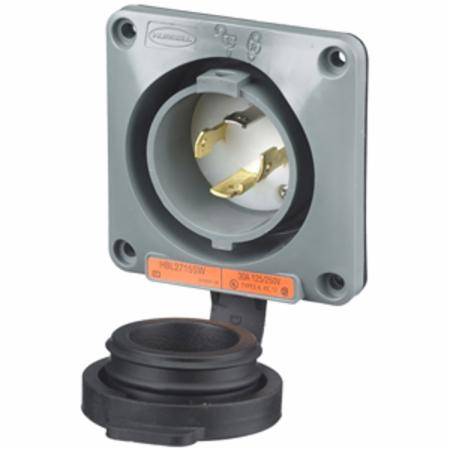

125/250 VAC 30 A L14-30P, Hubbell Incorporated HBL2715SW Twist-Lock®, Safety-Shroud® Locking Device Flanged Inlet

Name: 125/250 VAC 30 A L14-30P, Hubbell Incorporated HBL2715SW Twist-Lock®, Safety-Shroud® Locking Device Flanged Inlet
Brand: Hubbell
SKU: HUHBL2715SW
Availability: InStock

Short Description

125/250 VAC, 30 A, 3-Pole, 4-Wire, L14-30P, Grounding, Gray, PBT, Polarized, Locking Device Flanged Inlet

Locking Device Flanged Inlet; Type Polarized; Constructional Feature Impact/Moisture Resistant, Water Tight; Configuration L14-30P; Voltage Rating 125/250 Volt AC; Current Rating 30 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material PBT; Color Gray; Approval UL 498, CSA C22.2; Overall Dimension 3.75 Inch Width x 2.44 Inch Depth x 3.75 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating 4/4X/12/IP66; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596

MFG #: HBL2715SW

EECO #: HUHBL2715SW HUHBL2715SW

Brand: Wiring Device-Kellems

UPC #: 783585231808

Attributes

Features

Documents

Product Information

Attributes

Color

Gray

UNSPSC

39121400

Approval

UL 498, CSA C22.2

Material

PBT

Ground Type

Grounding

Current Rating

30 Amp

Voltage Rating

125/250 Volt AC

Number Of Poles

Number of Wires

Type

Polarized Flanged Inlet

Configuration

L14-30P

Constructional Feature

Impact/Moisture Resistant, Water Tight

Features

One-Piece, Engineered Thermoplastic Housing is Impact Resistant for Heavy-Duty Industrial Environments
Alignment Arrows and Lock and Unlock Symbols Provide a Visual Indication that Devices are Properly Connected
Closure Cap is Included for Environmental Seal When Device is Not in Use
Catalog Number and Color-Coded Voltage Rating are Easily Visible Even When in Use
