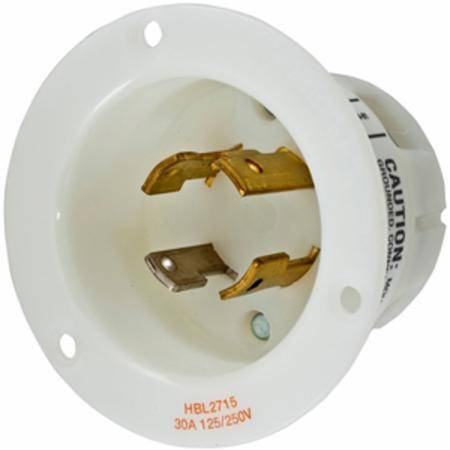

Print125/250 VAC 30 A L14-30P, Hubbell Incorporated HBL2715 Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
Short Description
125/250 VAC, 30 A, 3-Pole, 4-Wire, L14-30P, Grounding, White, Nylon, Polarized, Locking Device Flanged Inlet

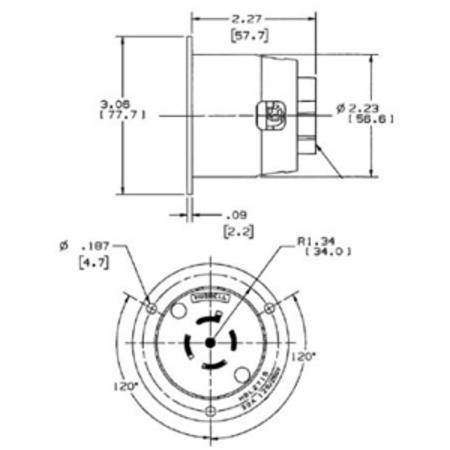

Locking Device Flanged Inlet; Type Polarized; Constructional Feature Moisture Resistant; Configuration L14-30P; Voltage Rating 125/250 Volt AC; Current Rating 30 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material Nylon; Color White; Approval UL 498, CSA C22.2; Overall Dimension 3.06 Inch Diameter x 2.27 Inch Length; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL2715
EECO #: HUHBL2715
Brand:
Wiring Device-Kellems
UPC #:
783585039190
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $45.95 |
|
Slqt |
|
| 1 | $45.95 |
|
Stpk |
|
| 1 | $45.95 |
|
Unit |
|
| 1 | $45.95 |
