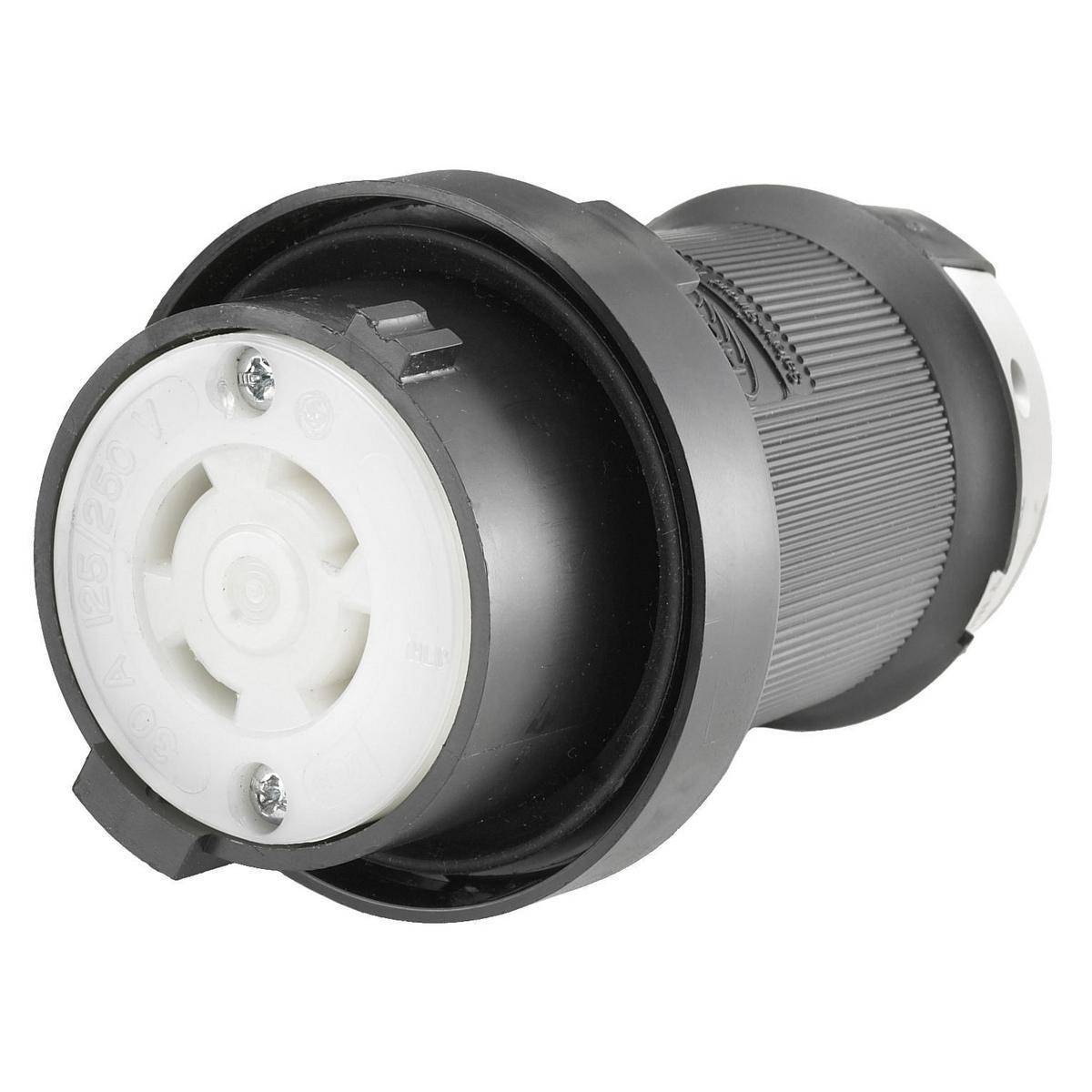

Hubbell® HBL2713SR Watertight Reverse Service Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires

Short Description

Ensure reliable electrical connections with the Hubbell® HBL2713SR Watertight Reverse Service Connector. Designed for durability and performance, this connector operates at 125/250 VAC with a 30 A capacity, featuring 3 poles and 4 wires. Ideal for challenging environments, it supports cord diameters from 0.35 to 1.15 inches and withstands temperatures from -40 to 75 degrees Celsius.Enhanced by AI

Hubbell® Reverse Service Connector, Watertight, 125/250 VAC, 30 A, 3 Pole, 4 Wires, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Polybutylene Terephthalate

MFG #: HBL2713SR

EECO #: HUHBL2713SR

Brand: Hubbell
UPC #: 783585231792
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Material
Polybutylene Terephthalate
Terminal Type
Pressure Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
NEMA 4X/IP20
Temperature Rating
-40 to 75
Type
Watertight
Grade
Industrial
Dimensions
2.94 x 2.94 x 5.5
Horsepower
2
Amperage Rating
30
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Superior cord grip design protects terminations from excess strain
  • UL type 4X environmental seal protects connection while in use
  • Clear polycarbonate terminal retainer, brass contact, #10-32 brass terminal screw cold rolled steel nickel plated terminal clamp, steel nickel plated assembly screw
  • 16 to 8 AWG terminal accommodation
  • 2000 VAC minimum withstand dielectric voltage
