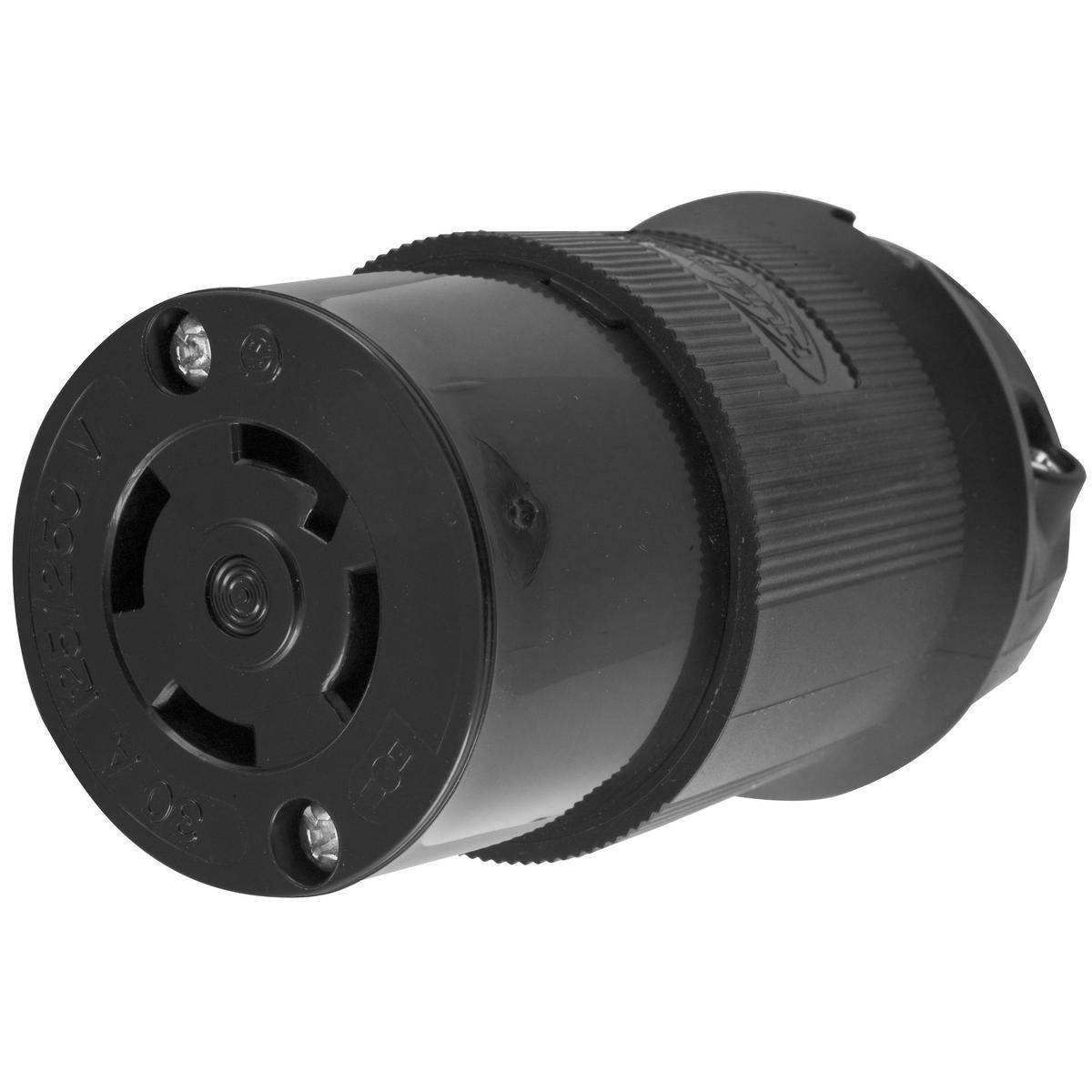

Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Share Share Print Print
Hubbell

Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black

Short Description

Ensure reliable and safe connections with the Hubbell® Twist-Lock® Insulgrip® HBL2713BK Grounding Connector. Designed for industrial applications, this durable connector supports 125/250 VAC and 30 A, making it perfect for your heavy-duty needs.Enhanced by AI

Hubbell® Twist-Lock® Insulgrip® Connector, Grounding, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, NEMA L14-30R, Grade: Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.33 in Dia x 3.88 in L

MFG #: HBL2713BK

EECO #: HUHBL2713BK

Brand: Hubbell
UPC #: 783585172330
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121400
Material
Nylon
Application
Dry Locations and Indoor Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding
Grade
Industrial
Dimensions
2.33 in Dia x 3.88 in L
Horsepower
2
Amperage Rating
30
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
