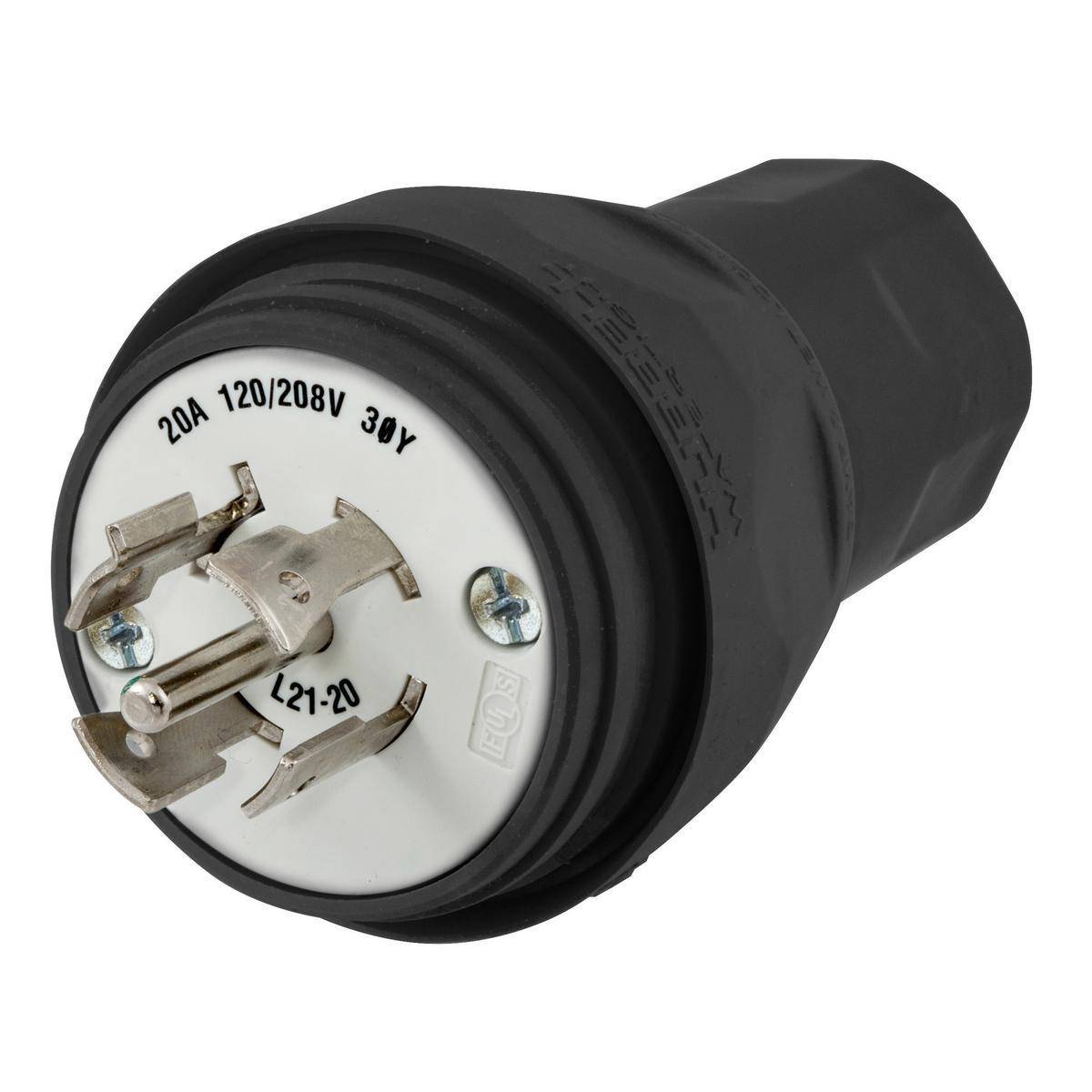

Wiring Device-Kellems HBL26W81BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL26W81BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL26W81BK Watertight Locking Plug. Designed for commercial and industrial use, this 3-phase grounding male plug offers exceptional durability and performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL26W81BK, Locking Plug, 3-Phase Grounding Male Standard Cord Mount Watertight, 120/208 VAC, 20 A, 4 Pole, 5 Wires, L21-20P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Black, 2.51 x 2.51 x 3.96 in Dimensions

MFG #: HBL26W81BK

EECO #: HUHBL26W81BK

Brand: Wiring Device-Kellems
UPC #: 783585131672
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121402
Material
Elastomer/Composite
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
NEMA 4/4X/6P/IP65/IP66/IP67
Temperature Rating
-40 to 60
Type
3-Phase Grounding Male Standard Cord Mount Watertight
Grade
Commercial/Industrial
Dimensions
2.51 x 2.51 x 3.96
Amperage Rating
20
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water and dust tight housing
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
