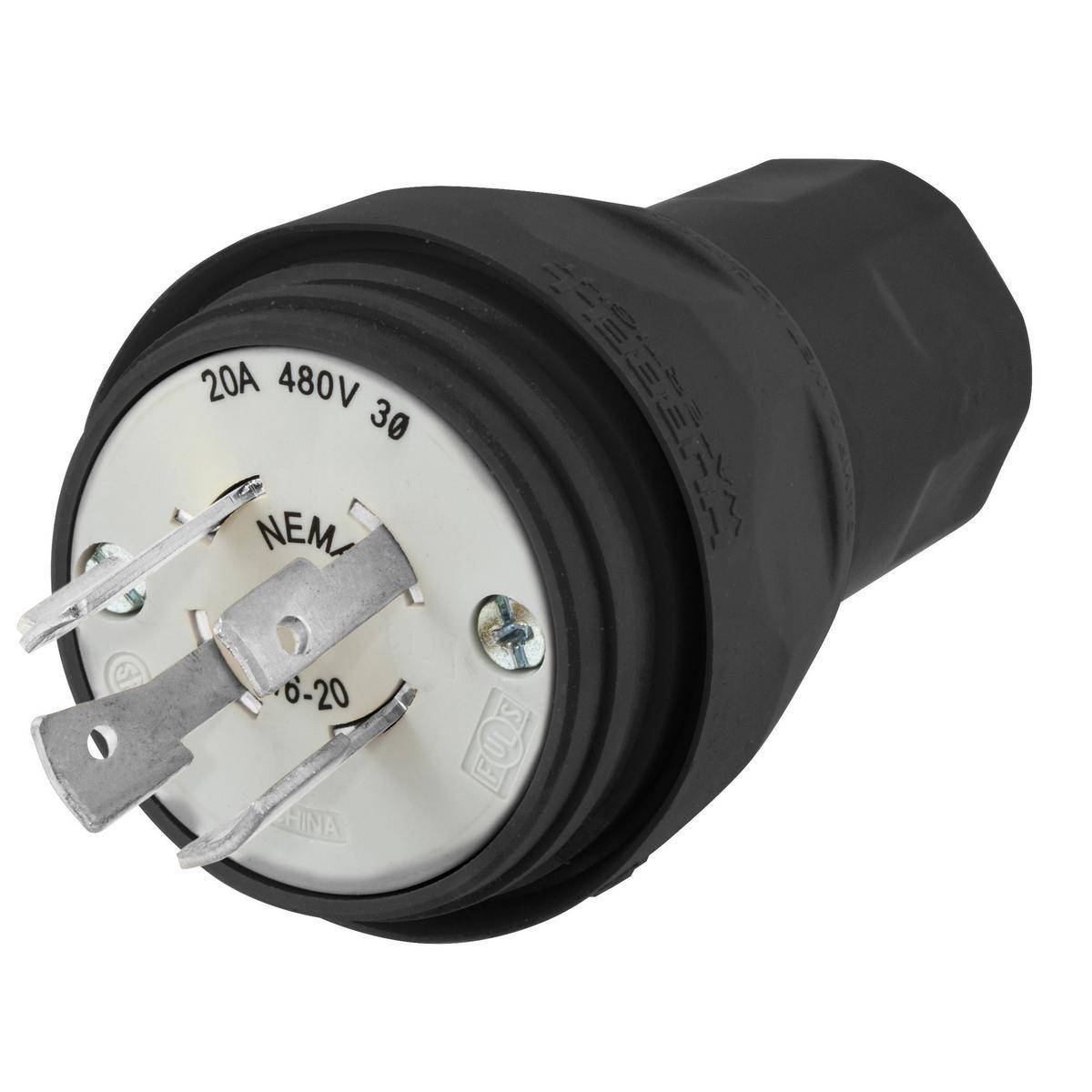

Wiring Device-Kellems HBL26W76BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 480 VAC, 20 A, 3 Poles, 4 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL26W76BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 480 VAC, 20 A, 3 Poles, 4 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL26W76BK Watertight Locking Plug. Designed for commercial and industrial use, this 3-phase grounding male plug features a durable, watertight enclosure, making it perfect for harsh environments. With a 480 VAC rating and compatibility with various cord sizes, it's built to deliver performance and safety where you need it most.Enhanced by AI

Wiring Device-Kellems, HBL26W76BK, Locking Plug, 3-Phase Grounding Male Standard Cord Mount Watertight, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Composite, Black, 2.51 x 2.51 x 3.96 in Dimensions

MFG #: HBL26W76BK

EECO #: HUHBL26W76BK

Brand: Wiring Device-Kellems
UPC #: 783585131658
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121402
Material
Composite
Application
Power Connection Applications
Terminal Type
Screw
Voltage Rating
480
Number of Wires
4
Enclosure
NEMA 4/4X/6P/IP65/IP66/IP67
Temperature Rating
-40 to 60
Type
3-Phase Grounding Male Standard Cord Mount Watertight
Grade
Commercial/Industrial
Dimensions
2.51 x 2.51 x 3.96
Horsepower
5
Amperage Rating
20
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water and dust tight housing
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
IDW_DOCUMENT_edf4f89d9e9bd7bcc95850410e44d139915ed7ffbbdb6bfa0f0a6f2fb8b72b54
IDW_DOCUMENT_cb20c8ad5ab46075beabaede2a3a82e2813c750c63ac5fcd6c70c17efbf3c17d
IDW_DOCUMENT_fe7e497a585c919060c575af7327bf7a2ffee77aa6ff4c5d5cbe18622f3968a7
Wiring_Device_Kellems_HBL26W09_Catalog
