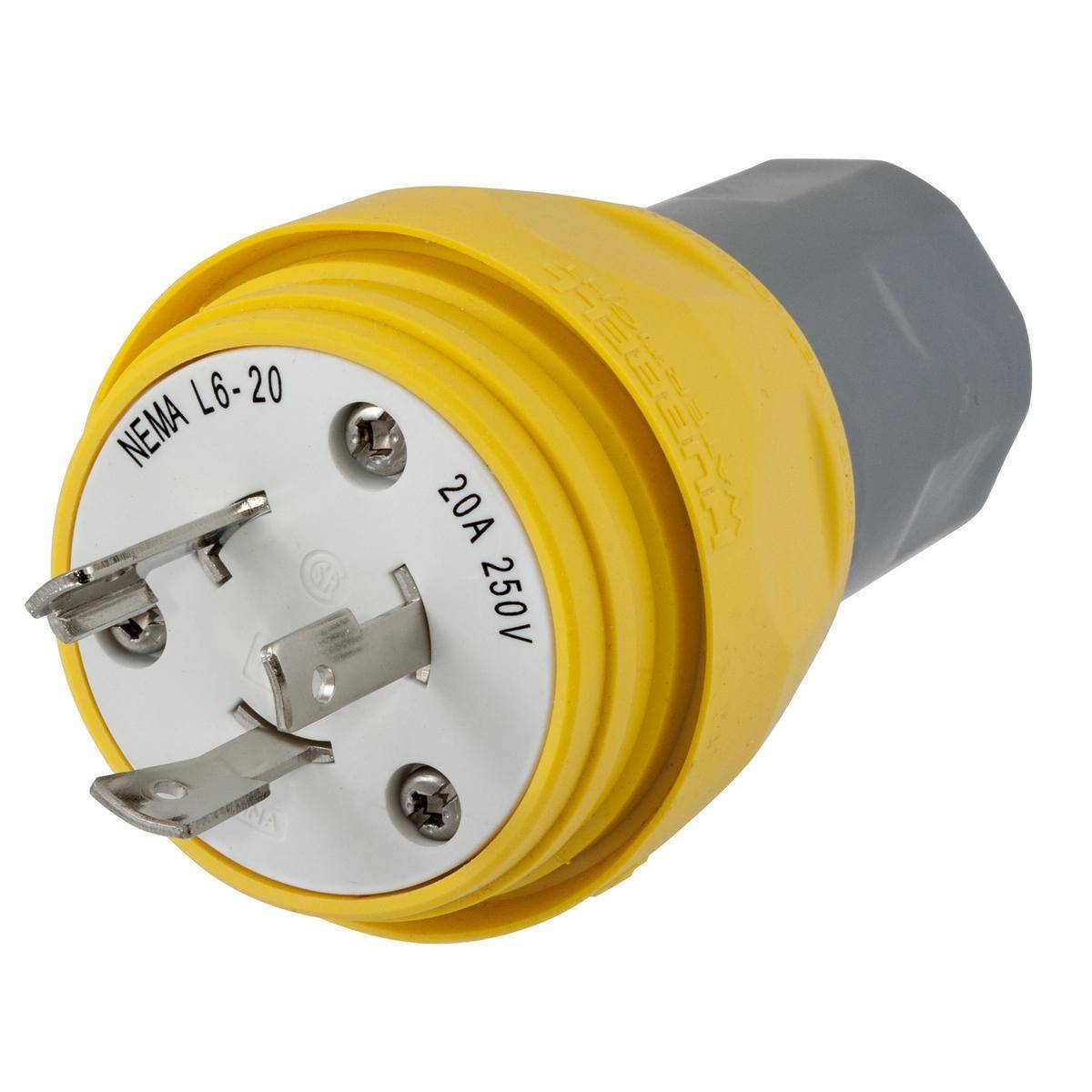

Wiring Device-Kellems Twist-Lock® HBL26W48 Non-Shrouded Watertight Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® HBL26W48 Non-Shrouded Watertight Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure a secure and watertight connection with the Wiring Device-Kellems Twist-Lock® HBL26W48 Locking Plug. Designed for industrial use, this durable plug operates at 250 VAC and 20 A, making it perfect for demanding environments.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Locking Plug, Non-Shrouded Watertight, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-20P NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 2.51 in Dia X 3.96 in L

MFG #: HBL26W48

EECO #: HUHBL26W48

Brand: Wiring Device-Kellems
UPC #: 783585131405
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Thermoplastic Elastomer
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/12/IP65/IP66/IP67
Temperature Rating
-40 to 60
Type
Non-Shrouded Watertight
Grade
Industrial
Dimensions
2.51 in Dia X 3.96 in L
Horsepower
2
Amperage Rating
20
Features
  • 2500 VAC minimum withstand dielectric voltage
  • Rated for current interruption per UL498
  • 30 deg maximum at rated current temperature rise
  • All exposed materials are UV stabilized
  • White nylon blade holder
  • Clear polycarbonate terminal retainer material
  • Nickel plated brass blades
  • White nylon core
  • Black elastomeric bushing and cone seal
  • Nylon gotcha ring
  • PBT strain relief nut
  • Nickel plated brass terminal screw
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
