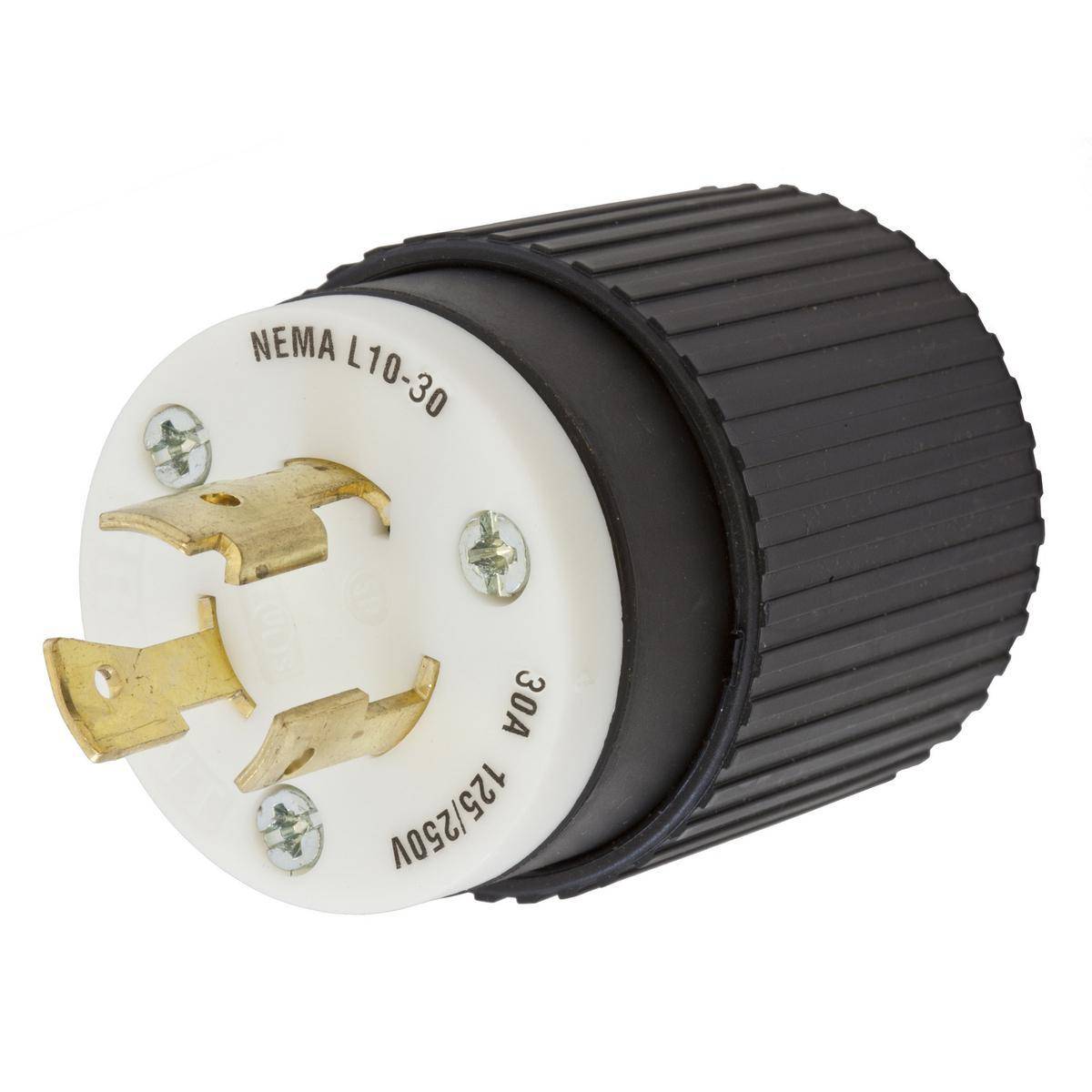

Wiring Device-Kellems HBL2661 1-Phase Non-Grounding Portable Standard Sized Watertight Cord Mount Locking Male Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2661 1-Phase Non-Grounding Portable Standard Sized Watertight Cord Mount Locking Male Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black/White

Short Description

Enhance your electrical connections with the Wiring Device-Kellems HBL2661 Locking Male Plug. Designed for durability and reliability, this watertight cord mount plug is perfect for both commercial and industrial applications. With a robust 30 A capacity and a temperature range of -40 to 75 degrees Celsius, it's built to perform in demanding environments. Upgrade your setup today!Enhanced by AI

Wiring Device-Kellems, HBL2661, Locking Male Plug, 1-Phase Non-Grounding Portable Standard Sized Watertight Cord Mount, 125/250 VAC, 30 A, 3 Pole, 3 Wires, L10-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White

MFG #: HBL2661

EECO #: HUHBL2661

Brand: Wiring Device-Kellems
UPC #: 783585456782
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121402
Material
Nylon
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Non-Grounding Portable Standard Sized Watertight Cord Mount
Grade
Commercial/Industrial
Amperage Rating
30
Features
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Clear polycarbonate terminal retainer, brass contact, #10-32 brass terminal screw cold rolled steel nickel plated terminal clamp, steel nickel plated assembly screw
  • Withstands 2000 VAC minimum dielectric voltage
  • 16 to 8 AWG solid/stranded copper wire terminal accommodation
