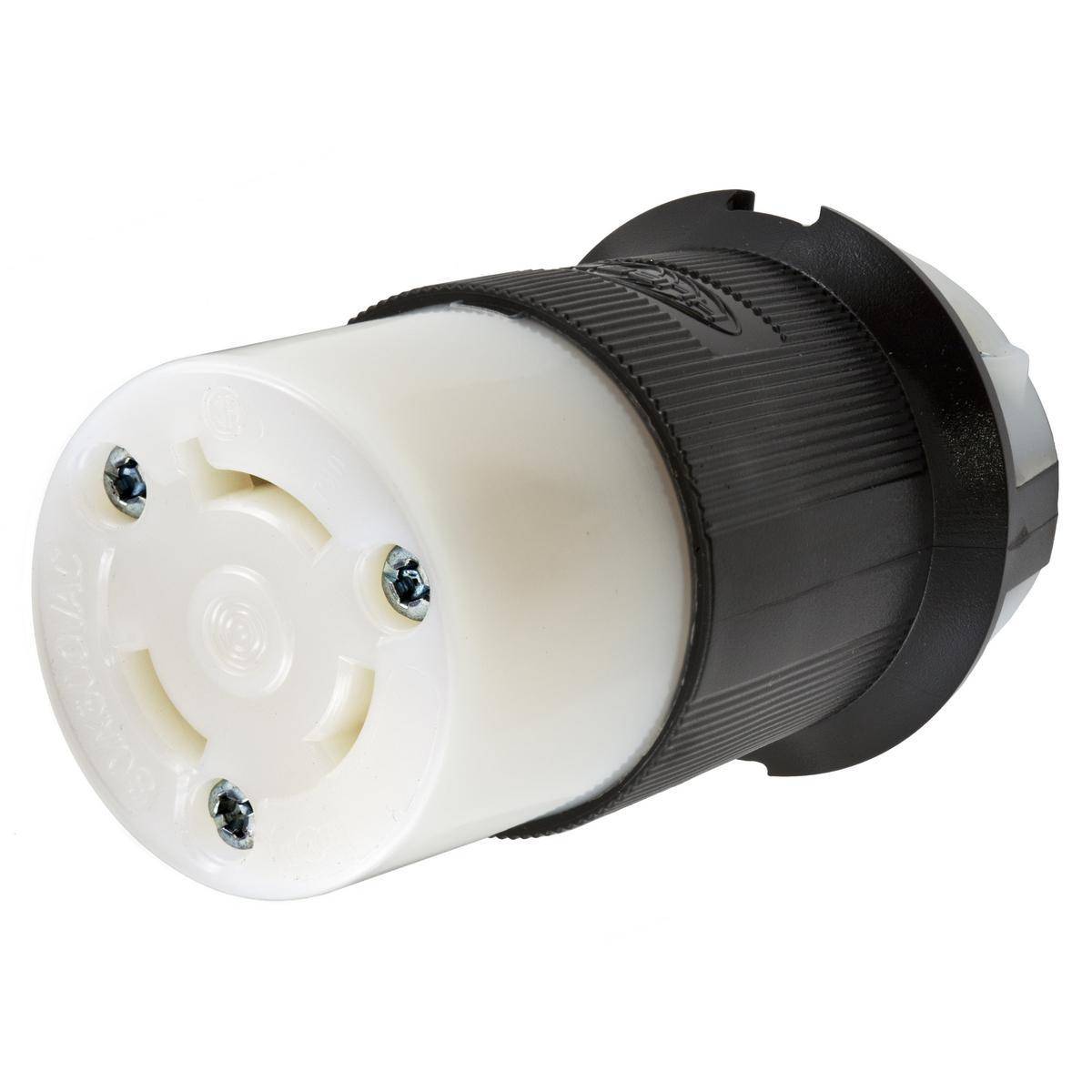

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2653 Heavy Duty Non-Grounding Cord Mount Locking Connector, 600 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2653 Heavy Duty Non-Grounding Cord Mount Locking Connector, 600 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2653 Heavy Duty Non-Grounding Cord Mount Locking Connector. Designed for industrial use, it supports up to 600 VAC and 30 A, making it perfect for demanding environments. Durable and versatile, this connector is your go-to solution for all heavy-duty applications.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Heavy Duty Non-Grounding Cord Mount, 600 VAC, 30 A, 2 Pole, 3 Wires, L9-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 3.86 in

MFG #: HBL2653

EECO #: HUHBL2653

Brand: Wiring Device-Kellems
UPC #: 783585039053
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121421
Material
Nylon
Terminal Type
Pressure Screw
Voltage Rating
600
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Non-Grounding Cord Mount
Grade
Industrial
Dimensions
2.26 x 2.26 x 3.86
Amperage Rating
30
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Clear polycarbonate terminal retainer
  • Natural white nylon cord clamp material, body contact carrier material
  • Steel nickel plated terminal clamp
  • Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
  • Steel zinc plated cord clamp screw, body holding screw
  • 30 A, 10 AWG terminal accommodation
  • Withstands 2000 VAC dielectric voltage
