480 VAC 30 A L8-30R, Hubbell Incorporated HBL2643 Twist-Lock®, Insulgrip® Locking Device Connector

Short Description

480 VAC, 30 A, 16 to 8 AWG, 2-Pole, 3-Wire, Black/White, Nylon, NEMA L8-30R, Polarized, Locking Device Connector

Locking Device Connector; Type Polarized; Constructional Feature Chemical Resistant; Configuration L8-30R; Voltage Rating 480 Volt AC; Current Rating 30 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon; Color Black/White; Cord Size 0.325 to 0.93 Inch; Approval UL 498, CSA C22.2; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596

MFG #: HBL2643

EECO #: HUHBL2643

Brand: Wiring Device-Kellems
UPC #: 783585039015
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL 498, CSA C22.2
Material
Nylon
Ground Type
Grounding
Current Rating
30 Amp
Voltage Rating
480 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Polarized, Connector
Cord Size
0.325 to 0.93 Inch
Configuration
L8-30R
Constructional Feature
Chemical Resistant
Features
  • Superior Cord Grip Design Protects Terminations from Excess Strain
  • Clear, Funnel Shaped Wire Entry for Ease of Termination
  • Integral Dust Shield Protects Wiring Chamber from Dust or Contaminants

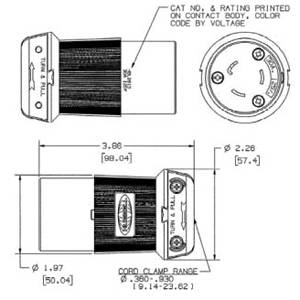

HUHBL2643CAD
Qty Unit price
Ea
1 $57.90

Slqt
1 $57.90

Stpk
1 $57.90

Unit
1 $57.90
