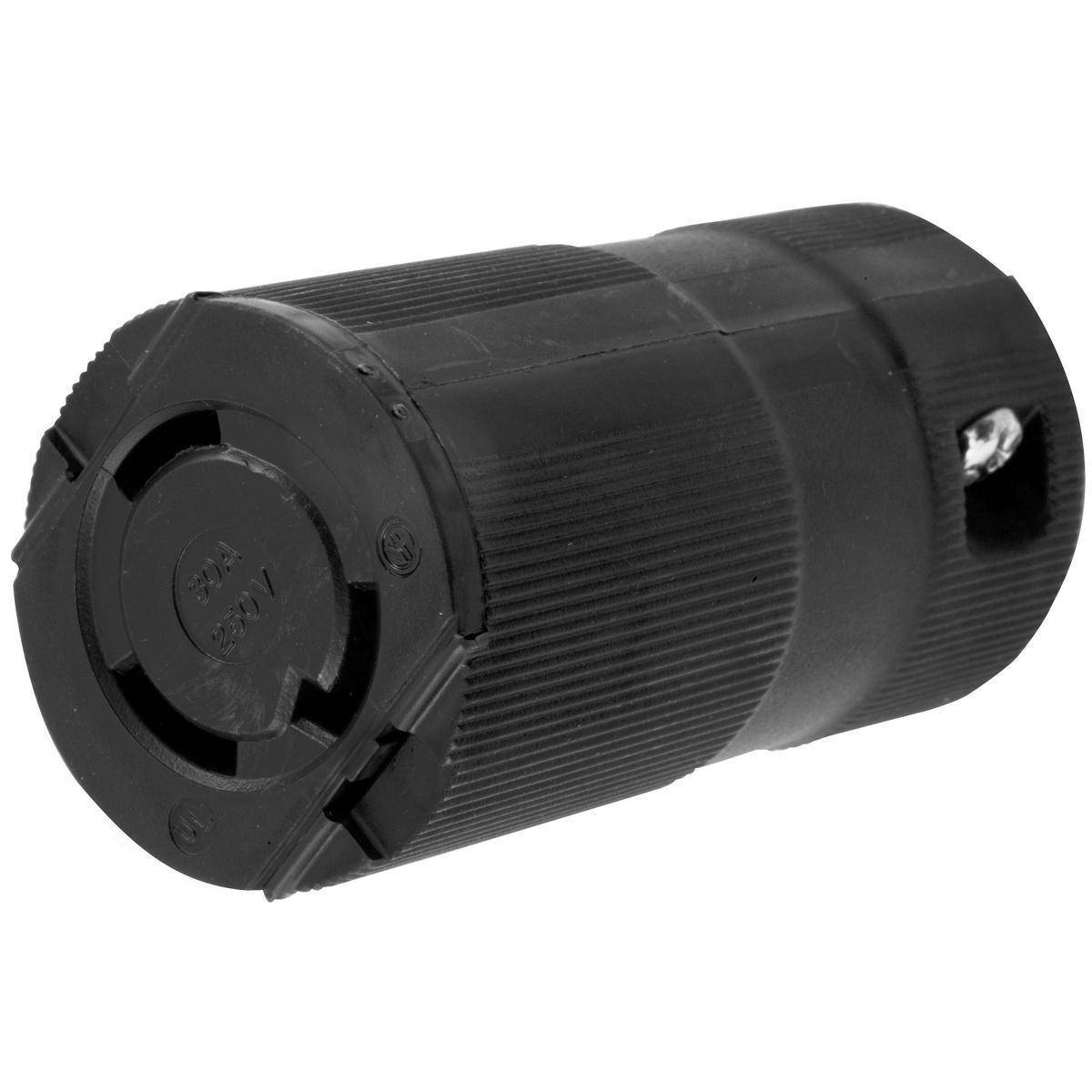

Wiring Device-Kellems Twist-Lock® Valise® HBL2623VBK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Valise® HBL2623VBK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Twist-Lock® Valise® HBL2623VBK Heavy Duty Female Grounding Insulated Connector. Designed for industrial applications, this robust locking connector offers superior performance at 250 VAC and 30 A, making it the perfect choice for demanding environments.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Valise® Locking Connector, Heavy Duty Female Grounding Insulated Standard Cord Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, 0.59 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 3.5 x 1.78 x 1.78 in

MFG #: HBL2623VBK

EECO #: HUHBL2623VBK

Brand: Wiring Device-Kellems
UPC #: 783585043180
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Dry Locations and Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
250
Number of Wires
3
Enclosure
NEMA 4X/12/IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Female Grounding Insulated Standard Cord Mount
Grade
Industrial
Dimensions
3.5 x 1.78 x 1.78
Horsepower
2
Amperage Rating
30
Features
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush-resistant nylon body
