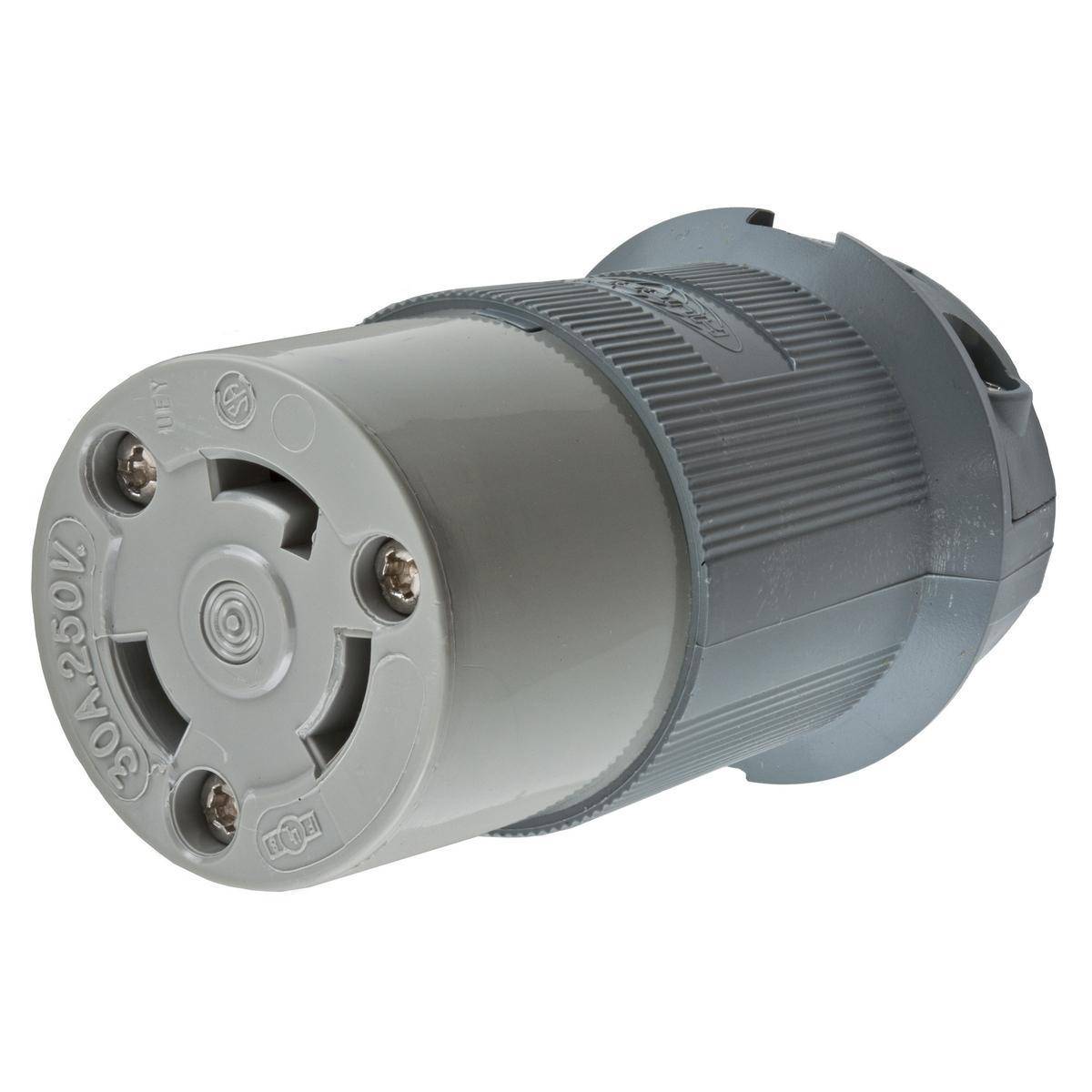

Wiring Device-Kellems Insulgrip® Twist-Lock® HBL2623F Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray
Share Share Print Print
Hubbell

Wiring Device-Kellems Insulgrip® Twist-Lock® HBL2623F Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray

Short Description

Enhance your electrical connections with the Wiring Device-Kellems Insulgrip® Twist-Lock® HBL2623F Locking Connector. Designed for reliability and safety, this connector supports 250 VAC and 30 A, ensuring a secure fit for your wiring needs. Perfect for various applications, its durable nylon construction and IP20 enclosure provide protection in a variety of environments.Enhanced by AI

Wiring Device-Kellems Insulgrip® Twist-Lock® Locking Connector, 250 VAC, 30 A, 2 Pole, 3 Wires, NEMA L6-30R, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Gray, 2.26 in Dia x 3.86 in L Dimensions

MFG #: HBL2623F

EECO #: HUHBL2623F

Brand: Wiring Device-Kellems
UPC #: 783585038889
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121421
Material
Nylon
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Dimensions
2.26 in Dia x 3.86 in L
Amperage Rating
30
Features
  • 2000 VAC minimum withstand dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • 30 A 10 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
  • Natural white nylon blade holder
  • Clear polycarbonate terminal retainer material
  • Brass blade
  • Nickel plated cold rolled steel terminal clamp
  • #10-32 bronze terminal screw
  • #10-32 bronze ground screw
  • Gray nylon cord clamp screw
  • Stainless steel body holding screw
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • High temp style
