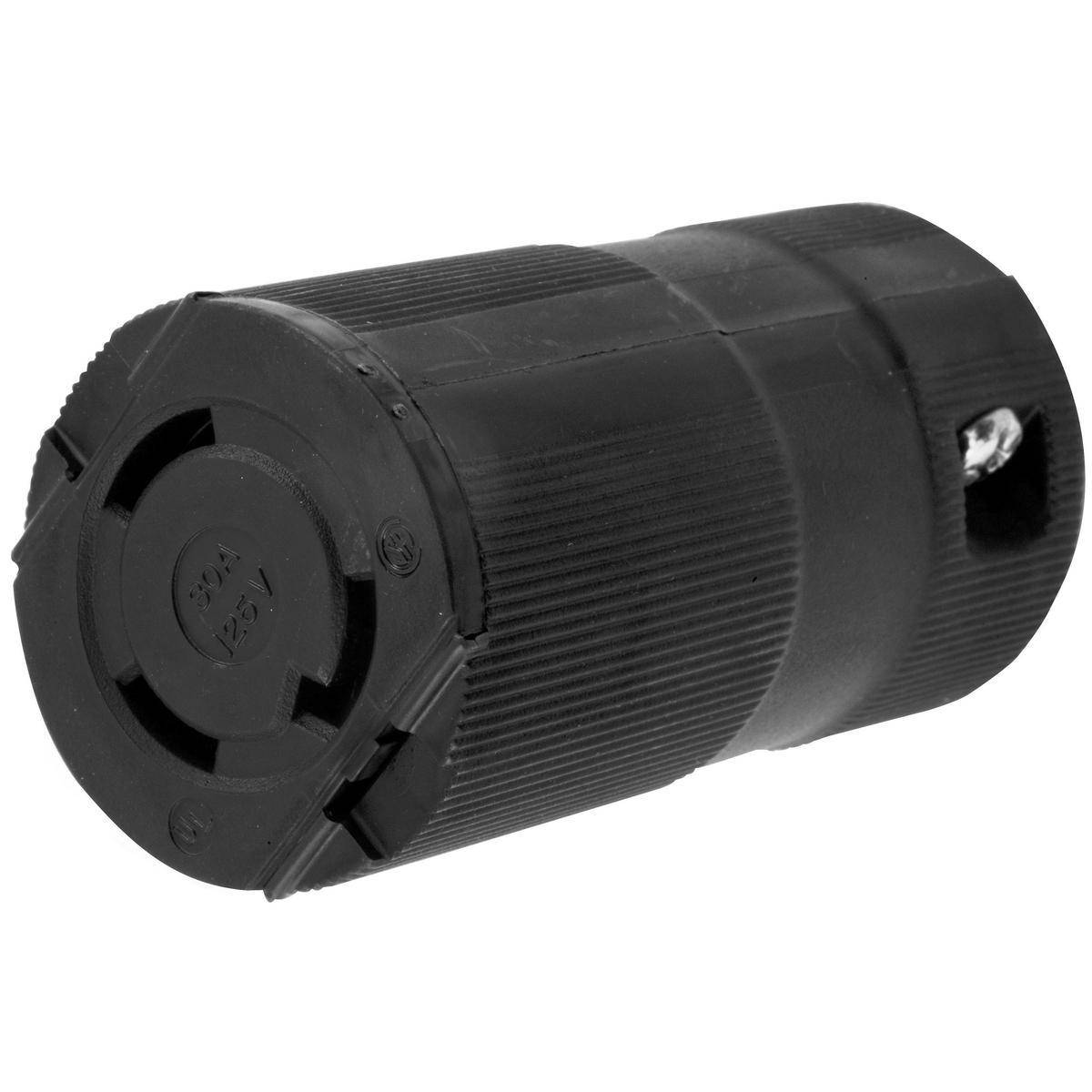

Wiring Device-Kellems HBL2613VBK HBL® Grounding Heavy Duty Cord Mount Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2613VBK HBL® Grounding Heavy Duty Cord Mount Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2613VBK Grounding Heavy Duty Cord Mount Locking Connector. Designed for industrial use, this durable connector supports 125 VAC and 30 A, featuring a robust nylon construction and IP20 enclosure for maximum performance.Enhanced by AI

Wiring Device-Kellems, HBL2613VBK, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 125 VAC, 30 A, 2 Pole, 3 Wires, L5-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.59 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 1.78 x 1.78 x 3.5 in Dimensions

MFG #: HBL2613VBK

EECO #: HUHBL2613VBK

Brand: Wiring Device-Kellems
UPC #: 783585043142
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Terminal Type
Pressure Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding Heavy Duty Cord Mount
Grade
Industrial
Series
HBL®
Dimensions
1.78 x 1.78 x 3.5
Amperage Rating
30
Features
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Cold rolled steel nickel plated terminal clamp
  • Steel terminal screw, ground screw
  • Steel zinc plated cord clamp screw, body holding screw
  • Brass contact spring, ground contact
  • 30 A 10 AWG wire size
  • Withstands 2000 VAC minimum dielectric voltage
  • Cord mounted
  • 30 A, 10 AWG terminal accommodation
