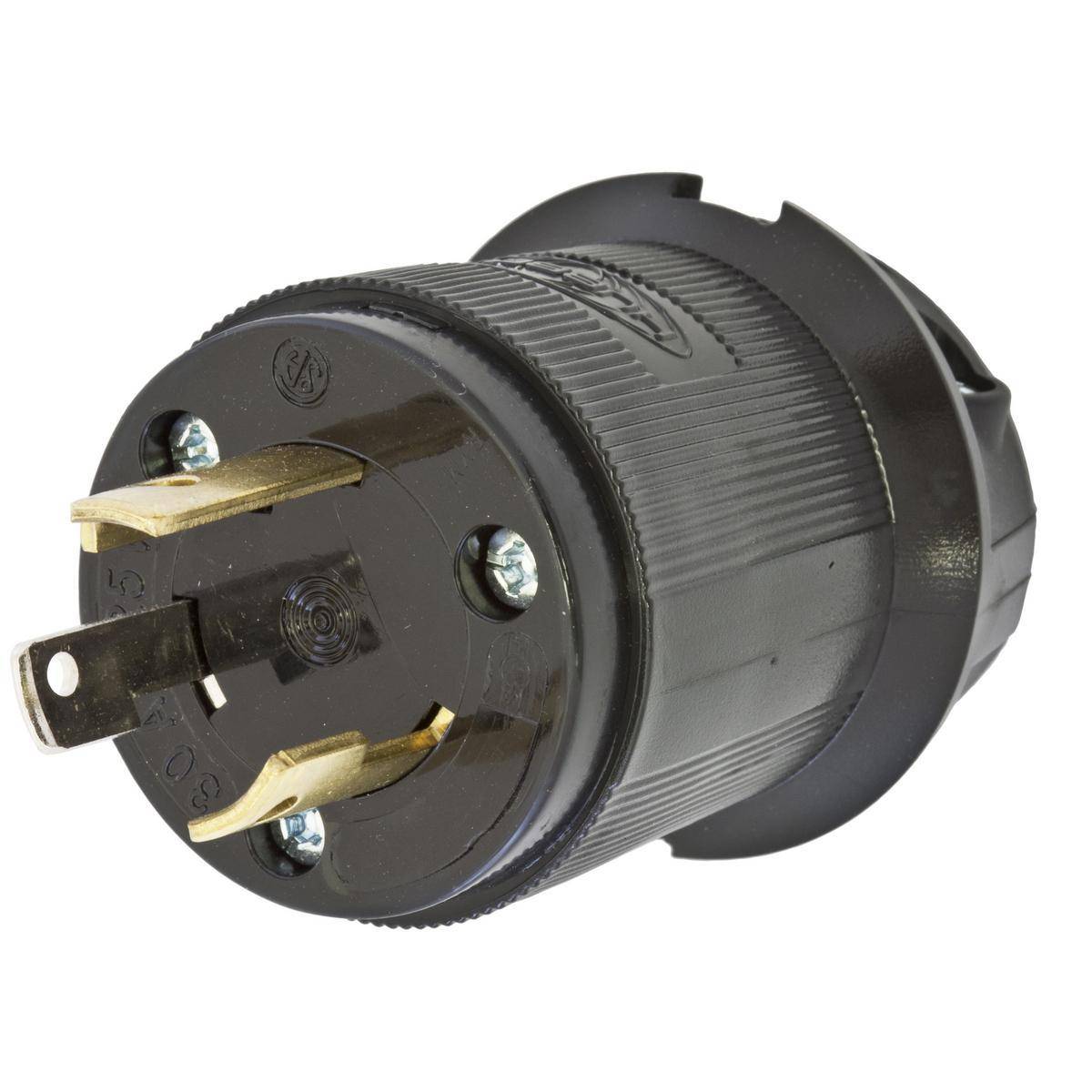

Wiring Device-Kellems HBL2611BK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2611BK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems HBL2611BK Locking Plug. Designed for industrial use, this durable black plug supports 125 VAC and 30 A, making it perfect for your electrical needs.Enhanced by AI

Wiring Device-Kellems, HBL2611BK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.26 x 2.26 x 2.75 in Dimensions

MFG #: HBL2611BK

EECO #: HUHBL2611BK

Brand: Wiring Device-Kellems
UPC #: 783585172200
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.26 x 2.26 x 2.75
Horsepower
2
Amperage Rating
30
Features
  • Superior cord grip design protects terminations from excess strain
  • Stainless steel cord clamp/body holding screws
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Nylon blade holder and cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
