250 V 15 A L6-15R, Hubbell Incorporated HBL25W49 Twist-Lock® Locking Device Connector

Short Description

250 V, 15 A, 2-Pole, 3-Wire, Yellow, Thermoplastic Elastomer, NEMA L6-15R, Polarized, Locking Device Connector

Locking Device Connector; Type Polarized; Constructional Feature Corrosion Resistant, Water Tight; Configuration L6-15R; Voltage Rating 250 Volt; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Material Thermoplastic Elastomer; Color Yellow; Cord Size 0.375 to 0.625 Inch; Approval UL 498, CSA C22.2; Enclosure Rating 4/4X/12/6/6P; Contact Material Nickel Plated Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard WD-1/6, ANSI

MFG #: HBL25W49

EECO #: HUHBL25W49

Brand: Wiring Device-Kellems
UPC #: 783585131337
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121400
Approval
UL 498, CSA C22.2
Material
Thermoplastic Elastomer
Current Rating
15 amp
Voltage Rating
250 Volt
Number Of Poles
2
Number of Wires
3
Type
Polarized, Connector
Cord Size
0.375 to 0.625 Inch
Configuration
L6-15R
Constructional Feature
Corrosion Resistant, Water Tight
Features
  • Smooth Body Design Minimizes Collection Points Simplifying the Wash Down Process
  • Strain Relief Nut Always Seals on the Body, Minimizing Debris Collection
  • Stainless Steel Hardware and Corrosion-Resistant Connection Points

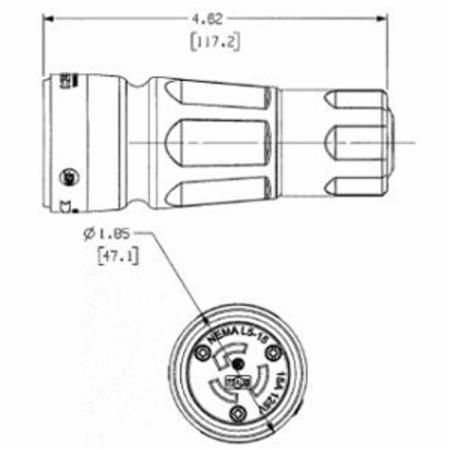

HUHBL25W49CAD
