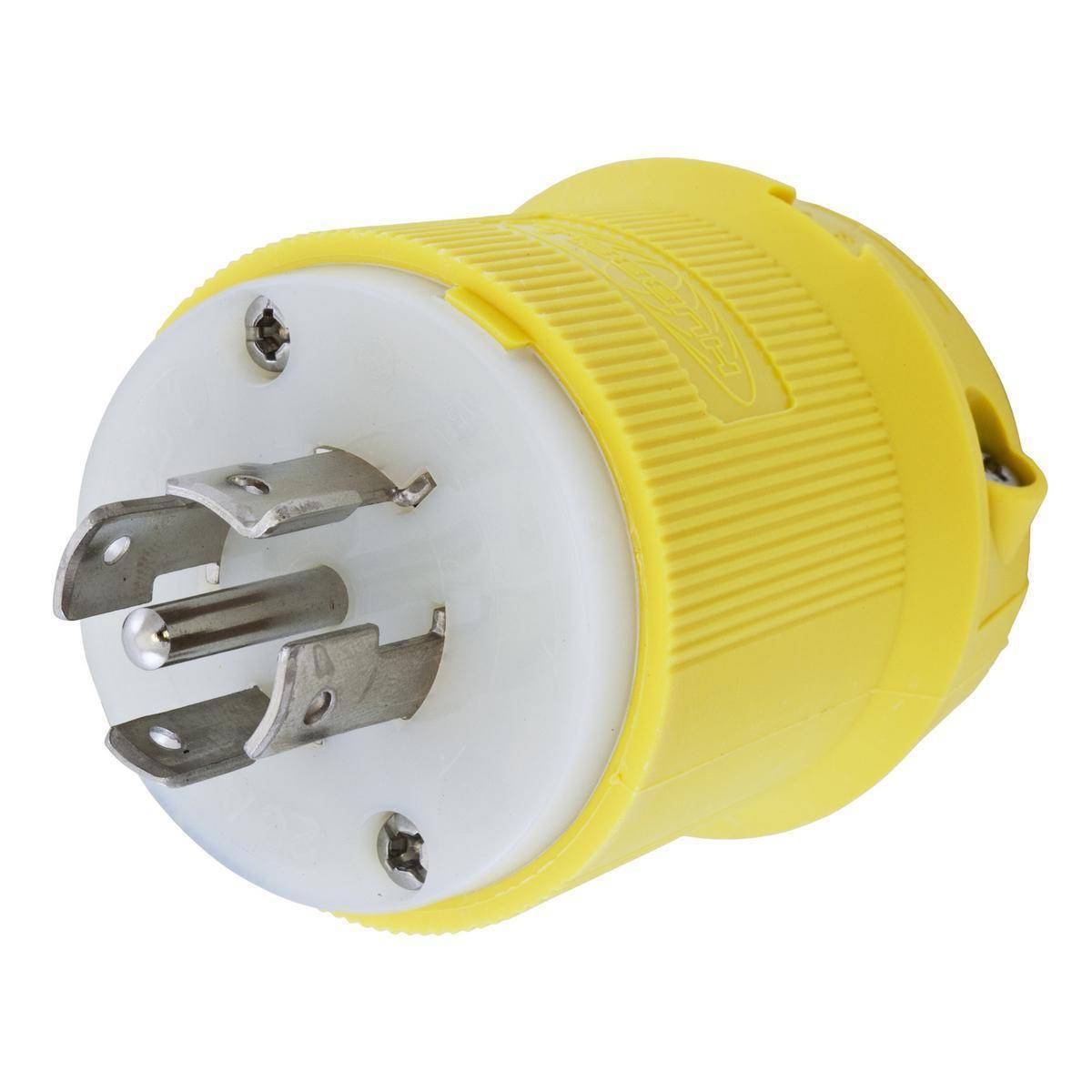

Wiring Device-Kellems Insulgrip® Twist-Lock® HBL25CM11 Grounding Non-Shrouded Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Insulgrip® Twist-Lock® HBL25CM11 Grounding Non-Shrouded Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Yellow

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems Insulgrip® Twist-Lock® HBL25CM11 Locking Plug. Designed for durability and performance, this grounding non-shrouded plug is perfect for various applications, featuring a robust marine-grade construction and a temperature range of -40 to 75°C. Ideal for your electrical needs!Enhanced by AI

Wiring Device-Kellems Insulgrip® Twist-Lock® Locking Plug, Grounding Non-Shrouded, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, NEMA L21-20P, Marine Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.33 in Dia x 2.75 in L Dimensions

MFG #: HBL25CM11

EECO #: HUHBL25CM11

Brand: Wiring Device-Kellems
UPC #: 783585038711
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding Non-Shrouded
Grade
Marine
Dimensions
2.33 in Dia x 2.75 in L
Horsepower
2
Amperage Rating
20
Features
  • 2000 VAC minimum withstand dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • 20 A 12 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
  • Natural white nylon blade holder
  • Clear polycarbonate terminal retainer material
  • Brass blade
  • 0.08 in nickel-plated steel terminal clamp
  • #10-32 bronze terminal screw
  • #10-32 bronze ground screw
  • Stainless steel cord clamp screw
  • Stainless steel body holding screw material
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion-resistant
  • Chem/marine style
