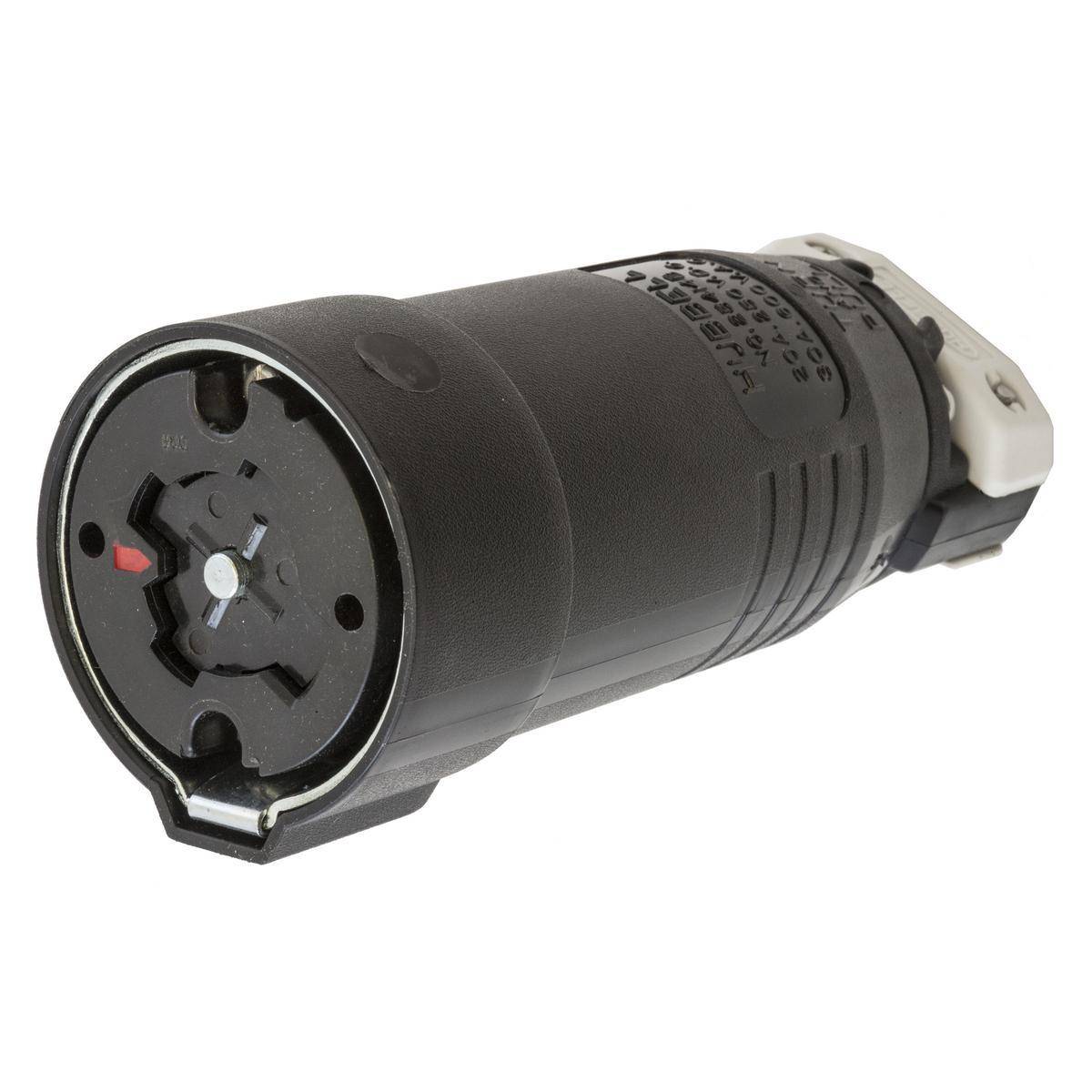

Wiring Device-Kellems HBL25414B HBL® Heavy Duty Non-Grounding Cord Mount Locking Connector, 600 VAC/250 VDC, 20/30 A, 4 Poles, 5 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL25414B HBL® Heavy Duty Non-Grounding Cord Mount Locking Connector, 600 VAC/250 VDC, 20/30 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure reliable connections with the HBL® Heavy Duty Non-Grounding Cord Mount Locking Connector. Designed for industrial use, it handles 600 VAC/250 VDC with ease, featuring a robust nylon construction and a secure locking mechanism. Perfect for demanding environments!Enhanced by AI

Wiring Device-Kellems, HBL25414B, Locking Connector, Heavy Duty Non-Grounding Cord Mount, Series: HBL®, 600 VAC/250 VDC, 20/30 A, 4 Pole, 5 Wires, Industrial Grade, IP30 Enclosure, 0.7 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 6.78 x 2.69 x 2.69 in Dimensions

MFG #: HBL25414B

EECO #: HUHBL25414B

Brand: Wiring Device-Kellems
UPC #: 783585017471
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121421
Material
Nylon
Terminal Type
Pressure Screw
Voltage Rating
600 VAC/250 VDC
Number of Wires
5
Enclosure
IP30
Temperature Rating
-40 to 75
Type
Heavy Duty Non-Grounding Cord Mount
Grade
Industrial
Series
HBL®
Dimensions
6.78 x 2.69 x 2.69
Amperage Rating
20/30
Features
  • Grounding style connector
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Cord mounted
  • Insulated body
  • 12 to 8 AWG wire size
  • Thermoplastic polyester interior
  • Non-NEMA rating
  • Standard wiring style
  • 3-phase clamp assembly provides maximum strain relief and protects against entry of moisture and dust
