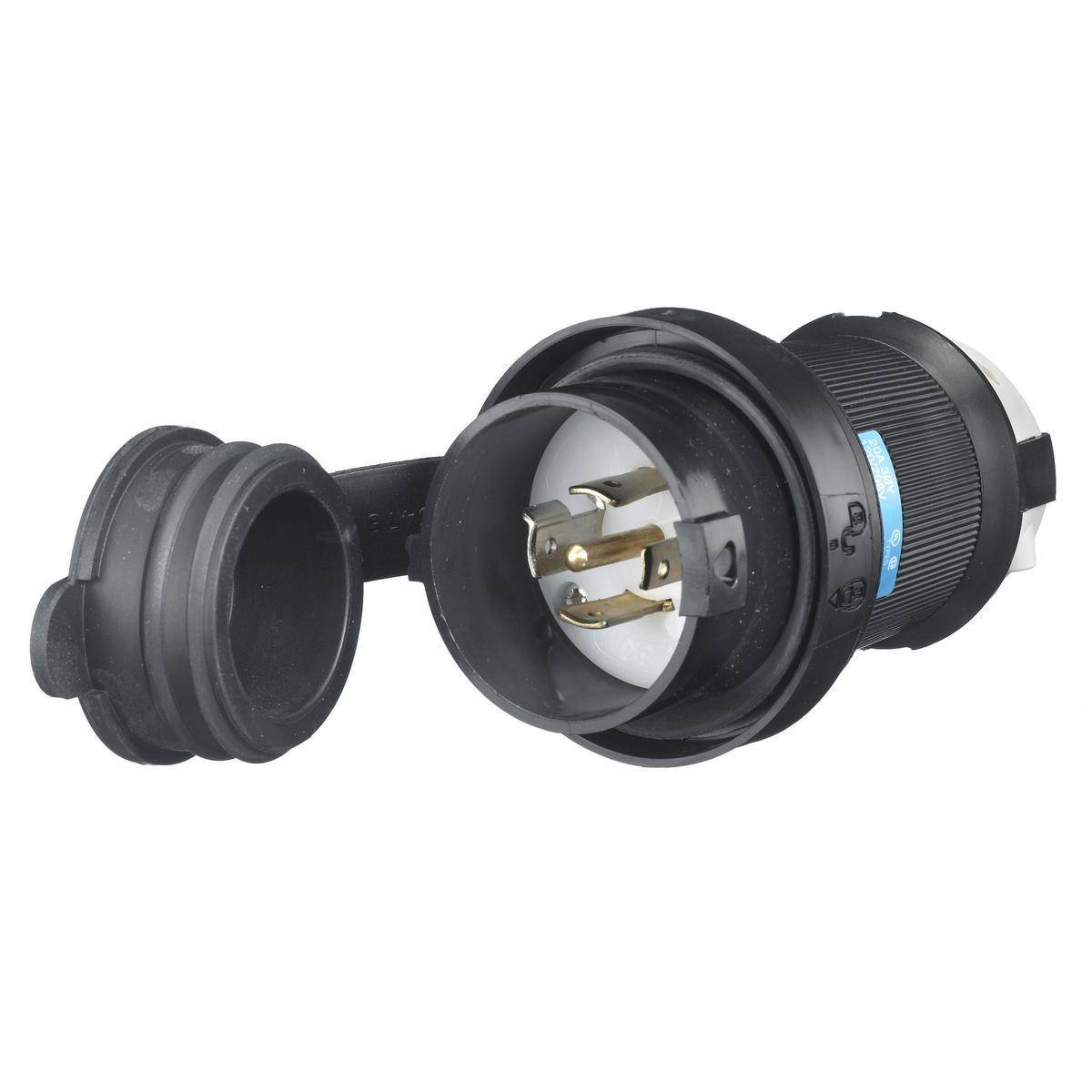

Wiring Device-Kellems HBL2511SW HBL® 3-Phase Grounding Watertight Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems HBL2511SW Locking Plug, designed for 3-phase grounding applications. This watertight cord mount plug is perfect for industrial environments, offering robust performance with a NEMA 4/4X/12/IP66 rating. Experience durability and efficiency with its high-quality construction and temperature range of -40 to 75 degrees Celsius.Enhanced by AI

Wiring Device-Kellems, HBL2511SW, Locking Plug, 3-Phase Grounding Watertight Cord Mount, Series: HBL®, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions

MFG #: HBL2511SW

EECO #: HUHBL2511SW

Brand: Wiring Device-Kellems
UPC #: 783585231525
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Composite
Application
Power Connection Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
NEMA 4/4X/12/IP66
Temperature Rating
-40 to 75
Type
3-Phase Grounding Watertight Cord Mount
Grade
Industrial
Series
HBL®
Dimensions
2.94 x 2.94 x 4.40
Horsepower
2
Amperage Rating
20
Features
  • Impact modified PBT cord clamp
  • Reduces exposure to arcing when connecting or disconnecting under load
  • Impact resistant shroud protects blades against bending and breaking
  • Superior cord grip design protects terminations from excess strain
  • Natural white nylon blade holder
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal clamp, terminal screw, ground screw
  • Steel nickel plated terminal clamp
  • Steel, zinc plated cord clamp screw, body holding screw
  • Withstands 2000 VAC minimum dielectric voltage
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498
  • Certified for current interrupting at full rated current interrupting
