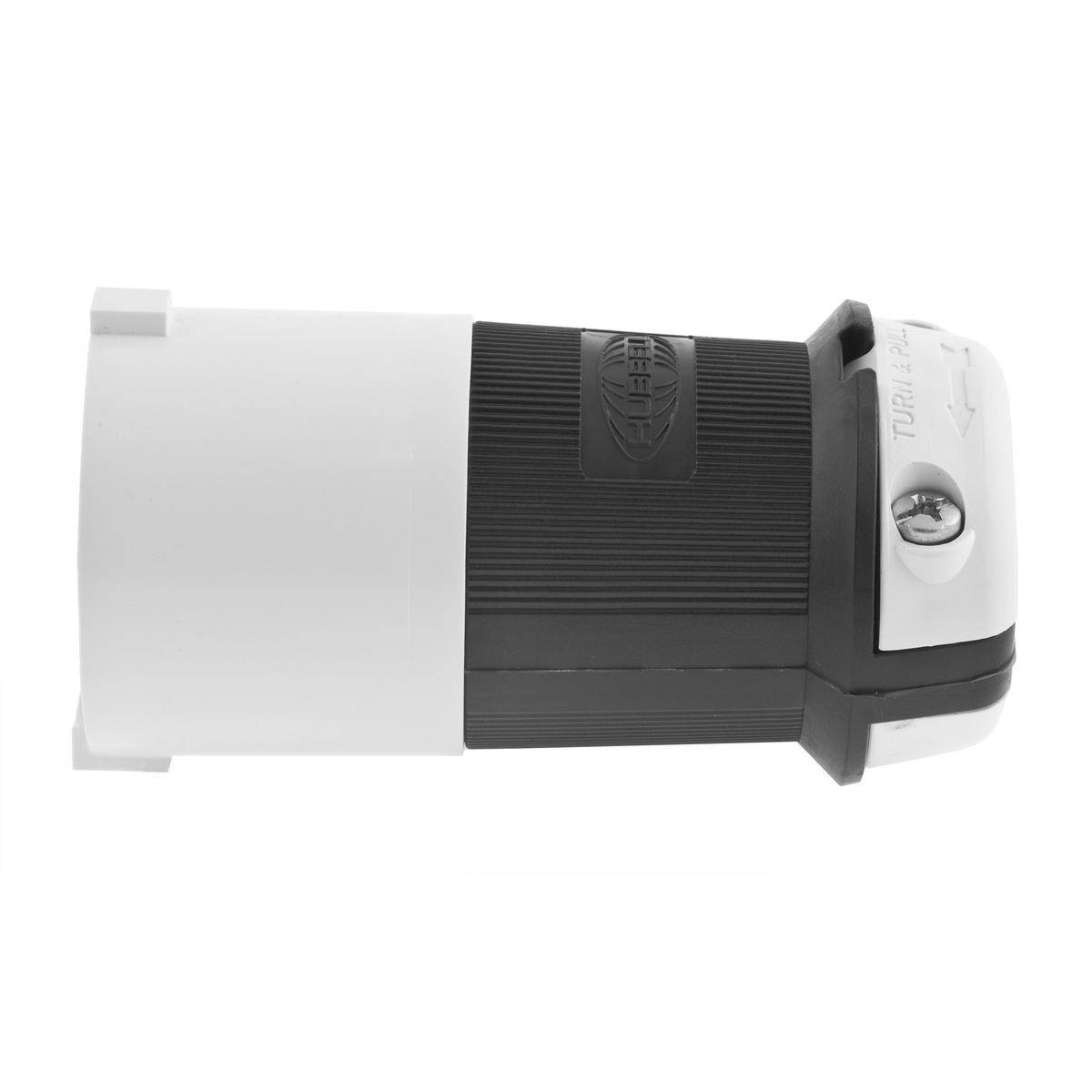

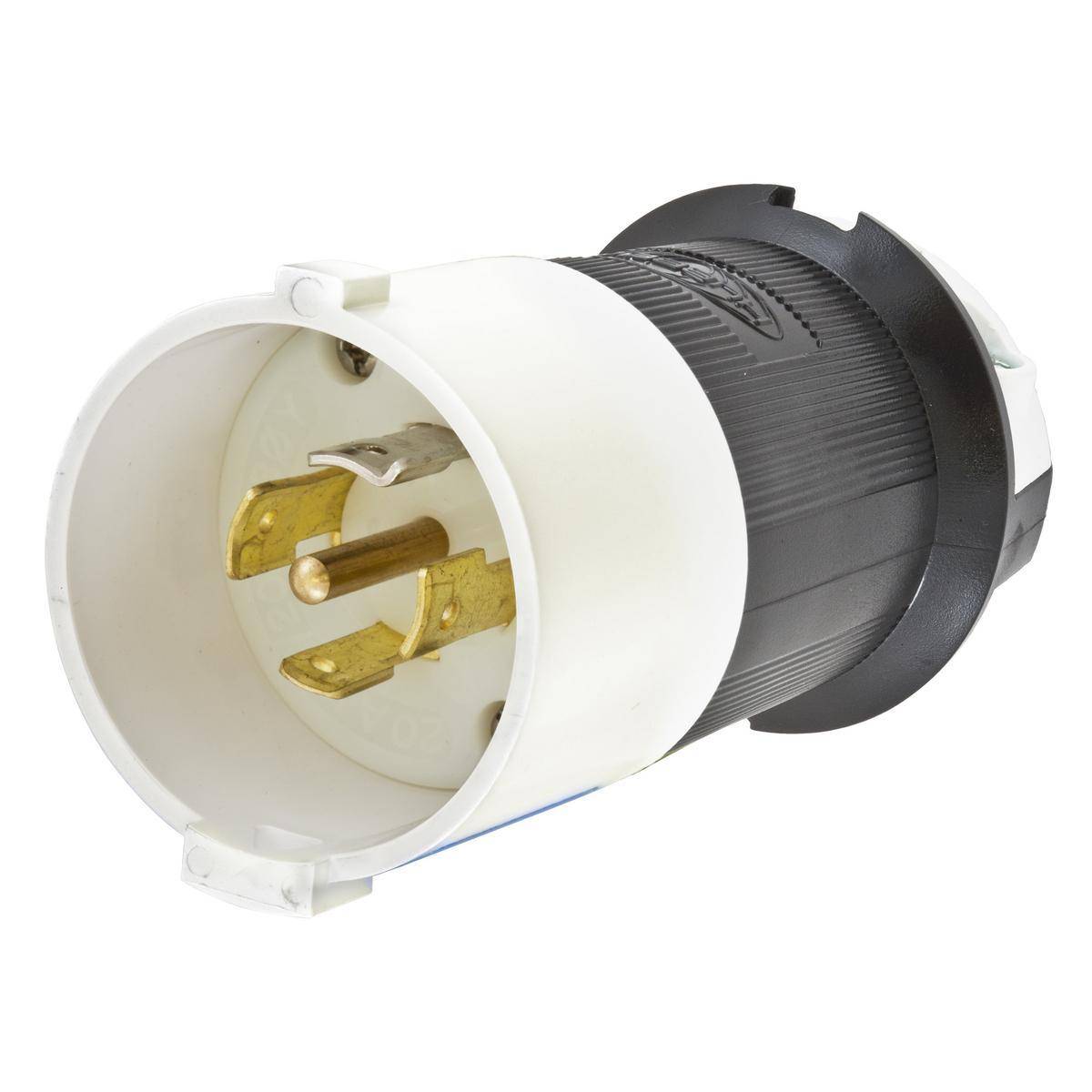

Wiring Device-Kellems HBL2511S 3-Phase Grounding Male Standard Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2511S 3-Phase Grounding Male Locking Plug. Designed for industrial use, this durable plug features a robust IP20 enclosure and is rated for 120/208 VAC at 20 A. Perfect for demanding environments, it supports a range of cord diameters and operates efficiently in extreme temperatures.Enhanced by AI

Wiring Device-Kellems, HBL2511S, Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 4.21 in Dimensions

MFG #: HBL2511S

EECO #: HUHBL2511S

Brand: Wiring Device-Kellems
UPC #: 783585235028
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.33 x 2.33 x 4.21
Horsepower
2
Amperage Rating
20
Features
  • Superior cord grip design protects terminations from excess strain
  • Stainless steel cord clamp/body holding screws
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Natural white nylon blade holder and cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
