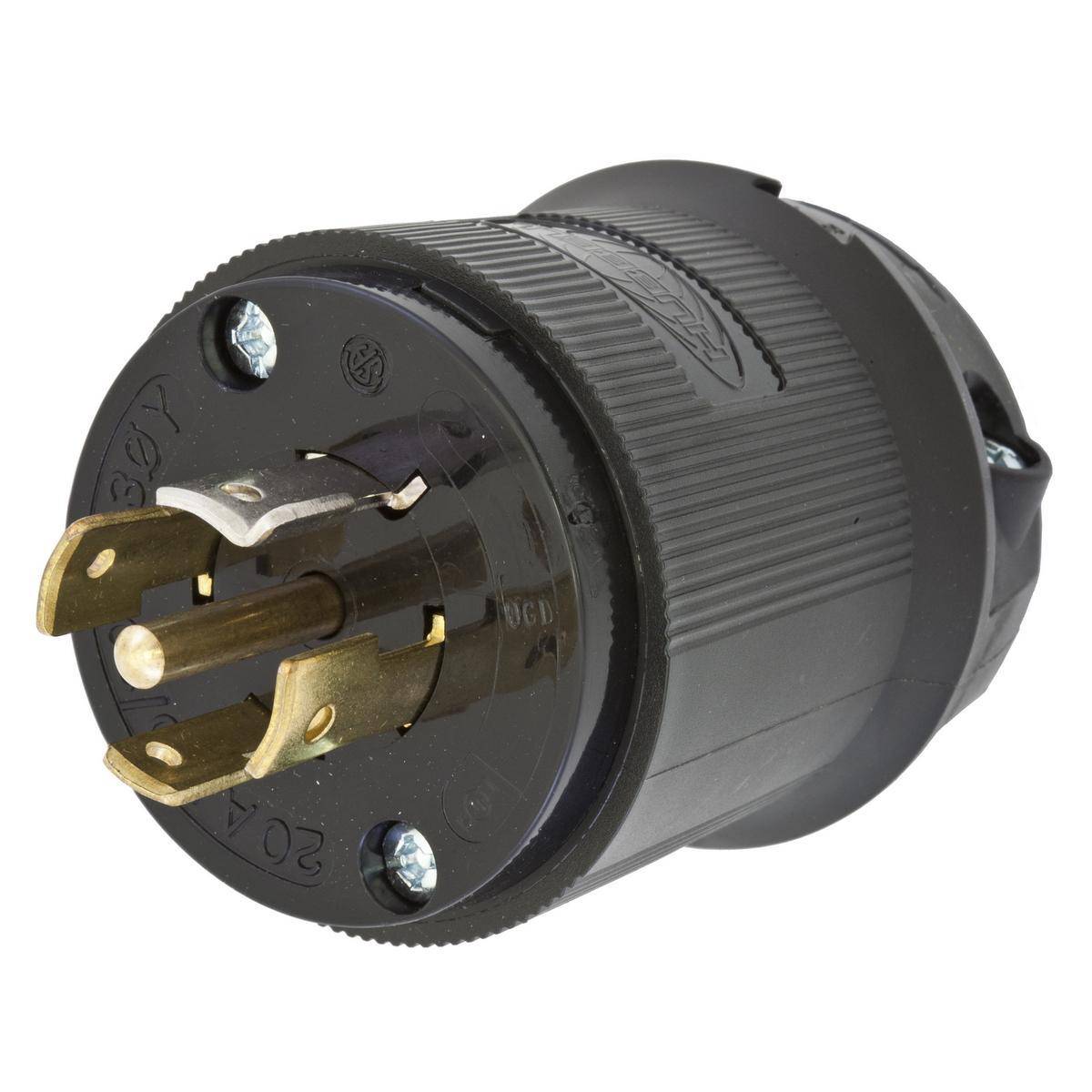

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2511BK 3-Phase Grounding Male Standard Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2511BK 3-Phase Grounding Male Standard Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2511BK. This durable 3-phase grounding male locking plug is designed for industrial use, providing secure connectivity for your electrical applications. With a robust construction and IP20 enclosure, it’s built to withstand demanding environments while delivering 20 A at 120/208 VAC. Upgrade your setup with this essential locking plug!Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.75 x 2.33 x 2.33 in

MFG #: HBL2511BK

EECO #: HUHBL2511BK

Brand: Wiring Device-Kellems
UPC #: 783585172262
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.75 x 2.33 x 2.33
Horsepower
2
Amperage Rating
20
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
