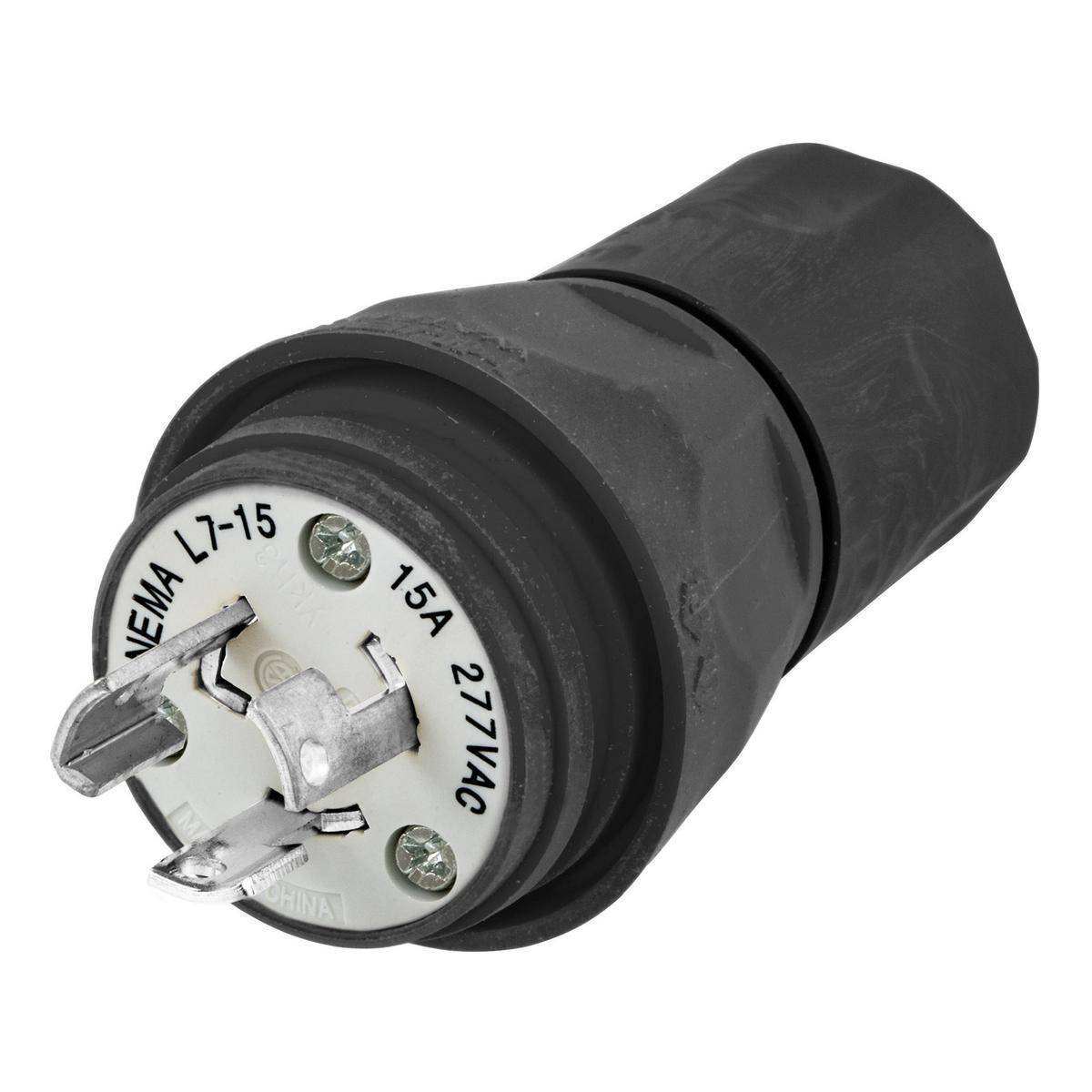

Wiring Device-Kellems Twist-Lock® HBL24W34BK 1-Phase Grounding Watertight Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® HBL24W34BK 1-Phase Grounding Watertight Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable and watertight connections with the Wiring Device-Kellems Twist-Lock® HBL24W34BK Locking Plug. Designed for commercial and industrial use, this durable plug operates at 277 VAC and 15 A, providing a secure fit for your electrical needs.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Locking Plug, 1-Phase Grounding Watertight, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, L7-15P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 5/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic/Elastomer, Black, 1.85 x 1.85 x 3.21 in

MFG #: HBL24W34BK

EECO #: HUHBL24W34BK

Brand: Wiring Device-Kellems
UPC #: 783585511047
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121402
Material
Thermoplastic/Elastomer
Terminal Type
Screw
Voltage Rating
277
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/12/IP65/IP66/IP67
Temperature Rating
-40 to 60
Type
1-Phase Grounding Watertight
Grade
Commercial/Industrial
Dimensions
1.85 x 1.85 x 3.21
Horsepower
2
Amperage Rating
15
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
