277/480 VAC 20 A L19-20R, Hubbell Wiring Device-Kellems HBL2453 Twist-Lock® Locking Device Connector
277/480 VAC 20 A L19-20R, Hubbell Wiring Device-Kellems HBL2453 Twist-Lock® Locking Device Connector
277/480 VAC 20 A L19-20R, Hubbell Wiring Device-Kellems HBL2453 Twist-Lock® Locking Device Connector
277/480 VAC 20 A L19-20R, Hubbell Wiring Device-Kellems HBL2453 Twist-Lock® Locking Device Connector
Share Share Print Print
Hubbell

277/480 VAC 20 A L19-20R, Hubbell Wiring Device-Kellems HBL2453 Twist-Lock® Locking Device Connector

Short Description

277/480 VAC Star 3-Phase, 20 A, 4-Pole, 4-Wire, L19-20R, Black/White, Nylon, Non-Grounding, Locking Device Connector

Locking Device Connector; Constructional Feature Chemical Resistant; Configuration L19-20R; Voltage Rating 277/480 Volt AC Star 3-Phase; Current Rating 20 Amp; Number of Poles 4; Number of Wires 4; Ground Type Non-Grounding; Material Nylon; Color Black/White; Cord Size 0.35 to 1.15 Inch; Approval UL 94/498, CSA C22.2, Fed.Spec W-C-596; Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial

MFG #: HBL2453

EECO #: HUHBL2453

Brand: Wiring Device-Kellems
UPC #: 783585038407
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL 94/498, CSA C22.2, Fed-Spec W-C-596
Material
Nylon
Ground Type
Non-Grounding
Current Rating
20 Amp
Voltage Rating
277/480 Volt AC Star 3-Phase
Number Of Poles
4
Number of Wires
4
Type
Connector
Cord Size
0.35 to 1.15 Inch
Configuration
L19-20R
Constructional Feature
Chemical Resistant
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
Hubbell_WiringDeviceKellems_00122_INST
Hubbell_WiringDeviceKellems_00634_1_SPEC

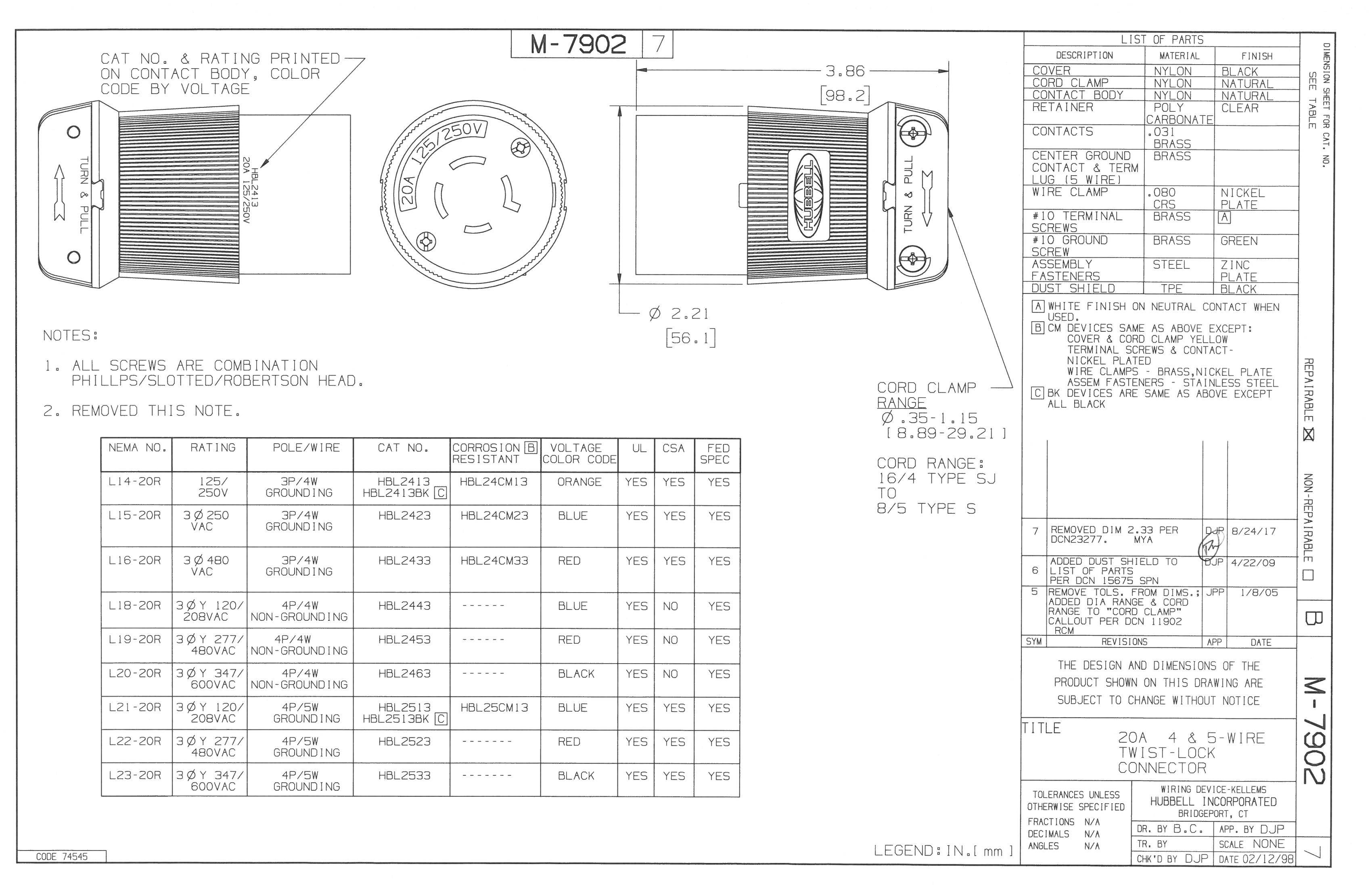

Hubbell_WiringDeviceKellems_00901_1_CAD
