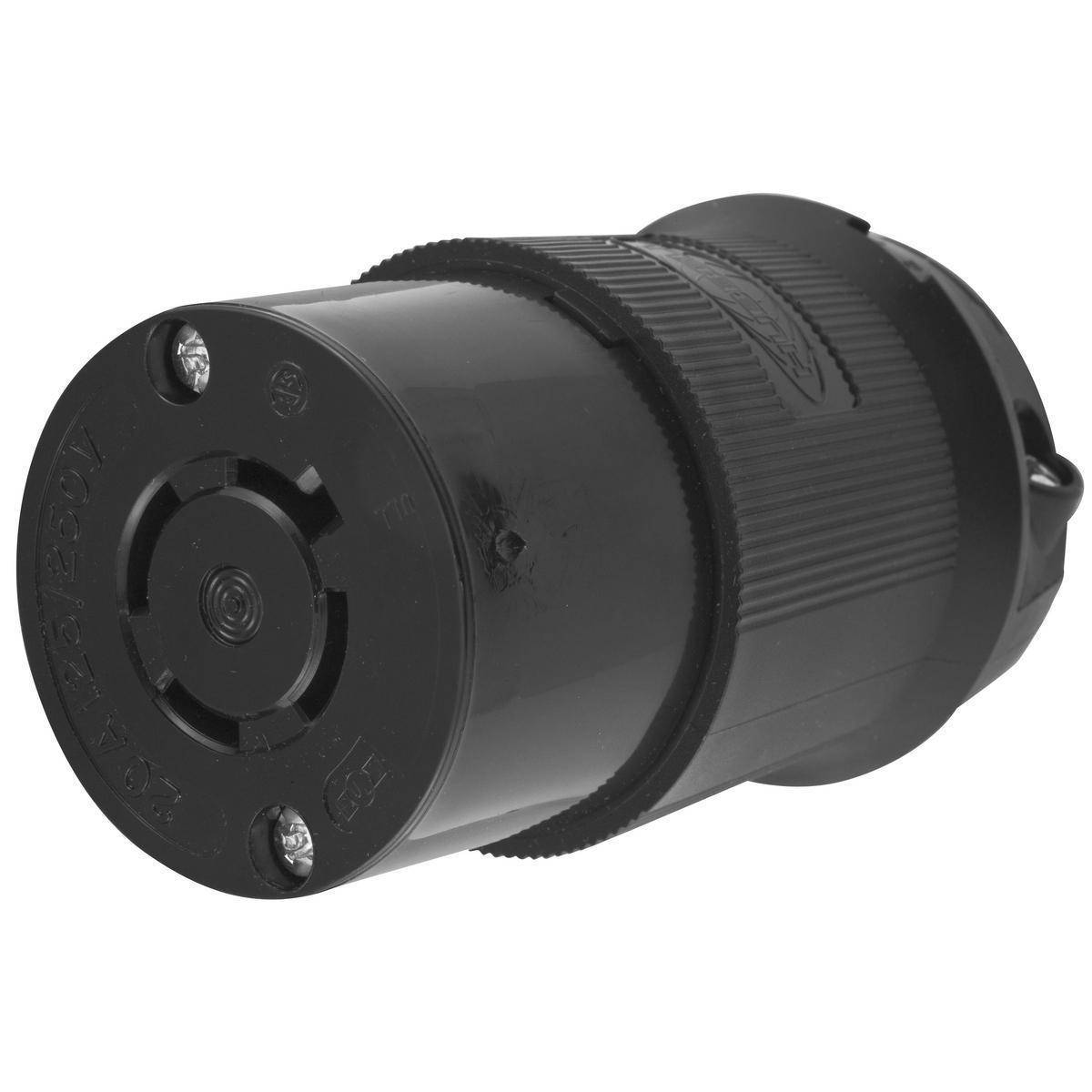

Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2413BK Heavy Duty Female Grounding Insulated Locking Connector. Designed for industrial use, this robust connector offers superior durability and performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL2413BK, Locking Connector, Heavy Duty Female Grounding Insulated Standard Cord Mount, 125/250 VAC, 20 A, 1 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20/IP66 Enclosure, 0.35 to 1.05 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 3.86 x 2.33 x 2.33 in Dimensions

MFG #: HBL2413BK

EECO #: HUHBL2413BK

Brand: Wiring Device-Kellems
UPC #: 783585172316
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Dry Locations and Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
NEMA 4X/12/IP20/IP66
Temperature Rating
-40 to 75
Type
Heavy Duty Female Grounding Insulated Standard Cord Mount
Grade
Industrial
Dimensions
3.86 x 2.33 x 2.33
Horsepower
1
Amperage Rating
20
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • 12 to 10 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted

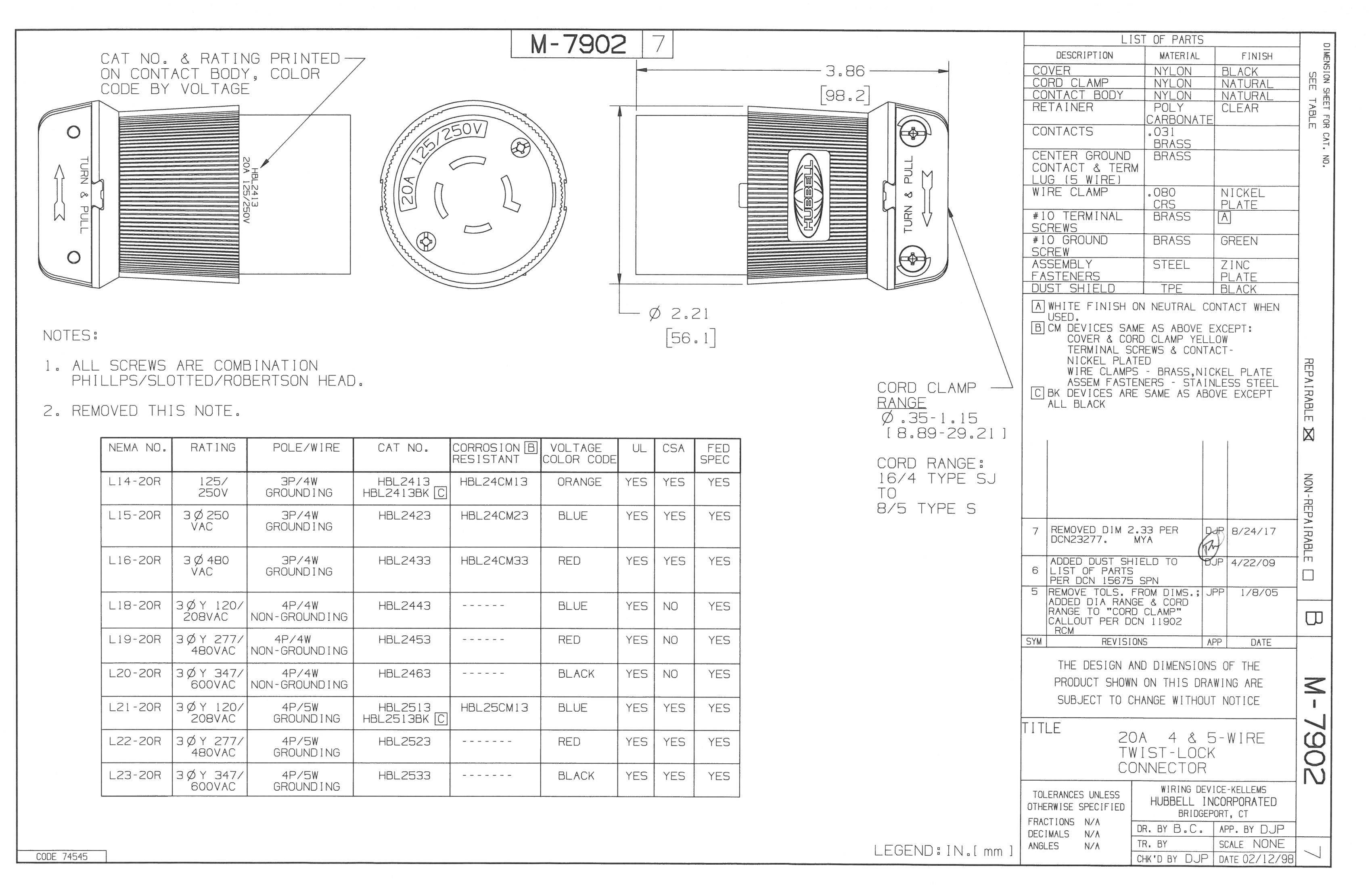

HUBBELL_HBL2413BK_Specification_Sheet
IDW_DOCUMENT_5e994863e585c8f01950f8bbef1d4537bb530478a17e4b590facf2e437ae941f
IDW_DOCUMENT_c840f3f685469bab07c5c454232fcb065e8149421603e9017432eab6569905d0
IDW_DOCUMENT_fb09dc4b76e86f96c0b309550b652d1cbfaf484069a4381f80c529f3dcafb09d
Wiring_Device_Kellems_SCSB0_Catalog
