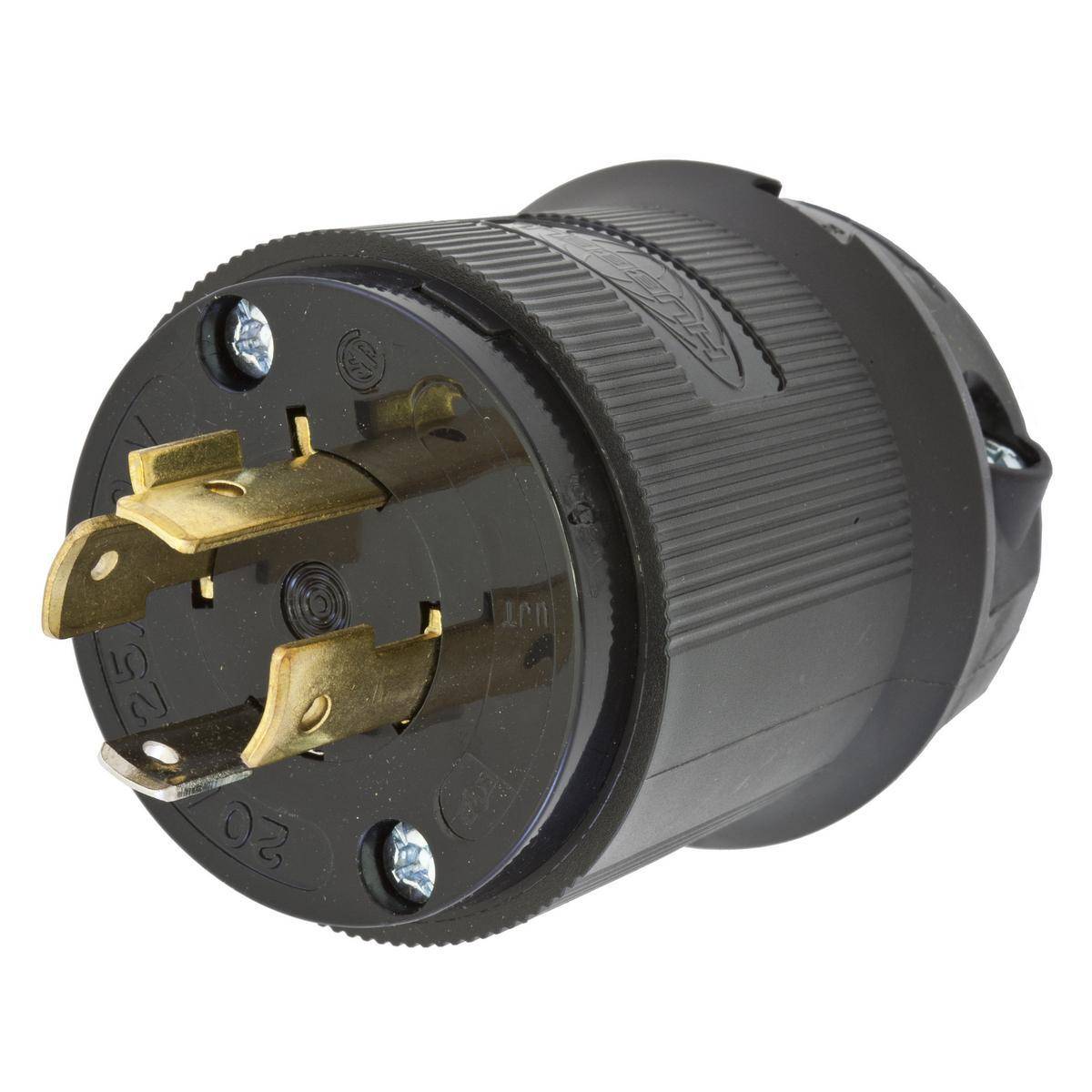

Wiring Device-Kellems HBL2411BK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2411BK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2411BK Locking Plug. Designed for industrial use, this durable black plug supports 125/250 VAC and features a secure locking mechanism for safety and stability.Enhanced by AI

Wiring Device-Kellems, HBL2411BK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125/250 VAC, 20 A, 1 hp, 2 hp, 3 Pole, 4 Wires, L14-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.75 x 2.33 x 2.33 in Dimensions

MFG #: HBL2411BK

EECO #: HUHBL2411BK

Brand: Wiring Device-Kellems
UPC #: 783585172309
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
4
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.75 x 2.33 x 2.33
Horsepower
1 hp, 2 hp
Amperage Rating
20
Features
  • Superior cord grip design protects terminations from excess strain
  • Stainless steel, multi-drive cord clamp screw body holding screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • 2 hp line to line, 1 hp line to neutral
  • Natural white nylon blade holder, nylon cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
