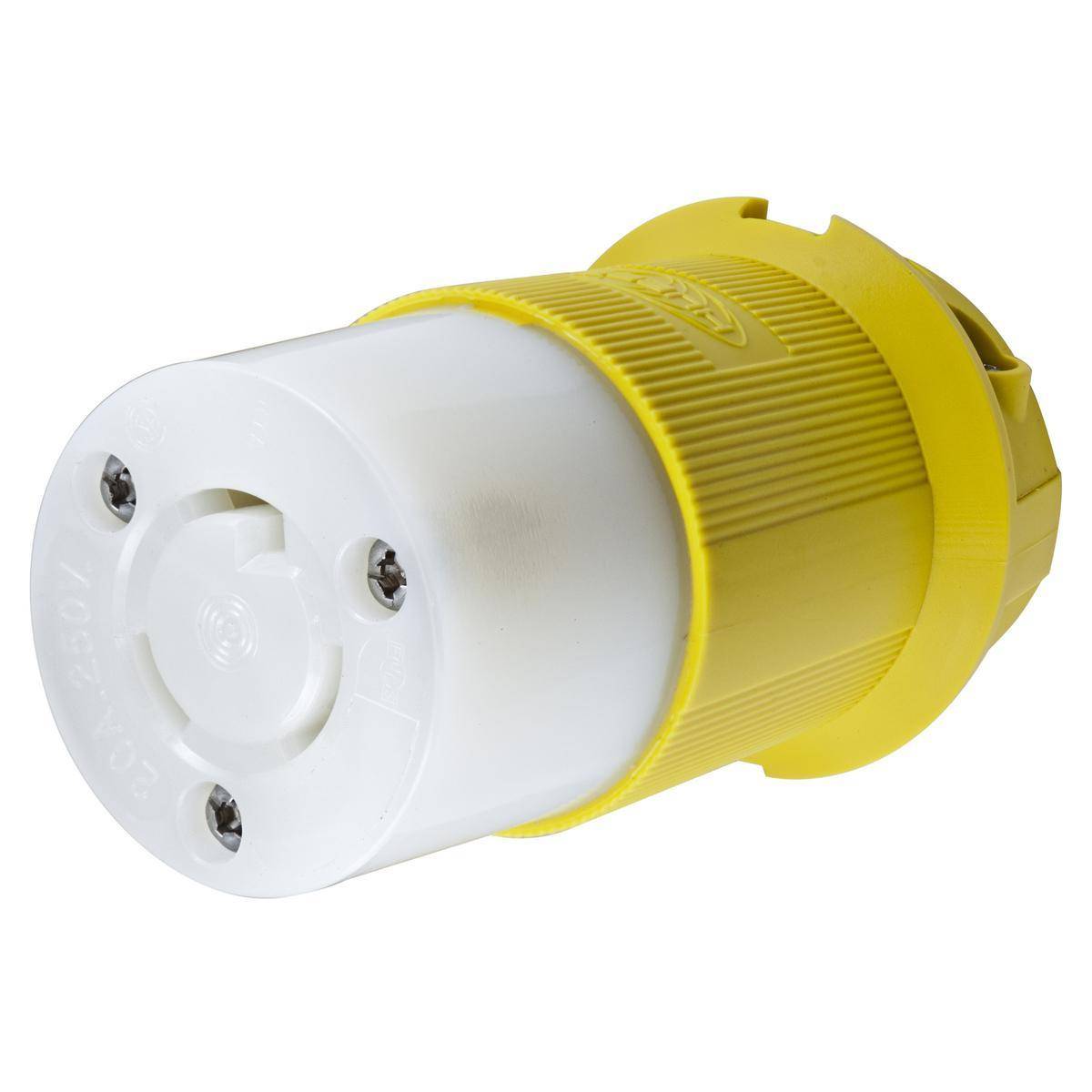

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL23CM23 Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL23CM23 Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure reliable power connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL23CM23 Heavy Duty Female Connector. Designed for durability and safety, this industrial-grade connector is perfect for isolated grounding applications, supporting up to 250 VAC and 20 A. Ideal for both industrial and marine environments.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R/WD1/WD5 NEMA Rating, Industrial/Marine Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 3.86 x 2.26 x 2.26 in

MFG #: HBL23CM23

EECO #: HUHBL23CM23

Brand: Wiring Device-Kellems
UPC #: 783585038124
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Isolated Grounding Standard Sized Cord Mount
Grade
Industrial/Marine
Dimensions
3.86 x 2.26 x 2.26
Horsepower
2
Amperage Rating
20
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion resistant
