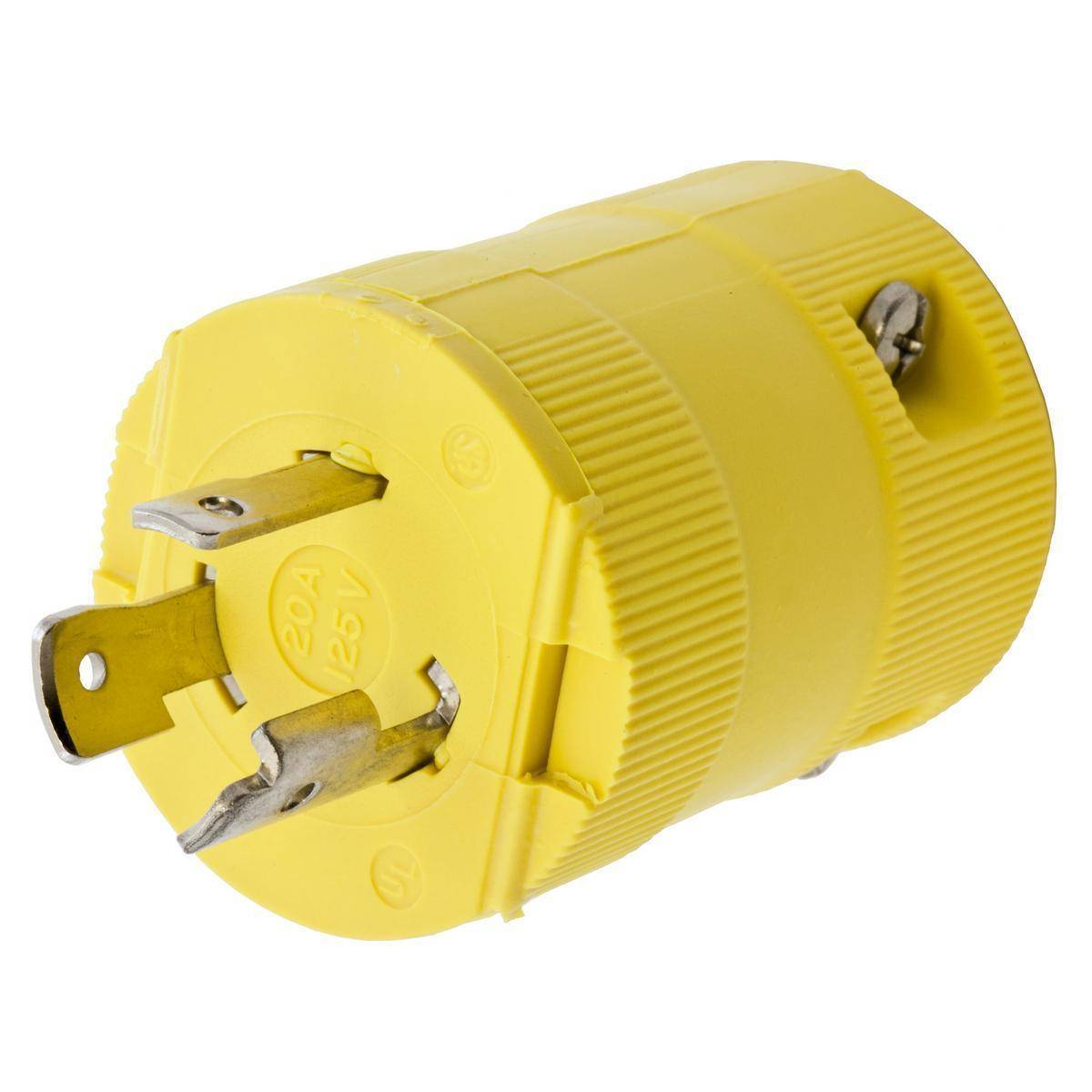

Wiring Device-Kellems HBL23CM11V 1-Phase Corrosion Resistant Grounding Male Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL23CM11V 1-Phase Corrosion Resistant Grounding Male Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Enhance your electrical connections with the Wiring Device-Kellems HBL23CM11V Locking Plug. Designed for durability and safety, this corrosion-resistant, marine-grade plug is perfect for demanding environments. Featuring a reliable 1-phase grounding design, it supports 125 VAC and 20 A, ensuring optimal performance for your electrical needs.Enhanced by AI

Wiring Device-Kellems, HBL23CM11V, Locking Plug, 1-Phase Corrosion Resistant Grounding Male, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Marine Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.5 x 1.78 x 1.78 in Dimensions

MFG #: HBL23CM11V

EECO #: HUHBL23CM11V

Brand: Wiring Device-Kellems
UPC #: 783585808161
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Corrosion Resistant Grounding Male
Grade
Marine
Dimensions
2.5 x 1.78 x 1.78
Horsepower
1
Amperage Rating
20
Features
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Stainless steel 302/304 multi-drive mounting screws
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Totally insulated impact and crush resistant nylon body
  • Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Nylon blade holder, phenylene-oxide (noryl) cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • #8-32 (stainless steel) terminal screw
  • #8-32 steel (green finish) ground screw
  • Stainless steel cord clamp/body holding screws
IDW_DOCUMENT_8743a1e1d548ad8823d3d2c35dfb4d6836ff78259fcf2e43ae70ac857e0b9233
IDW_DOCUMENT_8c8ffecfa11a6ea9537ef213d4d0d95a821b0fc51ed41e392c1f0e0452f30bbd
IDW_DOCUMENT_f2ed3c5ad131a2ed7690aa440a706f4e5182b9e03f3ac40f7dc1e2d2da8f38a0
Wiring_Device_Kellems_CWP1CR_Catalog
Wiring_Device_Kellems_HBL2311VBK_Full_Engineering_Drawing
