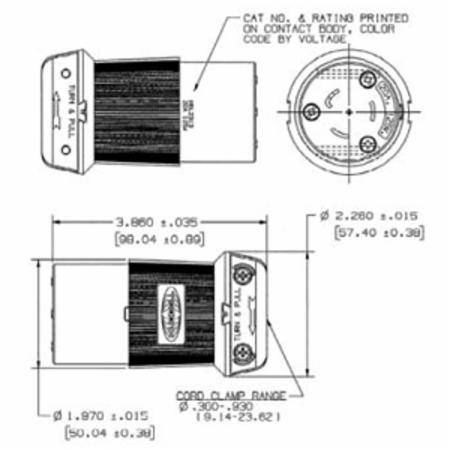

Print480 VAC 20 A L8-20R, Hubbell Incorporated HBL2343 Twist-Lock®, Insulgrip® Locking Device Connector
Short Description
480 VAC, 20 A, 16 to 8 AWG, 2-Pole, 3-Wire, Black/White, Nylon, NEMA L8-20R, Polarized, Locking Device Connector
Locking Device Connector; Type Polarized; Constructional Feature Chemical Resistant; Configuration L8-20R; Voltage Rating 480 Volt AC; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon; Color Black/White; Cord Size 0.36 to 0.93 Inch; Approval UL 498, CSA C22.2; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL2343
EECO #: HUHBL2343
Brand:
Wiring Device-Kellems
UPC #:
783585037981
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $30.50 |
|
Slqt |
|
| 1 | $30.50 |
|
Stpk |
|
| 1 | $30.50 |
|
Unit |
|
| 1 | $30.50 |
everwhere
480 VAC 20 A L8-20R, Hubbell Incorporated HBL2343 Twist-Lock®, Insulgrip® Locking Device Connector
