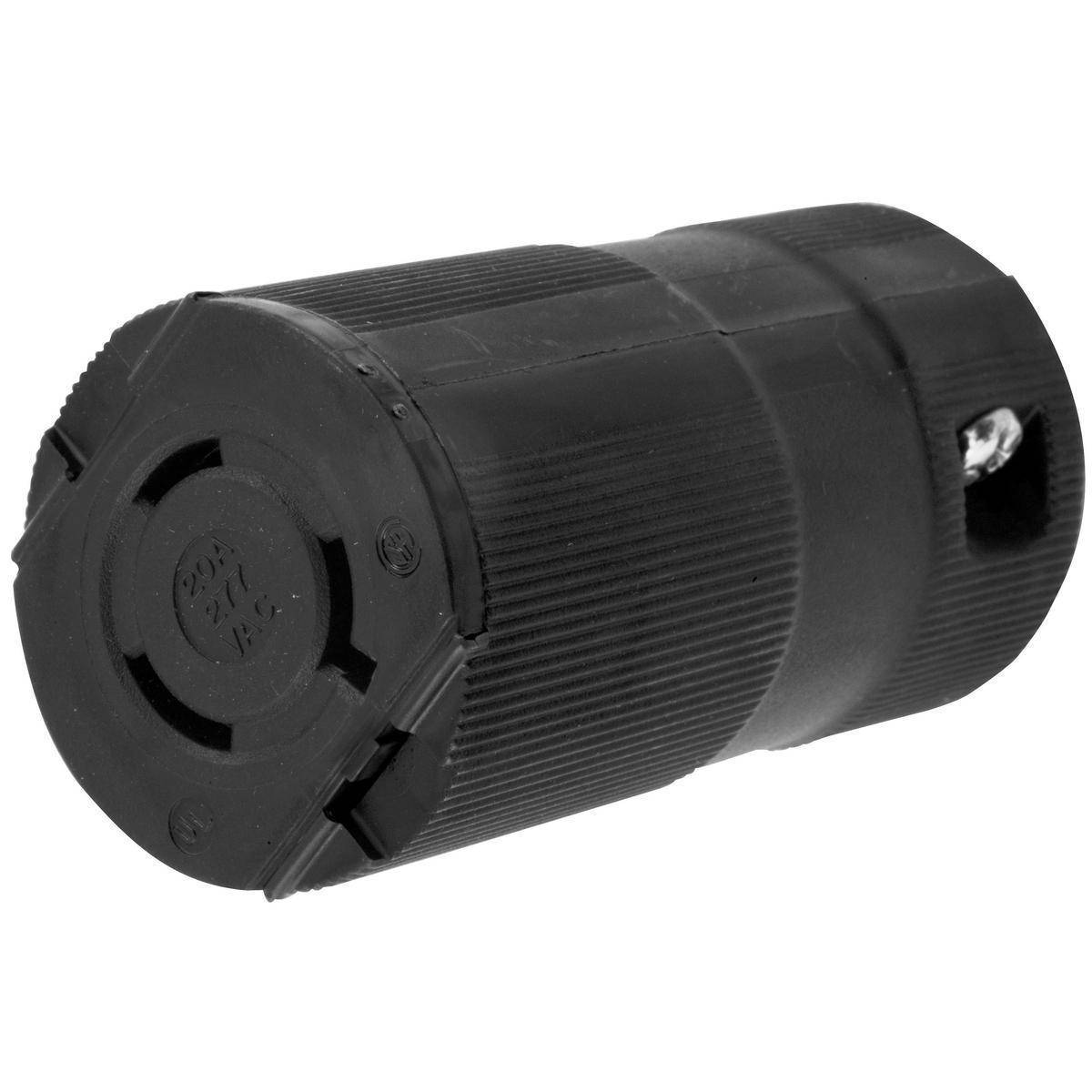

Wiring Device-Kellems Twist-Lock® Valise® HBL2333VBK Grounding Locking Connector, 277 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Valise® HBL2333VBK Grounding Locking Connector, 277 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Twist-Lock® Valise® HBL2333VBK Grounding Locking Connector. Designed for industrial applications, this durable connector supports 277 VAC and 20 A, featuring a robust IP20 enclosure and a temperature range of -40 to 75 °C. Perfect for your electrical needs!Enhanced by AI

Wiring Device-Kellems Twist-Lock® Valise® Locking Connector, Grounding, 277 VAC, 20 A, 2 Pole, 3 Wires, NEMA L7-20R, Industrial Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.812 in Dia x 3.5 in L Dimensions

MFG #: HBL2333VBK

EECO #: HUHBL2333VBK

Brand: Wiring Device-Kellems
UPC #: 783585043104
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Terminal Type
Screw
Voltage Rating
277
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding
Grade
Industrial
Dimensions
1.812 in Dia x 3.5 in L
Amperage Rating
20
Features
  • Natural (white) nylon cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • #8-32 brass (copper flash, nickel plate and molykote) terminal screw
  • #8-32 brass (green finish) ground screw
  • Zinc plated steel multi drive cord clamp screw
  • Brass contact spring and spring binding plate
  • Molded in/stamped on ratings
  • Permanently ink marked on product catalog number
  • Withstand 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Round portable service cords of diameters commensurate with the device rating
  • 20 A 12 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
  • Totally insulated impact and crush-resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
