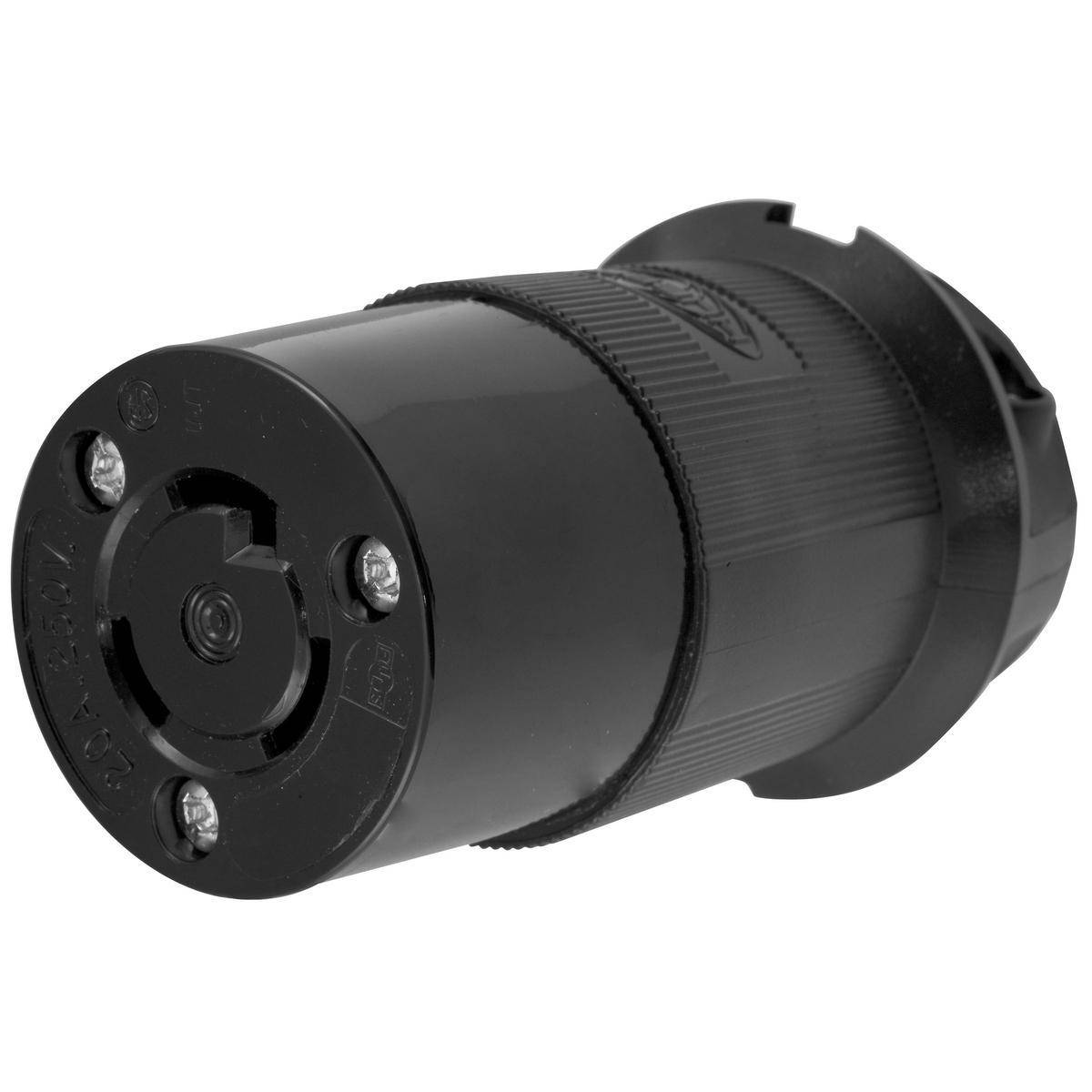

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2323EBK Heavy Duty Insulated Isolated Ground Standard Cord Mount Locking Female Connector With Removable Insert, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2323EBK Heavy Duty Insulated Isolated Ground Standard Cord Mount Locking Female Connector With Removable Insert, 250 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2323EBK Heavy Duty Insulated Isolated Ground Connector. Designed for industrial applications, this robust locking female connector features a removable insert and is built to withstand harsh conditions while providing superior performance. Perfect for your heavy-duty electrical needs!Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Female Connector, Heavy Duty Insulated Isolated Ground Standard Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.26 x 2.26 x 3.86 in

MFG #: HBL2323EBK

EECO #: HUHBL2323EBK

Brand: Wiring Device-Kellems
UPC #: 783585040936
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Insulated Isolated Ground Standard Cord Mount
Grade
Industrial
Dimensions
2.26 x 2.26 x 3.86
Horsepower
2
Amperage Rating
20
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
