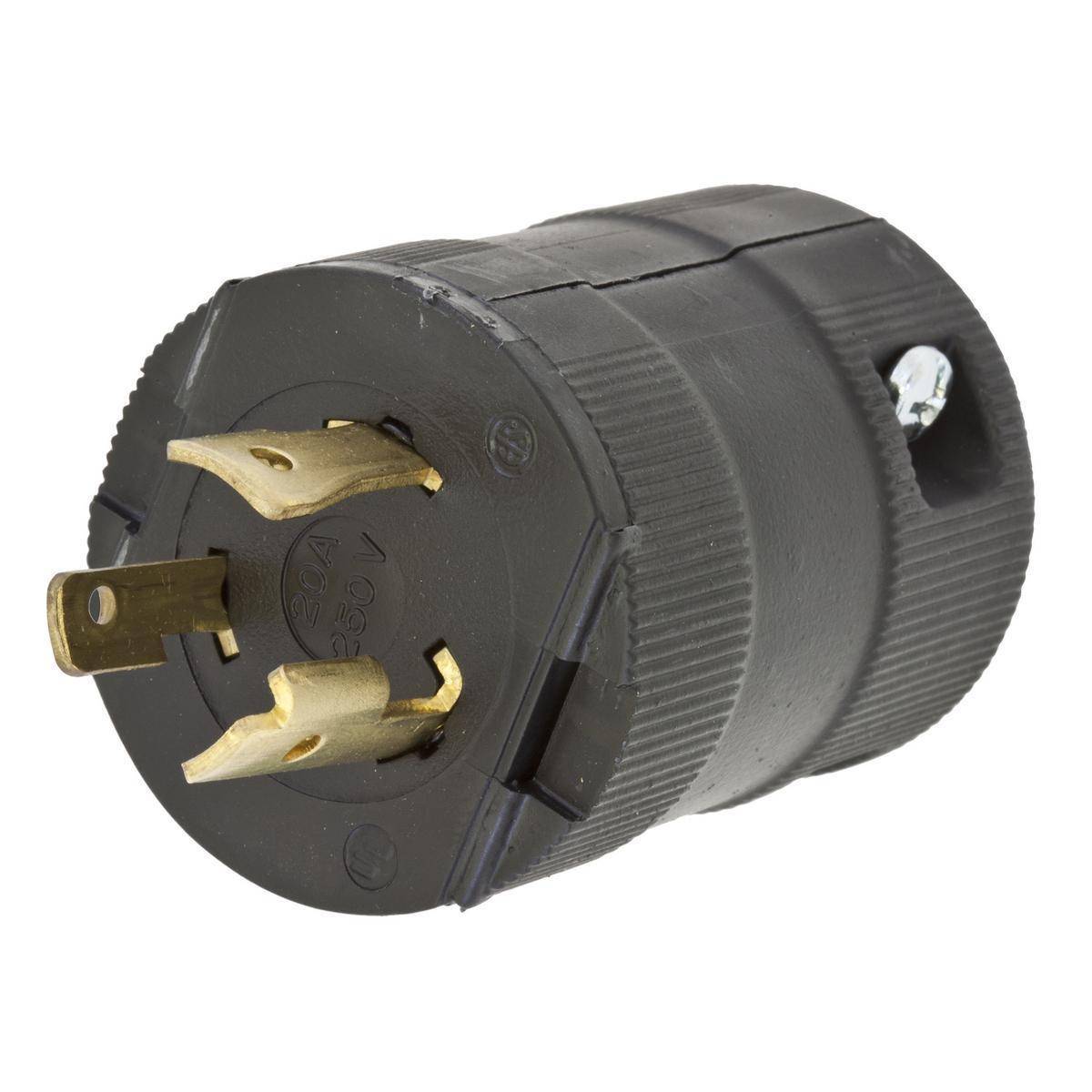

Wiring Device-Kellems HBL2321VBK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2321VBK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2321VBK Locking Plug. Designed for industrial use, this durable, black male standard cord mount plug features a 250 VAC, 20 A capacity, and is perfect for 1-phase grounding applications. Experience safety and efficiency in your electrical setups!Enhanced by AI

Wiring Device-Kellems, HBL2321VBK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.78 x 1.78 x 2.5 in Dimensions

MFG #: HBL2321VBK

EECO #: HUHBL2321VBK

Brand: Wiring Device-Kellems
UPC #: 783585043043
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Power Connection and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
1.78 x 1.78 x 2.5
Horsepower
2
Amperage Rating
20
Features
  • 1-piece all black body design uses less fasteners for ease of assembly
  • Steel zinc plated multi-drive cord clamp, body holding screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Yellow nylon blade holder, noryl (polyphenylene oxide) cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw
  • #8-32 steel (green finish) ground screw
