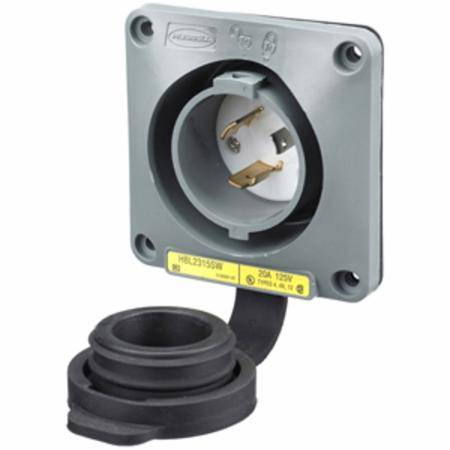

Print125 VAC 20 A L5-20P, Hubbell Incorporated HBL2315SW Twist-Lock®, Safety-Shroud® Locking Device Flanged Inlet
Short Description
125 VAC, 20 A, 2-Pole, 3-Wire, L5-20P, Grounding, Gray, PBT, Polarized, Locking Device Flanged Inlet
Locking Device Flanged Inlet; Type Polarized; Constructional Feature Impact/Moisture Resistant, Water Tight; Configuration L5-20P; Voltage Rating 125 Volt AC; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material PBT; Color Gray; Approval UL 498, CSA C22.2; Overall Dimension 3.75 Inch Width x 2.28 Inch Depth x 3.75 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating 4/4X/12/IP66; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL2315SW
EECO #: HUHBL2315SW
Brand:
Wiring Device-Kellems
UPC #:
783585231068
