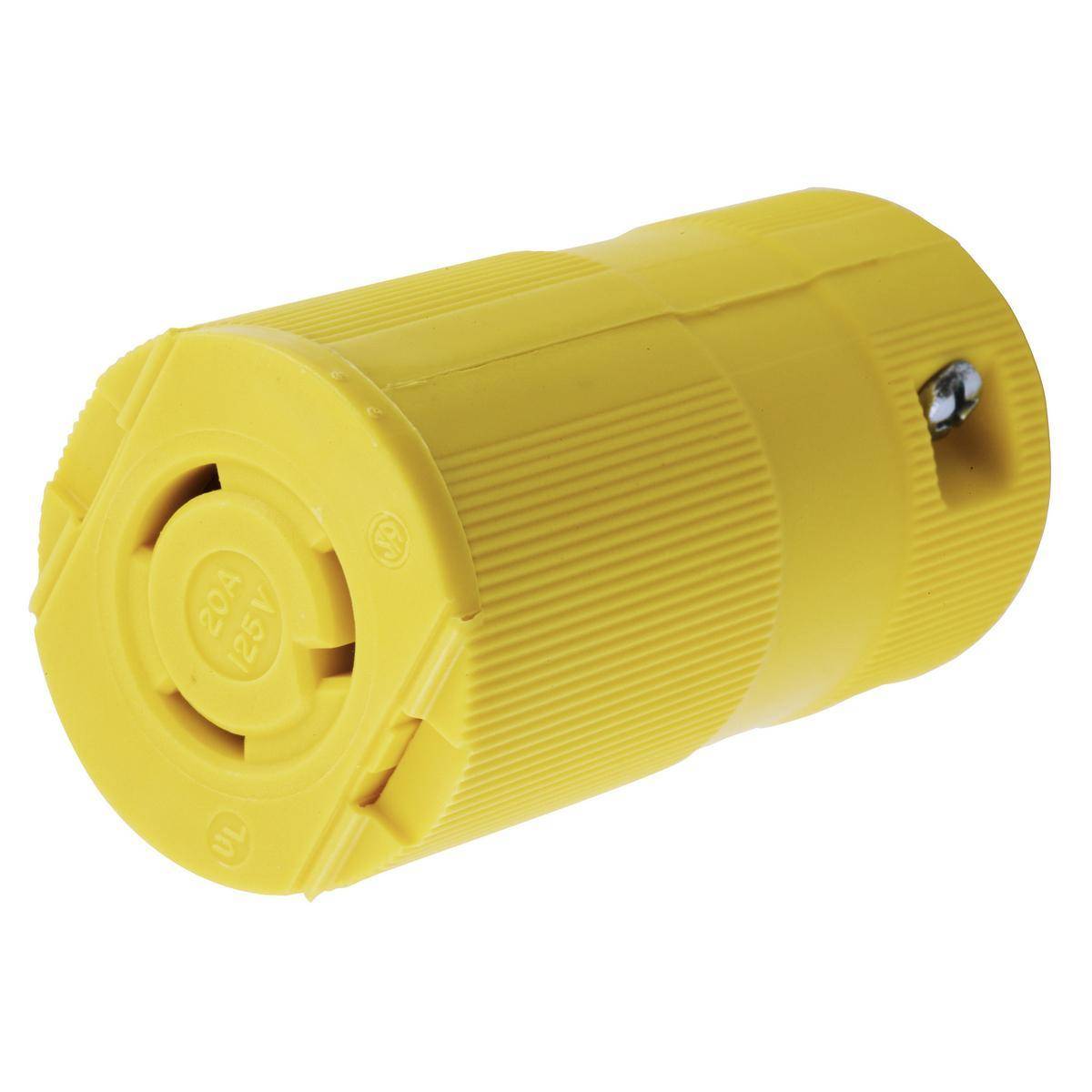

Wiring Device-Kellems HBL2313VY Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2313VY Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Upgrade your electrical connections with the Wiring Device-Kellems HBL2313VY Heavy Duty Isolated Grounding Female Connector. Designed for durability and efficiency, this industrial-grade connector ensures reliable performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL2313VY, Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R/WD1/WD5 NEMA Rating, Industrial Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 1.81 x 1.81 x 3.5 in Dimensions

MFG #: HBL2313VY

EECO #: HUHBL2313VY

Brand: Wiring Device-Kellems
UPC #: 783585235561
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Isolated Grounding Standard Sized Cord Mount
Grade
Industrial
Dimensions
1.81 x 1.81 x 3.5
Horsepower
1
Amperage Rating
20
Features
  • Powerful cord grips prevents conductor slippage and strain on wiring terminals
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 20 A, 12 AWG terminal accommodation
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 12 to 10 AWG conductor
  • Totally insulated impact and crush resistant nylon body
  • Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Natural (white) nylon cord clamp, cold rolled steel nickel plated terminal retainer
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw, #8-32 steel (green finish) ground screw
  • Steel zinc plate cord clamp, brass contact spring and ground contact
