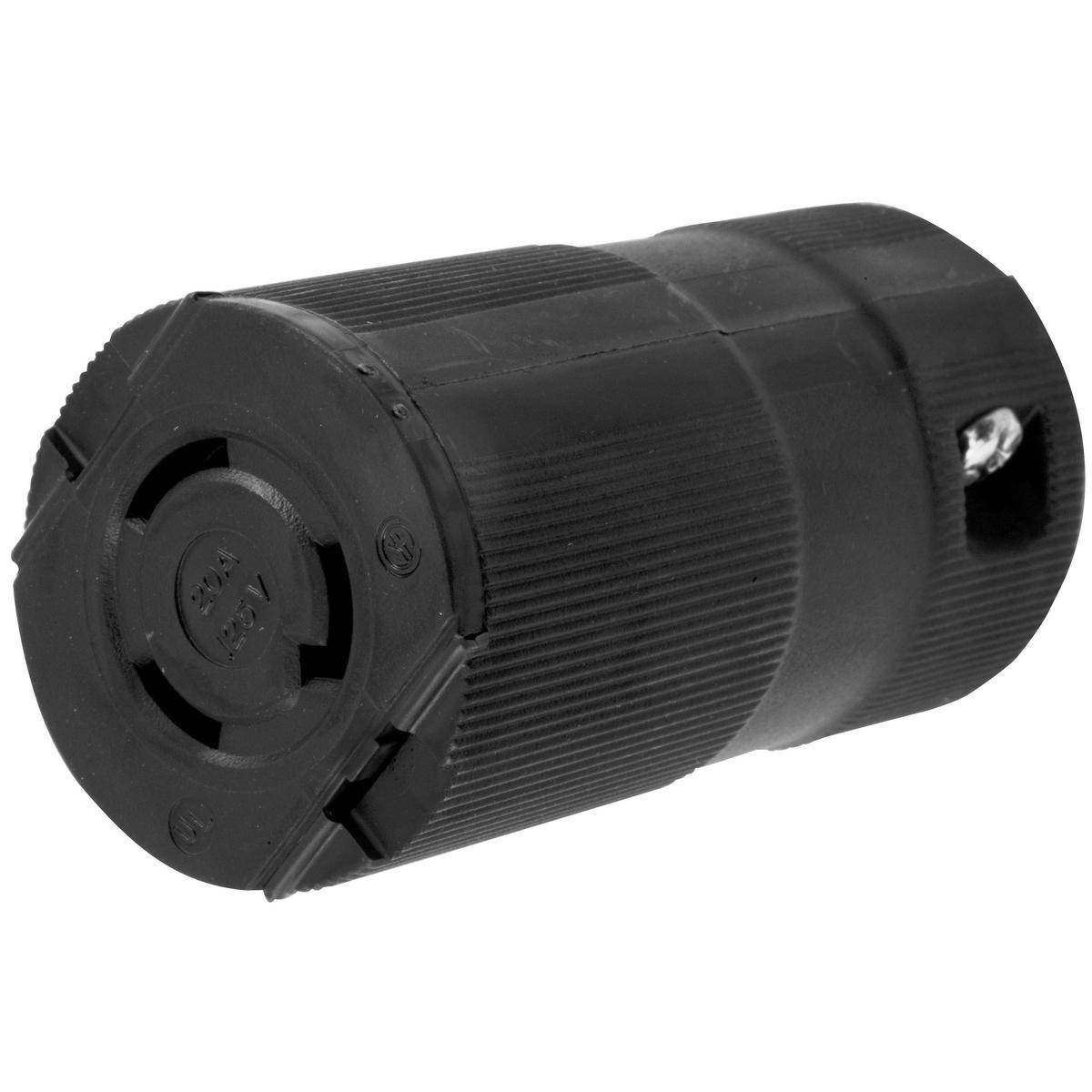

Wiring Device-Kellems HBL2313VBK Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2313VBK Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Experience reliable performance with the Wiring Device-Kellems HBL2313VBK Heavy Duty Isolated Grounding Female Connector. Designed for industrial applications, this robust connector ensures safe and efficient power delivery with its durable construction and versatile compatibility.Enhanced by AI

Wiring Device-Kellems, HBL2313VBK, Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R/WD1/WD5 NEMA Rating, Industrial Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 1.81 x 1.81 x 3.5 in Dimensions

MFG #: HBL2313VBK

EECO #: HUHBL2313VBK

Brand: Wiring Device-Kellems
UPC #: 783585043029
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Isolated Grounding Standard Sized Cord Mount
Grade
Industrial
Dimensions
1.81 x 1.81 x 3.5
Horsepower
1
Amperage Rating
20
Features
  • Powerful cord grips prevents conductor slippage and strain on wiring terminals
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 20 A, 12 AWG terminal accommodation
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 12 to 10 AWG conductor
  • Totally insulated impact and crush resistant nylon body
  • Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Natural (white) nylon cord clamp, cold rolled steel nickel plated terminal retainer
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw, #8-32 steel (green finish) ground screw
  • Steel zinc plate cord clamp, brass contact spring and ground contact
