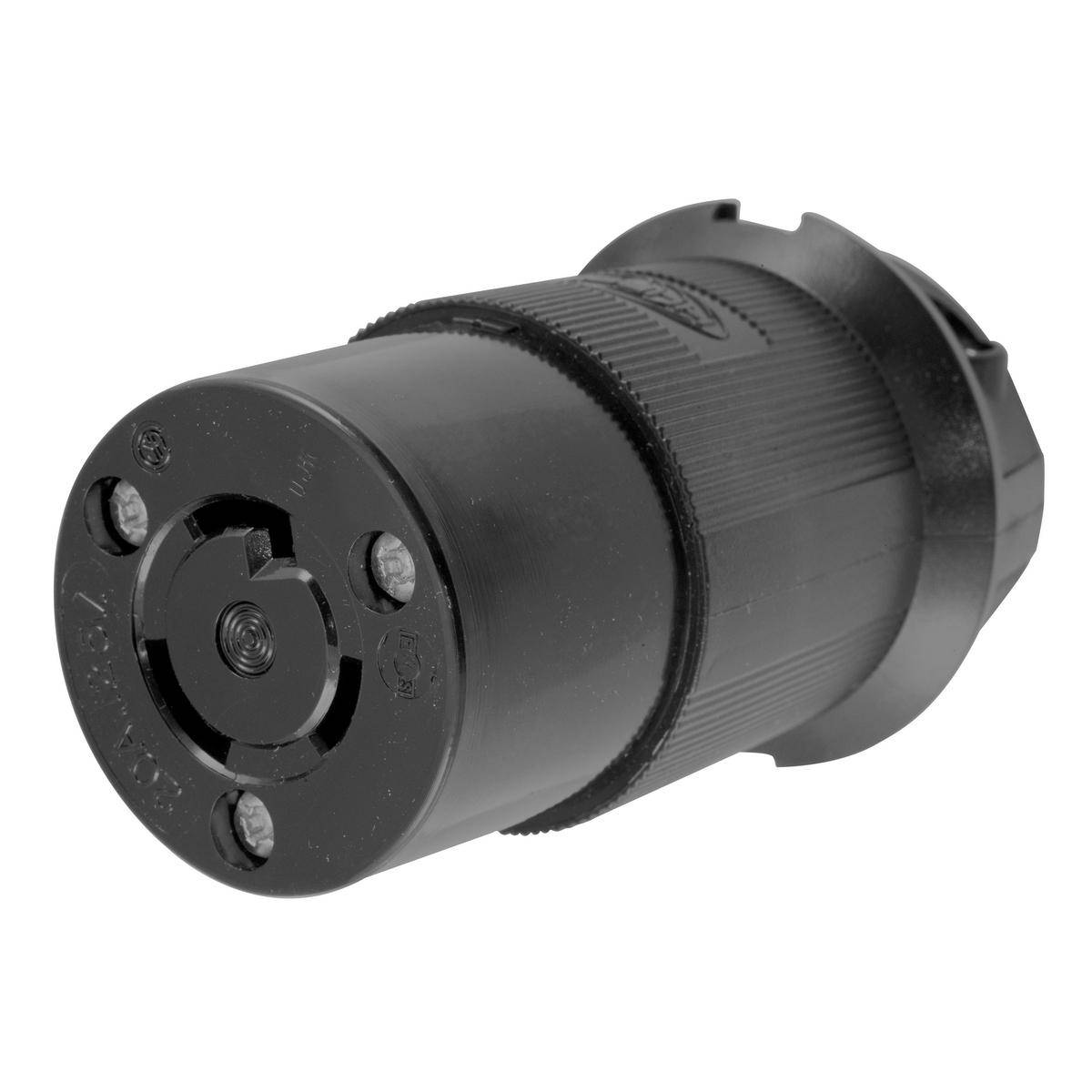

Wiring Device-Kellems HBL2313BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2313BK Heavy Duty Female Grounding Insulated Standard Cord Mount Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Experience reliable and secure connections with the Wiring Device-Kellems HBL2313BK Heavy Duty Female Grounding Insulated Locking Connector. Designed for industrial use, this durable connector supports 125 VAC and 20 A, ensuring optimal performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL2313BK, Locking Connector, Heavy Duty Female Grounding Insulated Standard Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.26 x 2.26 x 3.86 in Dimensions

MFG #: HBL2313BK

EECO #: HUHBL2313BK

Brand: Wiring Device-Kellems
UPC #: 783585172194
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Dry Locations and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
NEMA 4X/12/IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Female Grounding Insulated Standard Cord Mount
Grade
Industrial
Dimensions
2.26 x 2.26 x 3.86
Horsepower
1
Amperage Rating
20
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Black nylon contact nose and cord clamp, clear polycarbonate terminal retainer
  • 0.08 in steel nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw
  • Natural white nylon body contact carrier
  • Brass contact spring and spring binding plate
  • 0.031 in brass ground contact
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Withstands 2000 VAC minimum dielectric voltage
  • 20 A, 12 AWG terminal accommodation
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 14 to 12 AWG conductor
