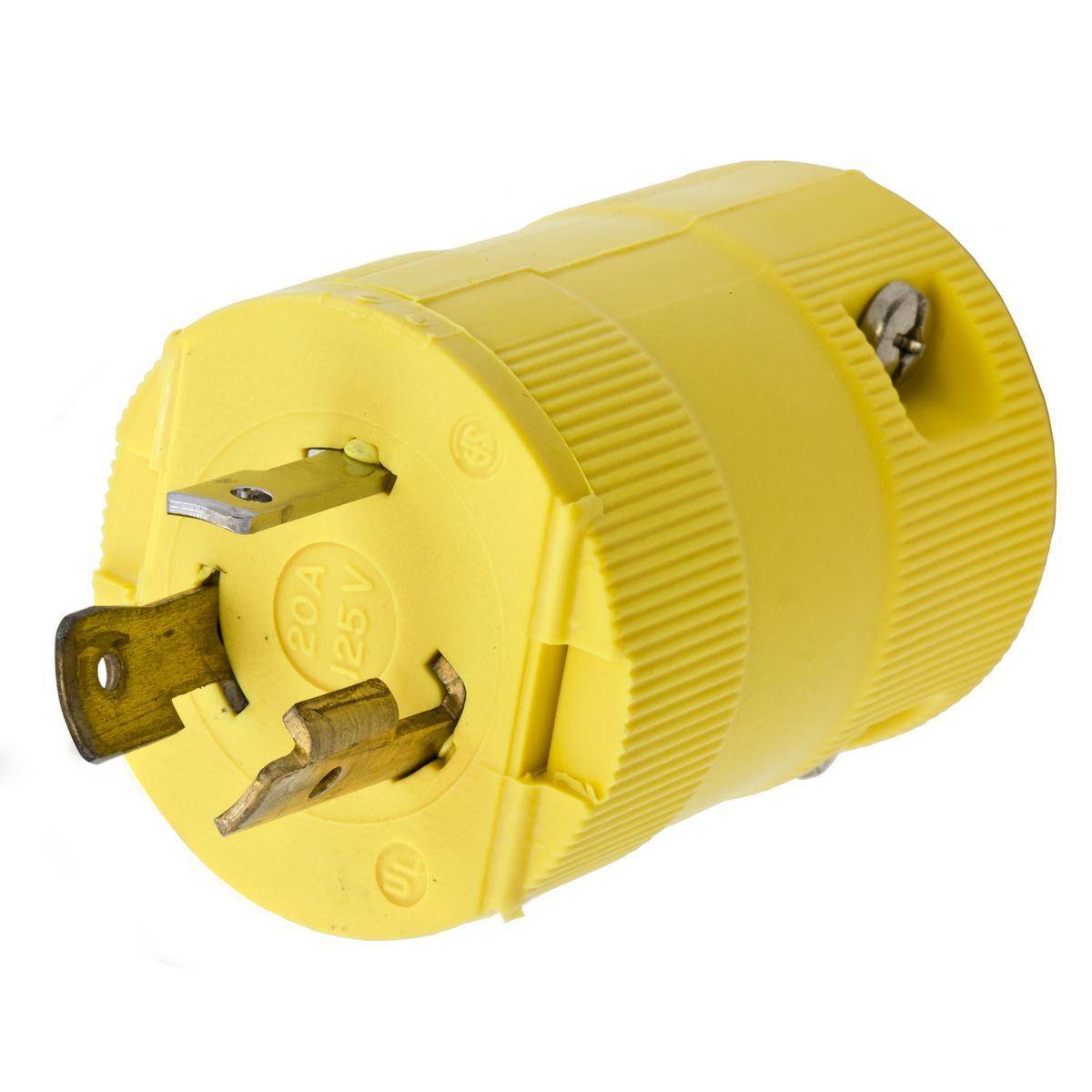

Wiring Device-Kellems HBL2311VY 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2311VY 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Power up your projects with the Wiring Device-Kellems HBL2311VY Locking Plug! This durable, industrial-grade plug is designed for secure connections, featuring a 1-phase grounding male standard cord mount and a bright yellow color for easy visibility. With a NEMA rating of L5-20P and capable of handling 125 VAC and 20 A, it’s perfect for a variety of applications. Ensure safety and reliability with this essential wiring device!Enhanced by AI

Wiring Device-Kellems, HBL2311VY, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.78 x 1.78 x 2.5 in Dimensions

MFG #: HBL2311VY

EECO #: HUHBL2311VY

Brand: Wiring Device-Kellems
UPC #: 783585235530
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Application
Power Connection and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
1.78 x 1.78 x 2.5
Horsepower
1
Amperage Rating
20
Features
  • 1-piece all black body design uses less fasteners for ease of assembly
  • Steel zinc plated body holding, cord clamp screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Yellow nylon blade holder, noryl (polyphenylene oxide) cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw
  • #8-32 steel (green finish) ground screw
