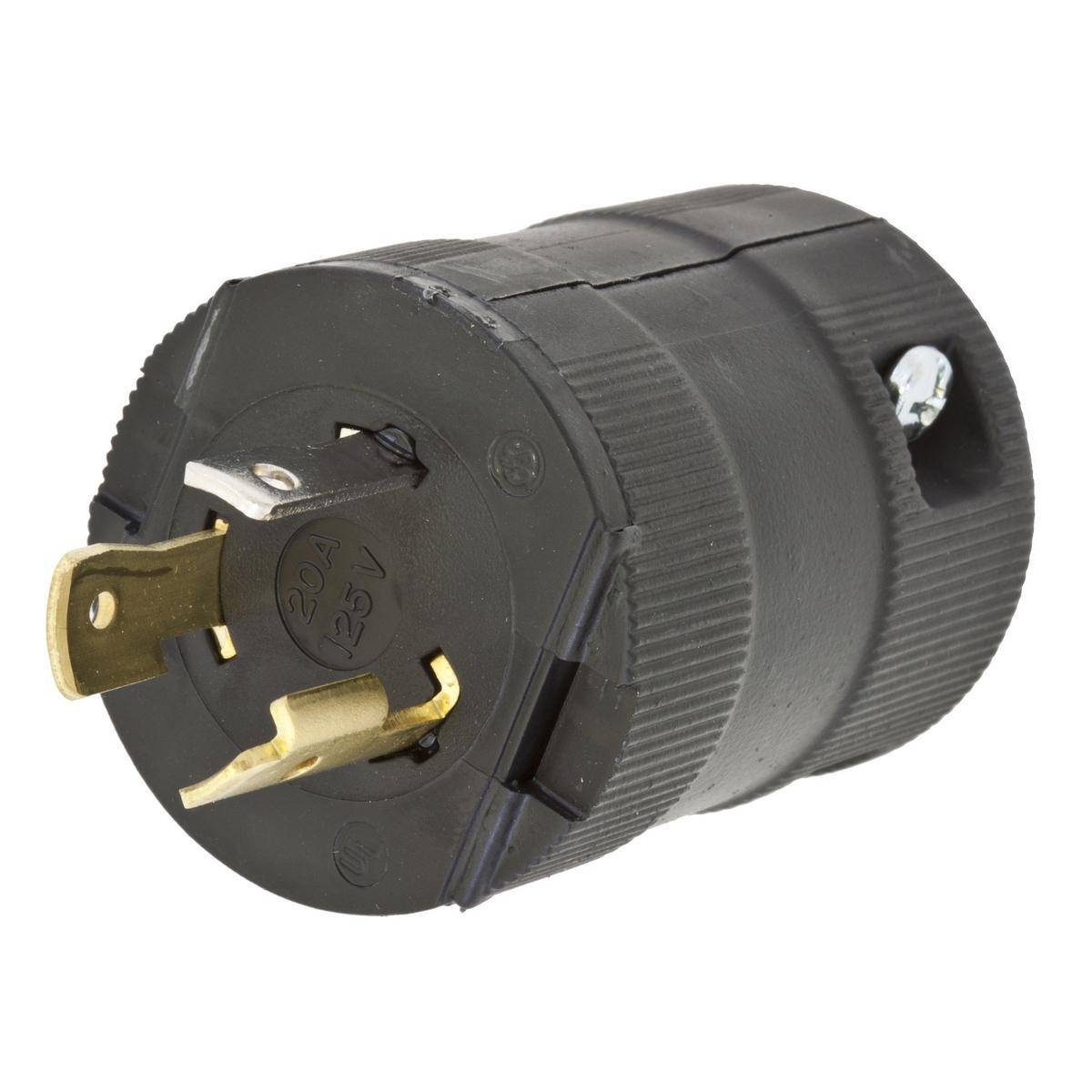

Wiring Device-Kellems HBL2311VBK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2311VBK 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2311VBK Locking Plug. Designed for industrial use, this durable and efficient 1-Phase Grounding Male Standard Cord Mount Plug is perfect for your heavy-duty applications. With a NEMA rating of L5-20P and capable of handling 125 VAC and 20 A, it’s built to perform in challenging environments.Enhanced by AI

Wiring Device-Kellems, HBL2311VBK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.375 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.78 x 1.78 x 2.5 in Dimensions

MFG #: HBL2311VBK

EECO #: HUHBL2311VBK

Brand: Wiring Device-Kellems
UPC #: 783585043005
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Power Connection and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
1.78 x 1.78 x 2.5
Horsepower
1
Amperage Rating
20
Features
  • 1-piece all black body design uses less fasteners for ease of assembly
  • Steel zinc plated body holding, cord clamp screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Black nylon blade holder, natural (white) nylon cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw
  • #8-32 steel (green finish) ground screw
