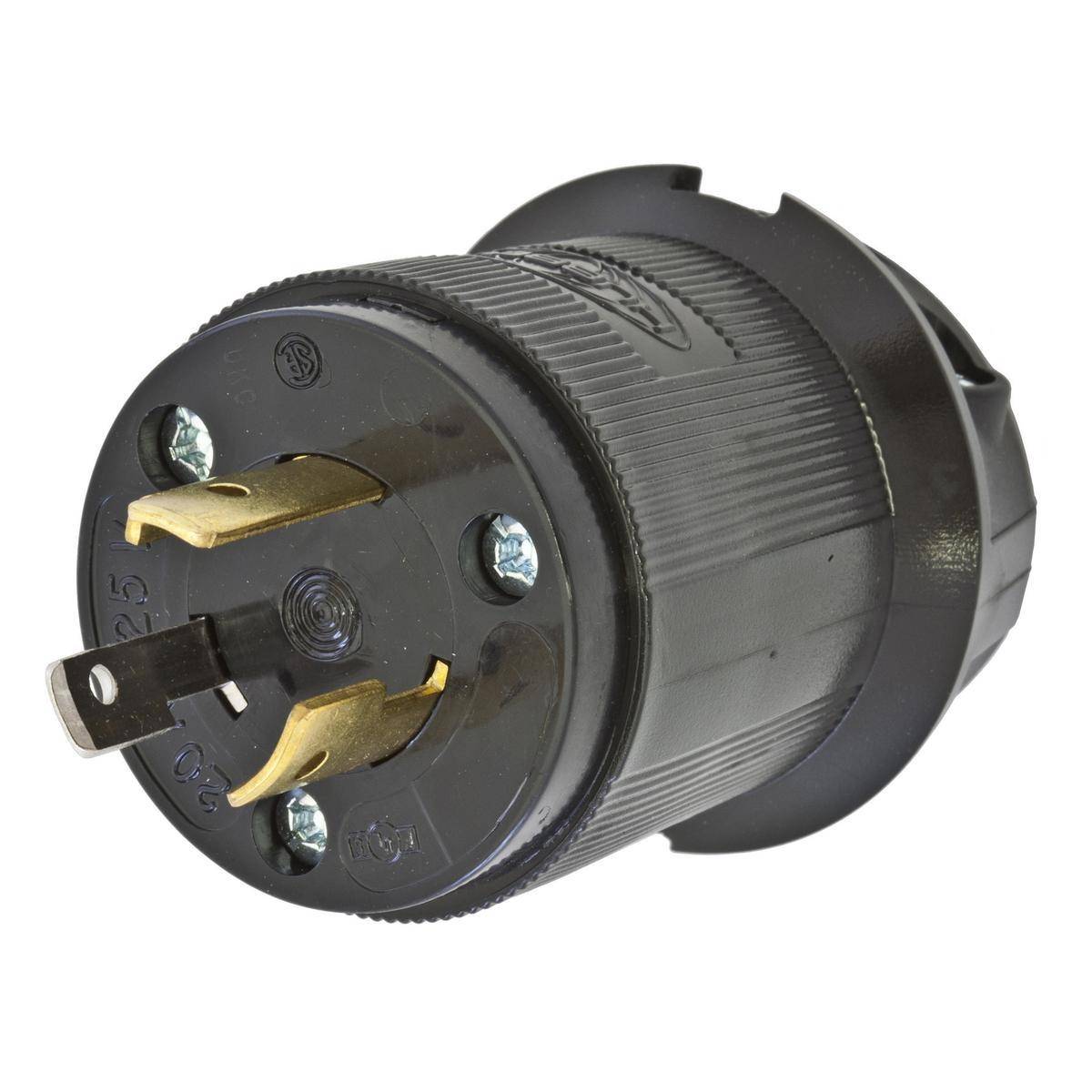

Wiring Device-Kellems HBL2311BK HBL® 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2311BK HBL® 1-Phase Grounding Male Standard Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.

Wiring Device-Kellems, HBL2311BK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, Series: HBL®, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.26 x 2.26 x 2.75 in Dimensions
MFG #: HBL2311BK

EECO #: HUHBL2311BK

Brand: Wiring Device-Kellems
UPC #: 783585172187
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Power Connection and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Series
HBL®
Includes
(2) Terminal Clamps
Dimensions
2.26 x 2.26 x 2.75
Horsepower
1
Amperage Rating
20
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Steel, zinc plated multi-drive cord clamp, body holding screw
  • Molded in or stamped on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Black nylon blade holder, cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in steel nickel plated terminal clamp
  • #10-32 brass (white finish on neutral screw when used) multiple drive terminal screw
