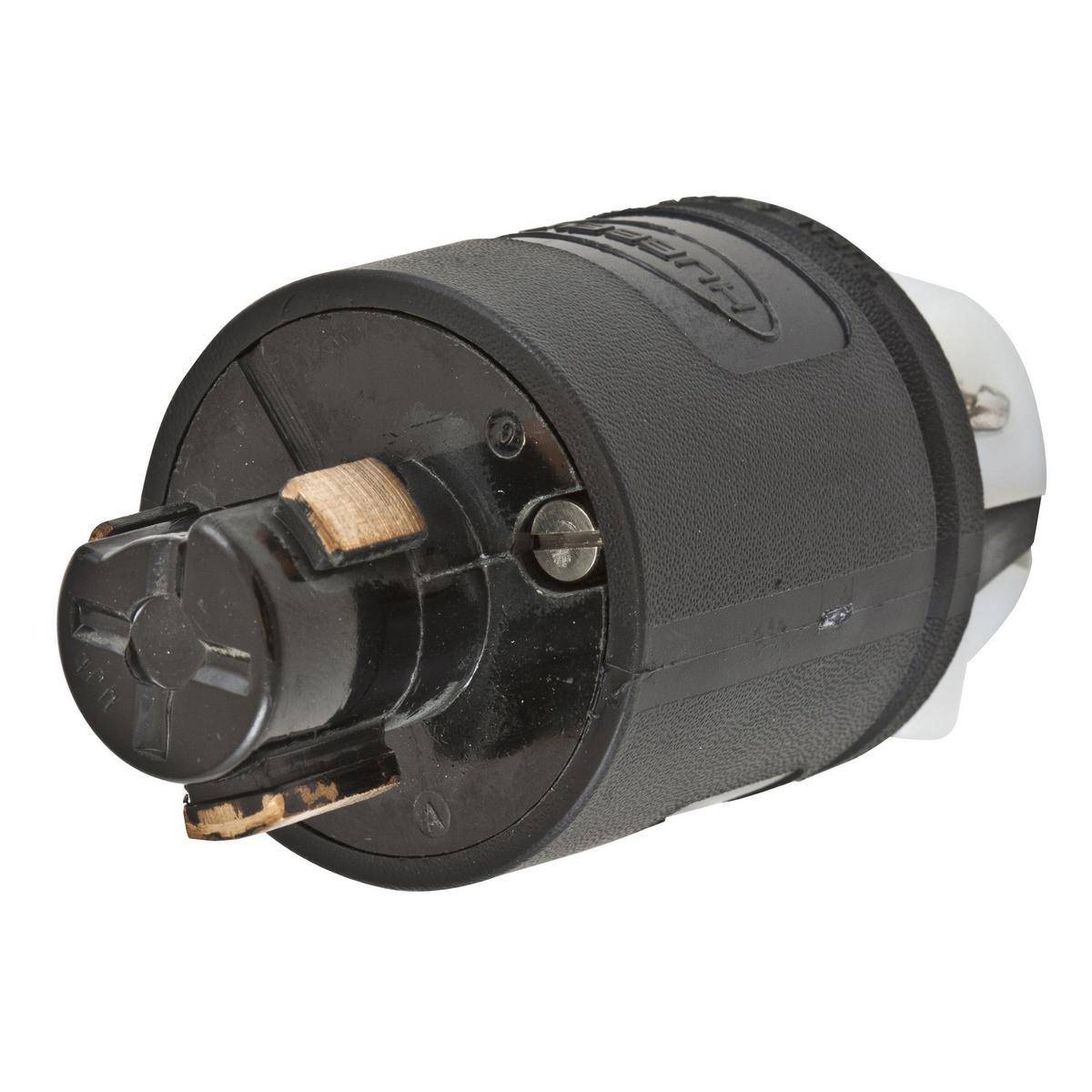

Wiring Device-Kellems HBL23005GB HBL® 1-Phase Heavy Duty Grounding Cord Mount Locking Plug, 480/125 VAC/250 VDC, 20 A, 2 Poles, 3 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL23005GB HBL® 1-Phase Heavy Duty Grounding Cord Mount Locking Plug, 480/125 VAC/250 VDC, 20 A, 2 Poles, 3 Wires, Black/White

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL23005GB Locking Plug. Designed for heavy-duty use, this industrial-grade plug is perfect for demanding environments, offering robust performance and safety features.Enhanced by AI

Wiring Device-Kellems, HBL23005GB, Locking Plug, 1-Phase Heavy Duty Grounding Cord Mount, Series: HBL®, 480/125 VAC/250 VDC, 20 A, 2 Pole, 3 Wires, Industrial Grade, IP30 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 1.72 x 2.31 x 3.22 in Dimensions

MFG #: HBL23005GB

EECO #: HUHBL23005GB

Brand: Wiring Device-Kellems
UPC #: 783585017389
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121402
Material
Nylon
Terminal Type
Pressure Screw
Voltage Rating
480/125 VAC/250 VDC
Number of Wires
3
Enclosure
IP30
Temperature Rating
-40 to 75
Type
1-Phase Heavy Duty Grounding Cord Mount
Grade
Industrial
Series
HBL®
Dimensions
1.72 x 2.31 x 3.22
Amperage Rating
20
Features
  • 20 A at 125 VAC, 10 A at 250 VDC/480 VAC multi rating
  • Indoor dry unless protected by additional means
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
  • 3-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Brass blade, terminal clamp, terminal screw, ground screw
  • Steel, zinc plated cord clamp screw, body holding screw
  • 14 to 10 AWG wire
  • Withstands 2000 VAC minimum dielectric voltage
  • Auto ejects improperly made connection
  • Non-NEMA rating
  • 12 AWG terminal accommodation
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • Natural white nylon cord clamp and black thermoset blade holder material
  • #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
