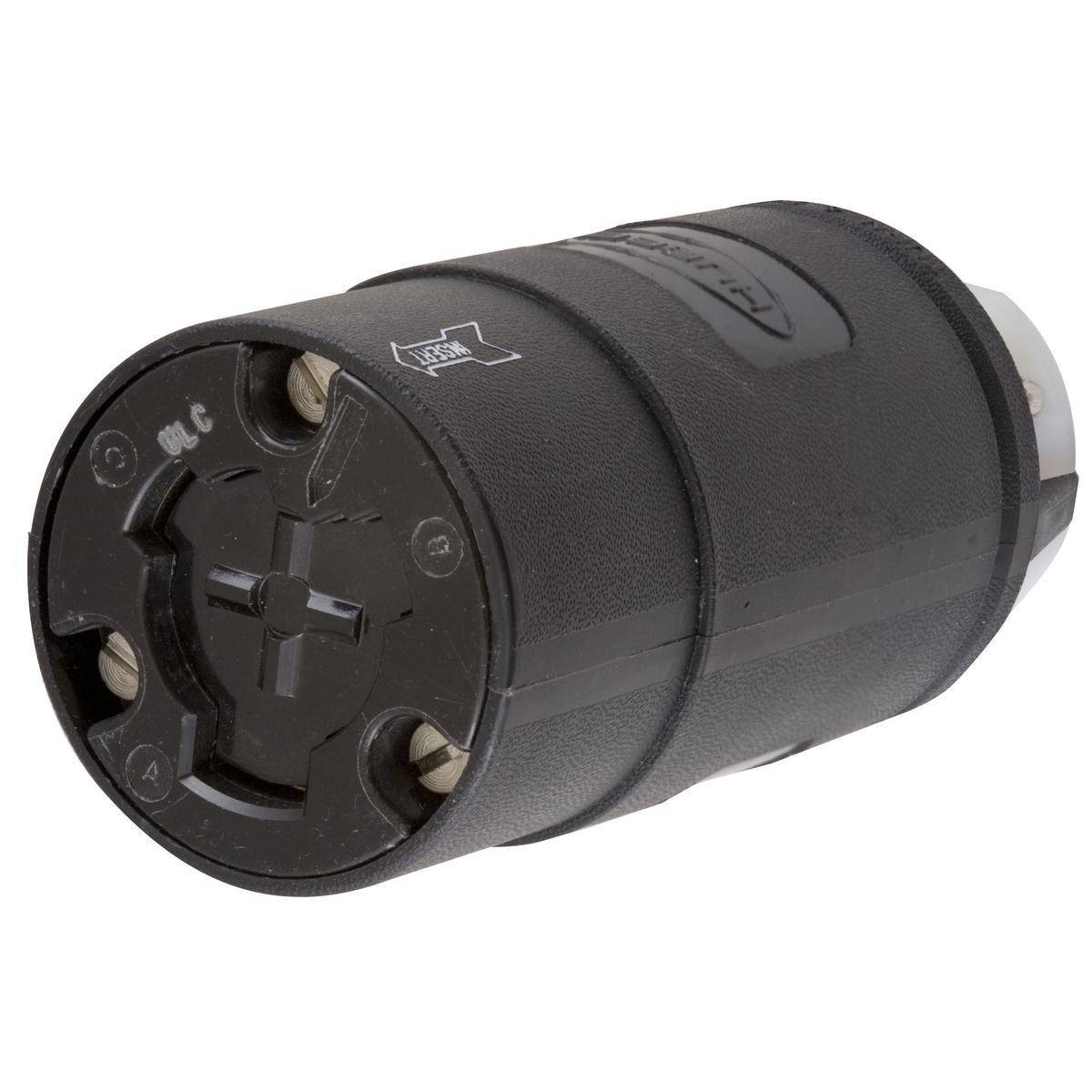

Wiring Device-Kellems Hubbellock® HBL23002GB Grounding Heavy Duty Cord Mount Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Hubbellock® HBL23002GB Grounding Heavy Duty Cord Mount Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Hubbellock® HBL23002GB Grounding Heavy Duty Cord Mount Locking Connector. Designed for industrial use, this robust connector supports 125 VAC and 20 A, making it perfect for demanding environments.Enhanced by AI

Wiring Device-Kellems Hubbellock® Locking Connector, Grounding Heavy Duty Cord Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, Industrial Grade, IP30 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 1.63 x 1.72 x 3.56 in

MFG #: HBL23002GB

EECO #: HUHBL23002GB

Brand: Wiring Device-Kellems
UPC #: 783585017402
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Composite
Terminal Type
Pressure Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP30
Temperature Rating
-40 to 75
Type
Grounding Heavy Duty Cord Mount
Grade
Industrial
Dimensions
1.63 x 1.72 x 3.56
Amperage Rating
20
Features
  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Natural white nylon cord clamp material
  • Brass terminal clamp, terminal screw, ground screw
  • Steel zinc plated cord clamp screw, body holding screw
  • Bronze contact spring, ground contact
  • 20 A at 125 VAC, 10 A at 250 VDC/480 VAC multi rating
  • 20 A, 12 AWG, 30 A, 10 AWG terminal accommodation
  • Withstands 2000 VAC dielectric voltage
  • Non-NEMA rated
