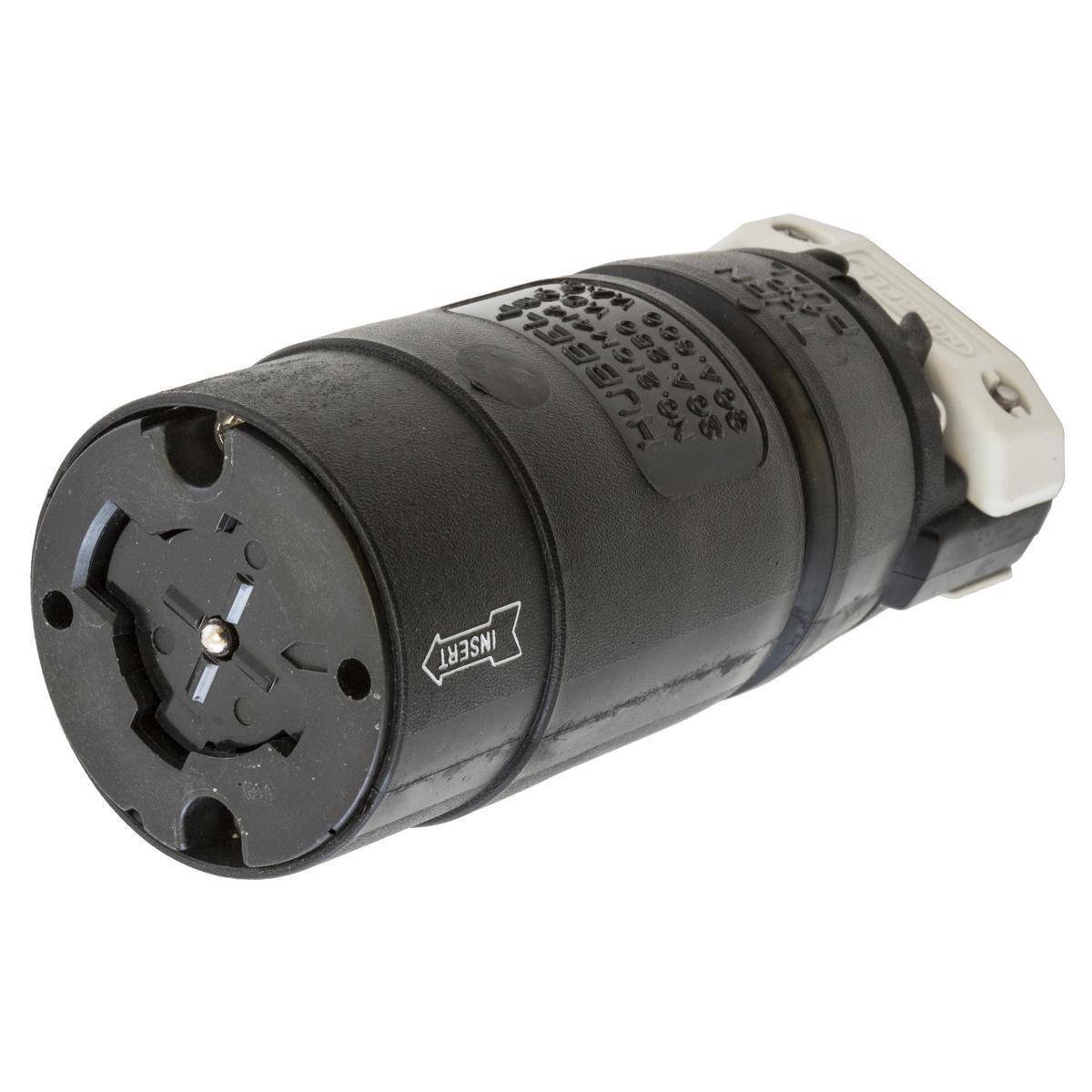

Wiring Device-Kellems Hubbellock® HBL21CM414B Grounding Non-Shrouded Cord Mount Corrosion Resistant Locking Connector, 600 VAC/250 VDC, 20/30 A, 3 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Hubbellock® HBL21CM414B Grounding Non-Shrouded Cord Mount Corrosion Resistant Locking Connector, 600 VAC/250 VDC, 20/30 A, 3 Poles, 3 Wires, Yellow

Short Description

Ensure reliable connections with the Wiring Device-Kellems Hubbellock® HBL21CM414B. Designed for durability, this corrosion-resistant locking connector is perfect for marine applications, supporting up to 600 VAC and 250 VDC. Experience safety and performance with its non-shrouded design and robust construction.Enhanced by AI

Wiring Device-Kellems Hubbellock® Locking Connector, Grounding Non-Shrouded Cord Mount Corrosion Resistant, 600 VAC/250 VDC, 20/30 A, 3 Pole, 3 Wires, Marine Grade, IP30 Enclosure, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 6 x 2.44 x 2.44 in

MFG #: HBL21CM414B

EECO #: HUHBL21CM414B

Brand: Wiring Device-Kellems
UPC #: 783585017570
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Terminal Type
Pressure Screw
Voltage Rating
600 VAC/250 VDC
Number of Wires
3
Enclosure
IP30
Temperature Rating
-40 to 75
Type
Grounding Non-Shrouded Cord Mount Corrosion Resistant
Grade
Marine
Dimensions
6 x 2.44 x 2.44
Amperage Rating
20/30
Features
  • Rynite (white) cord clamp
  • Zinc plated steel pressure screw terminal and ground screw
  • Stainless steel cord clamp screw and body holding screw
  • Black Rynite body contact carrier
  • 0.032 in bronze ground contact and contact spring
  • Molded in/stamped on ratings
  • Permanently ink marked on product catalog number
  • Withstand 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Round portable service cords of diameters commensurate with the device rating
  • 20 A 12 AWG and 30 A 10 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Chem/marine style
