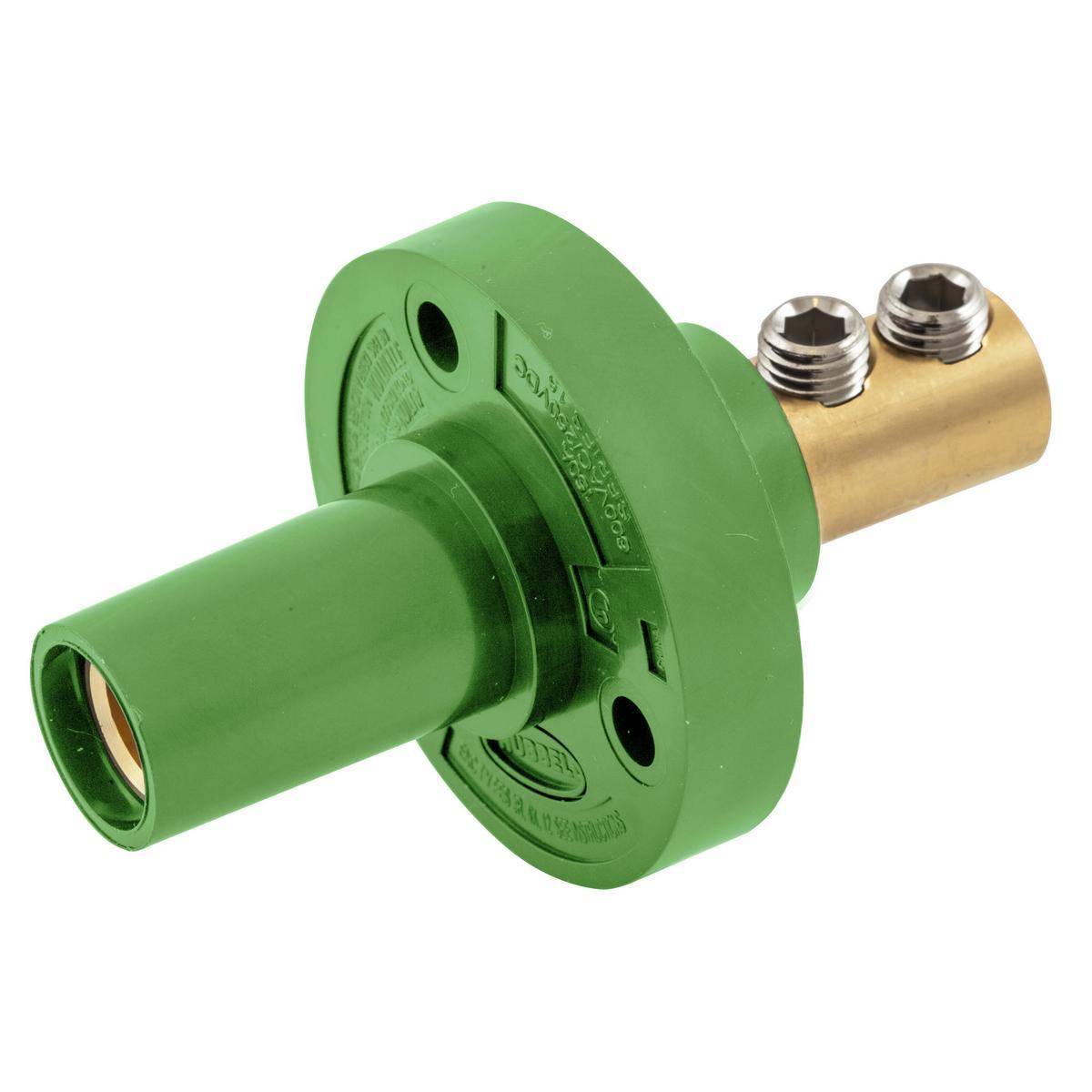

Wiring Device-Kellems HBL15FRGN 15 Series 1-Pole Extra Heavy Duty Female Standard Single Pole Receptacle With 4 AWG SC/PPC Cord, 600 VAC/250 VDC, 150 A, 4 AWG Wire, Double Set Screw Connection
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL15FRGN 15 Series 1-Pole Extra Heavy Duty Female Standard Single Pole Receptacle With 4 AWG SC/PPC Cord, 600 VAC/250 VDC, 150 A, 4 AWG Wire, Double Set Screw Connection

Short Description

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, series 16 single pole receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Wiring Device-Kellems Single Pole Receptacle, 1-Pole Extra Heavy Duty Female Standard, Series: 15 Series, 600 VAC/250 VDC, 150 A, 4 AWG Wire, Double Set Screw Connection, Brass Contact, Thermoplastic Housing Material, Panel/Stud Mounting, Specifications: 1 ph, 1-Pin, 90000 W, 90 deg C, Green, 1.86 in Dia x 2.95 in L
MFG #: HBL15FRGN

EECO #: HUHBL15FRGN

Brand: Wiring Device-Kellems
UPC #: 783585458212
Attributes
Features
Documents
Product Information
Attributes
Color
Green
UNSPSC
39121406
Wire Size
4
Application
Dry Locations, Industrial and Indoor Applications
Mounting Type
Panel/Stud
Voltage Rating
600 VAC/250 VDC
Connection Type
Double Set Screw
Housing Material
Thermoplastic
Temperature Rating
90
Type
1-Pole Extra Heavy Duty Female Standard
Series
15 Series
Dimensions
1.86 in Dia x 2.95 in L
Specifications
1 ph, 1-Pin, 90000 W
Amperage Rating
150
Contact Material
Brass
Features
  • Insulgrip® style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
  • Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
  • Rounded corners reduce the possibility of catching or snagging on structures or equipment
  • Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
  • Recessed mounting screw minimizes screwdriver slippage
  • Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
  • With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
  • Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
  • Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
  • Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
  • Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
  • Indoor dry unless protected by additional means
