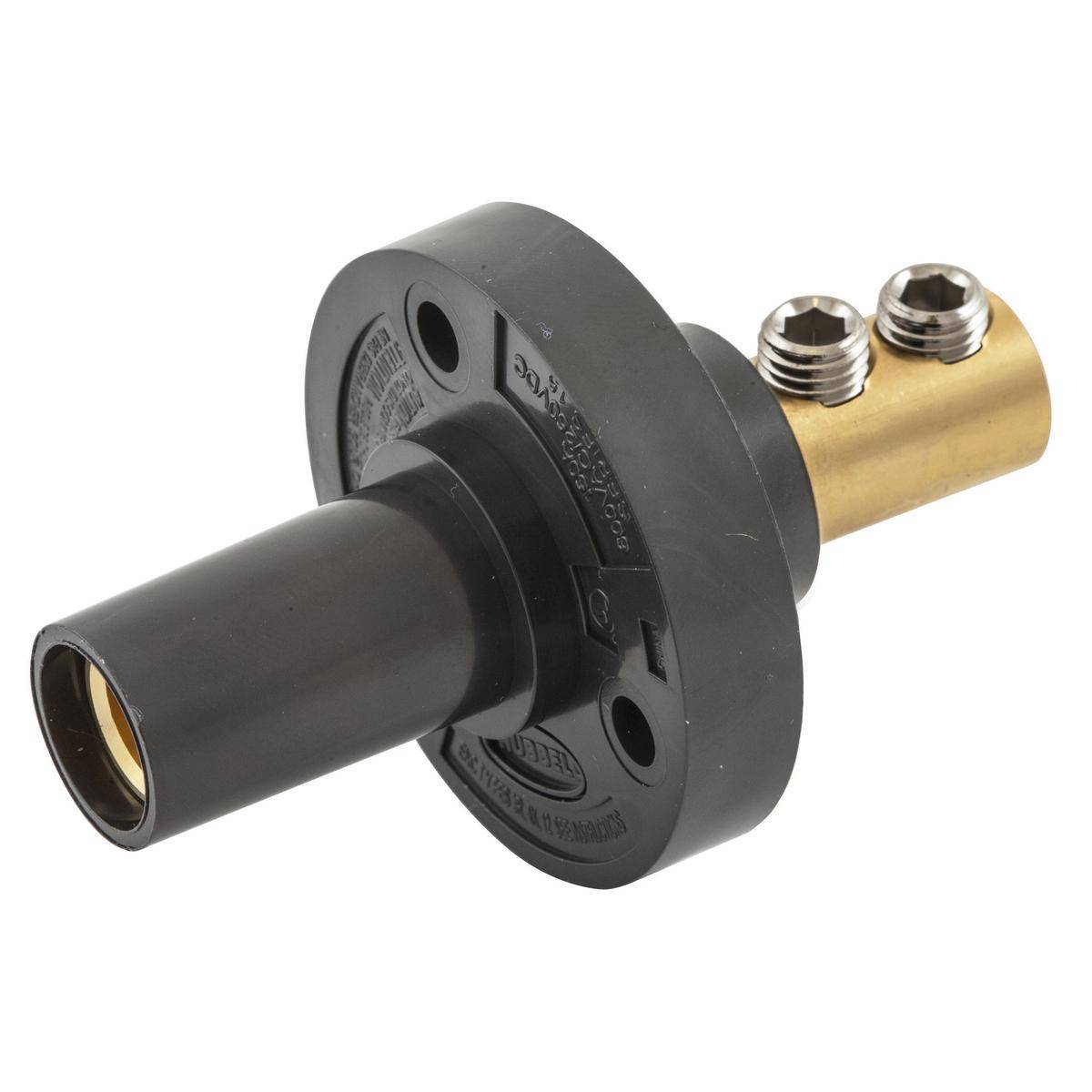

PrintBryant Electric Wiring Device-Kellems HBL15FRBK 15 Series Cam Type Standard Single Pole Receptacle, 600 VAC, 150 A, 8 to 2 AWG Wire, Female/Double Set Screw Connection, NEMA 3R/4X/12 NEMA Rating
Bryant Electric offers a complete line of high quality Series 15 and Series 16 cam type plugs, receptacles and accessories for the most demanding environments. The Bryant Electric cam type device line is rated for 600 VAC and 250 VDC up to 400 A and accepts cable sizes 8 to 4/0 AWG. Cam type devices are the right choice for supplying temporary electrical power distribution for convention centers, entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Bryant Electric cam type devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Cam Type Standard, Series: 15 Series, 600 VAC, 150 A, 8 to 2 AWG Wire, Female/Double Set Screw, Brass Contact, Brass/Thermoplastic Elastomer Housing, NEMA 3R/4X/12, Panel/Threaded Mount, 1-Phase, 1-Wire, 90000 W, 2000 V Dielectric Strength, -40 to 70 deg C, Black, 1.86 in Dia x 2.95 in LEECO #: HUHBL15FRBK
