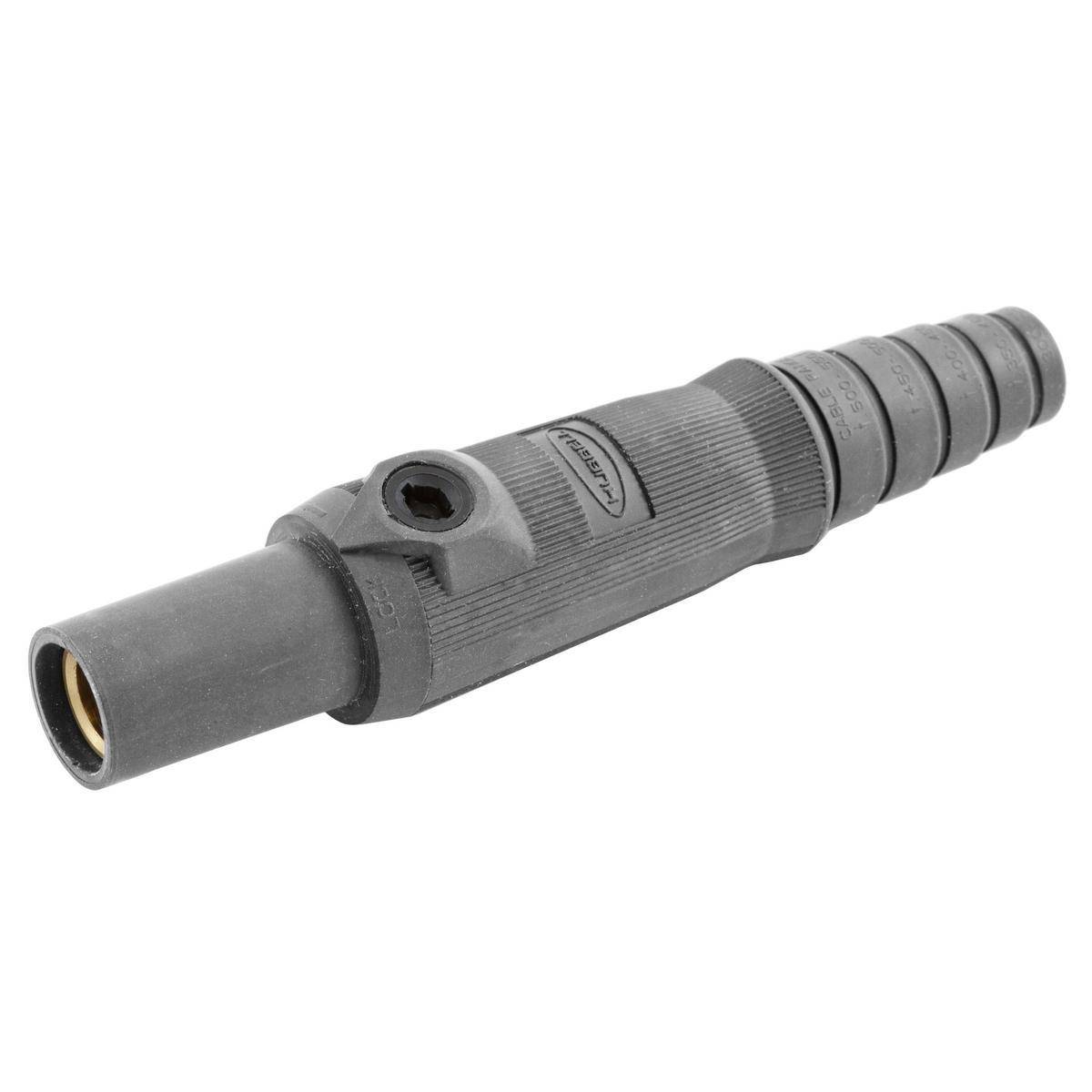

Bryant Electric HBL15FGY 15 Series Cam Type Inline Insulated Non-Metallic Single Pole Plug, 600 VAC/VDC, 250 VDC, 150 A, 8 to 2 AWG Wire, Female/Set Screw Connection, NEMA 3R/4X/12 NEMA Rating
Share Share Print Print
Hubbell

Bryant Electric HBL15FGY 15 Series Cam Type Inline Insulated Non-Metallic Single Pole Plug, 600 VAC/VDC, 250 VDC, 150 A, 8 to 2 AWG Wire, Female/Set Screw Connection, NEMA 3R/4X/12 NEMA Rating

Short Description

Bryant Electric offers a full line of innovative, high quality, Series 15 and Series 16 cam type in lines, receptacles and accessories for the most demanding environments. Cam type devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Cam type devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL Enclosure Types 3R, 4X and 12 Rating suitable for use in almost any environment.

Bryant Electric Single Pole Plug, Cam Type Inline Insulated Non-Metallic, Series: 15 Series, 600 VAC/VDC, 250 VDC, 150 A, 8 to 2 AWG Wire, Female/Set Screw Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4X/12 NEMA Rating, Cord Mounting, Specifications: 1-Conductor, Nylon Retaining Screw, -40 to 75 deg C, Gray, 4.6 in L x 1 in W Dimensions
MFG #: HBL15FGY

EECO #: HUHBL15FGY

Brand: Bryant Electric
UPC #: 783585539041
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121406
Wire Size
8 to 2
Application
Temporary Electrical Power, Dry Locations and Indoor Applications
Mounting Type
Cord
Voltage Rating
600 VAC/VDC, 250 VDC
Connection Type
Female/Set Screw
Housing Material
Thermoplastic Elastomer
Temperature Rating
-40 to 75
Type
Cam Type Inline Insulated Non-Metallic
Series
15 Series
Dimensions
4.6 in L x 1 in W
Specifications
1-Conductor, Nylon Retaining Screw
Amperage Rating
150
Contact Material
Brass
Features
  • Housing design - Insulgrip® style housing for superior gripping, conforms to the user's hand making it easy to connect and disconnect, even with gloves on
  • Easily identifiable cable, cut off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
  • Accommodates wide range of cables
  • Safety - rounded corners reduce the possibility of catching or snagging on structures or equipment
  • Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
  • Recessed mounting screw minimizes screwdriver slippage
  • Identification lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
  • With lock indicator symbol making mating clear and simple; devices can lock 180 deg to prevent unintended disconnects
  • Contacts - provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Assembly - special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
  • Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
  • Installation - engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
  • Strip gauge molded into every inline and receptacle housing; simplifies installation and saves time
